EKT ISD1700 Series Manual

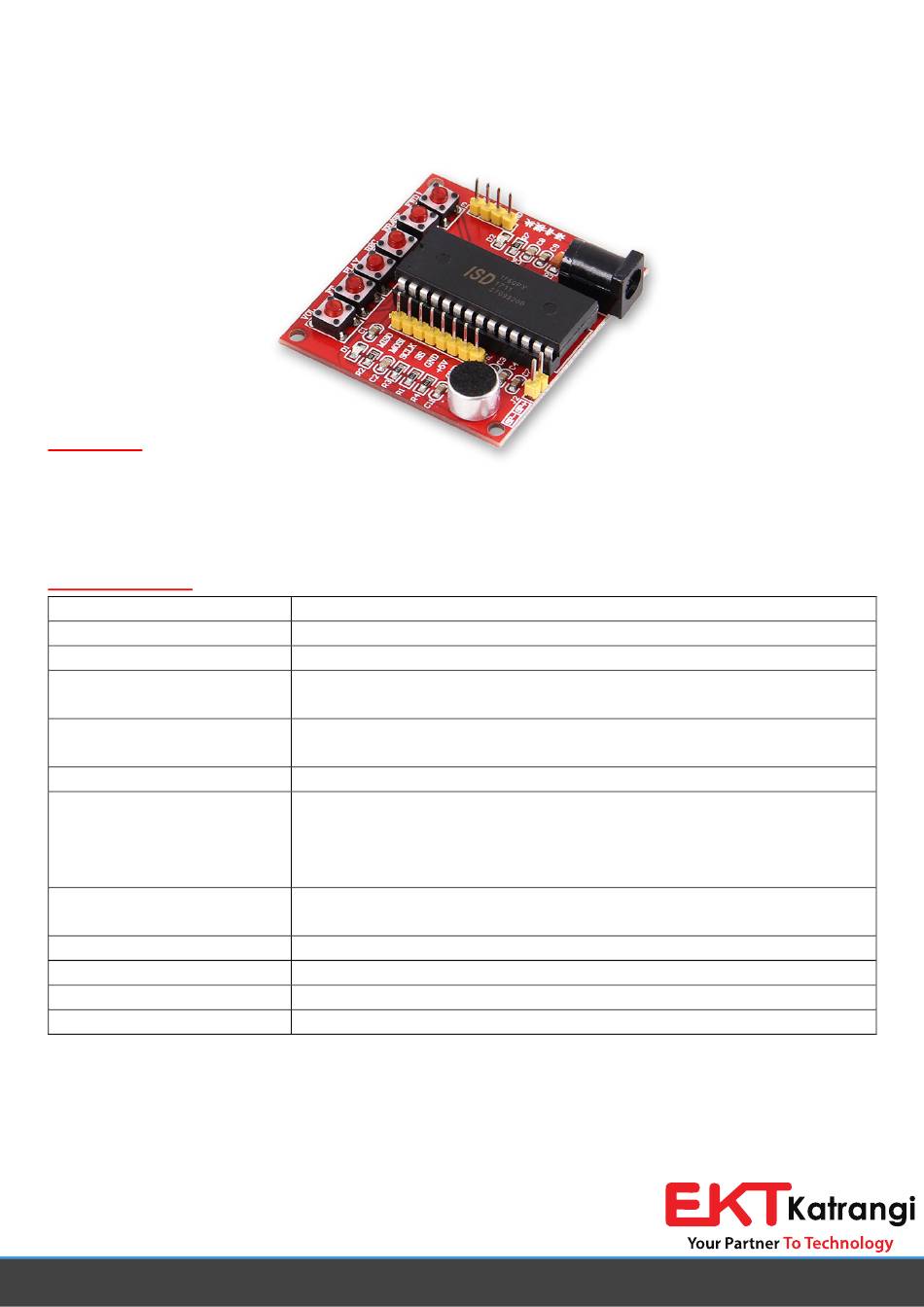

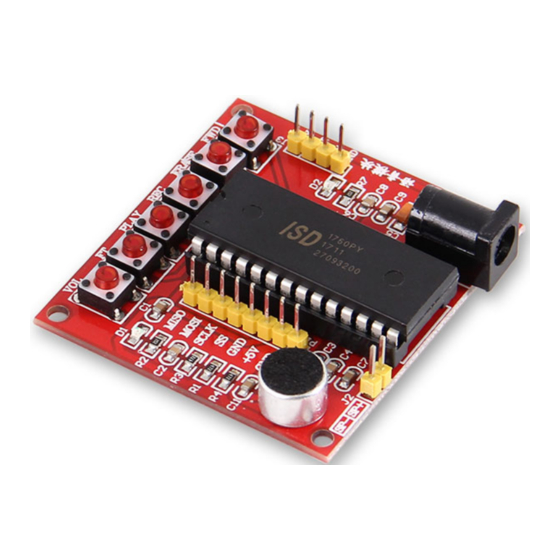

ISD1700 Series Voice Record Play ISD1760 Module
Features:
1. Power indicator light Ile, chip indicator lights.
2. Simple operation, no micro or other modules will be able to work directly.
3. Chip control pin already leads to facilitate control connection.
Specifications:
Operating Voltage
Record Time
Chip Operating Frequency
REC:
PLAY:
FWD:
DELETION:
RESET:
VOL:
FT:
Size
Weight:
Model:OKY3162
5 V
6 K at 75 seconds, 8 K for 60 seconds
6 KHZ and 8 KHZ optional
Press and hold the REC KEY while the LED lights up, MIC and talk to
the module to record sound.
press this button once, play this stream wil segment record, press and
hold, will play all record.
before you press this button, you will jump to this current segment.
press this button, it will delete the current segment record, if you
press the buttion and hold it for three seconds, all the customs mode
will flash (the indicator flashes twice), hold the button and flash the
indicator 7 times, the whole record will be clreared.
Prss this button, the whole segment of the game and the record will
jump to work.
press it once, it will decrease the 4dB voice.
Connect pin with T to GND and keep it at low level.
x
5 5.3 cm
22g
