DESCRIPTION
Voltage: 220-240V
Frequency:50/60Hz
Two heating power: 1100W/2200W
Quartz heating element
With thermostat protection
Tip-over switch protection
Outdoor use
ASSEMBLY
1. Carefully turn the appliance upside down to fit the castors.
2. Slide the wheel plate at the right position.
3. Secure the wheel plate by lightening the butterfly nut.
4. Put the appliance in the upright position.
5. Take out the cable from the cable bracket backside.
OPERATION
1. Switch the heater to one of the following power settings:
•
I – low heating power;
•
II – high heating power;
NOTE!
This device will cool slowly after the power is shut off. Allow the heater to cool prior to any
movement. The built-in carry handle should be used for easy movement.
When this device is overheated it is automatically turned off by a special security system. Unplug the
device and let it cool down before activating it again.

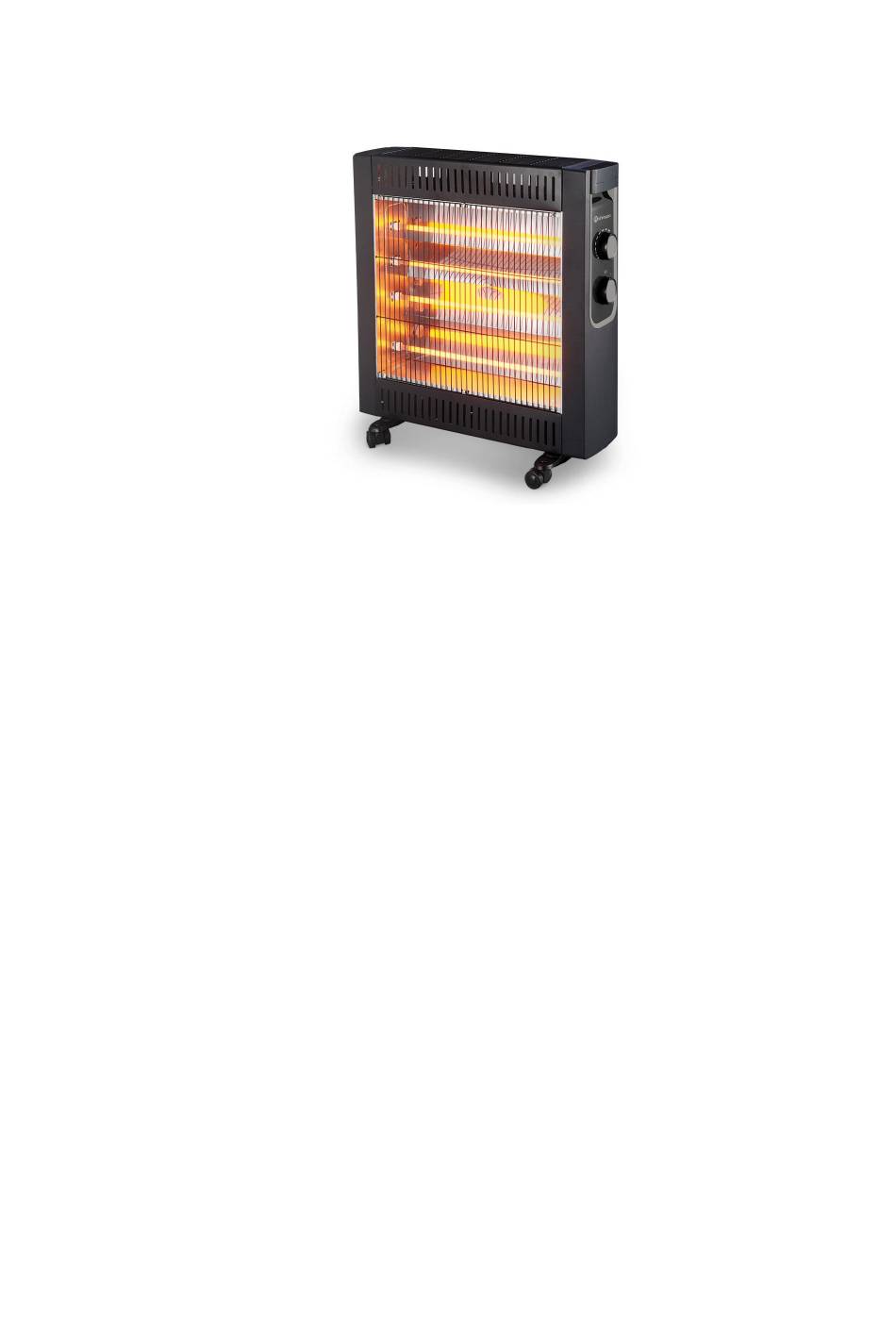

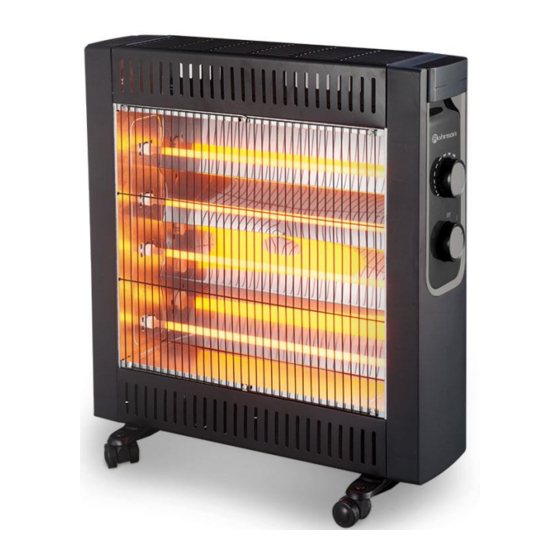

INSTRUCTION MANUAL
QUARTZ HEATER
MOD. R-8016
Advertisement
Table of Contents
Related Manuals for Vassilias R-8016
Summary of Contents for Vassilias R-8016
- Page 1 INSTRUCTION MANUAL QUARTZ HEATER MOD. R-8016 DESCRIPTION Voltage: 220-240V Frequency:50/60Hz Two heating power: 1100W/2200W Quartz heating element With thermostat protection Tip-over switch protection Outdoor use ASSEMBLY 1. Carefully turn the appliance upside down to fit the castors. 2. Slide the wheel plate at the right position.
- Page 2 2. Once you finished using the heater, turn the power switches to the “OFF” position, then unplug the main power supply. CLEANING 1. If not used for a long time, clean the heater’s surface and keep it in the original packing. Keep the heater in airy place and pay attention to avoid dampness.
- Page 3 18. When the heater which deposit in -20℃ severe cold place, must intensify it above -20℃ before using it, prevent material from changing the characteristic in the low temperature. 19. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
- Page 4 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
