USERS GUIDE

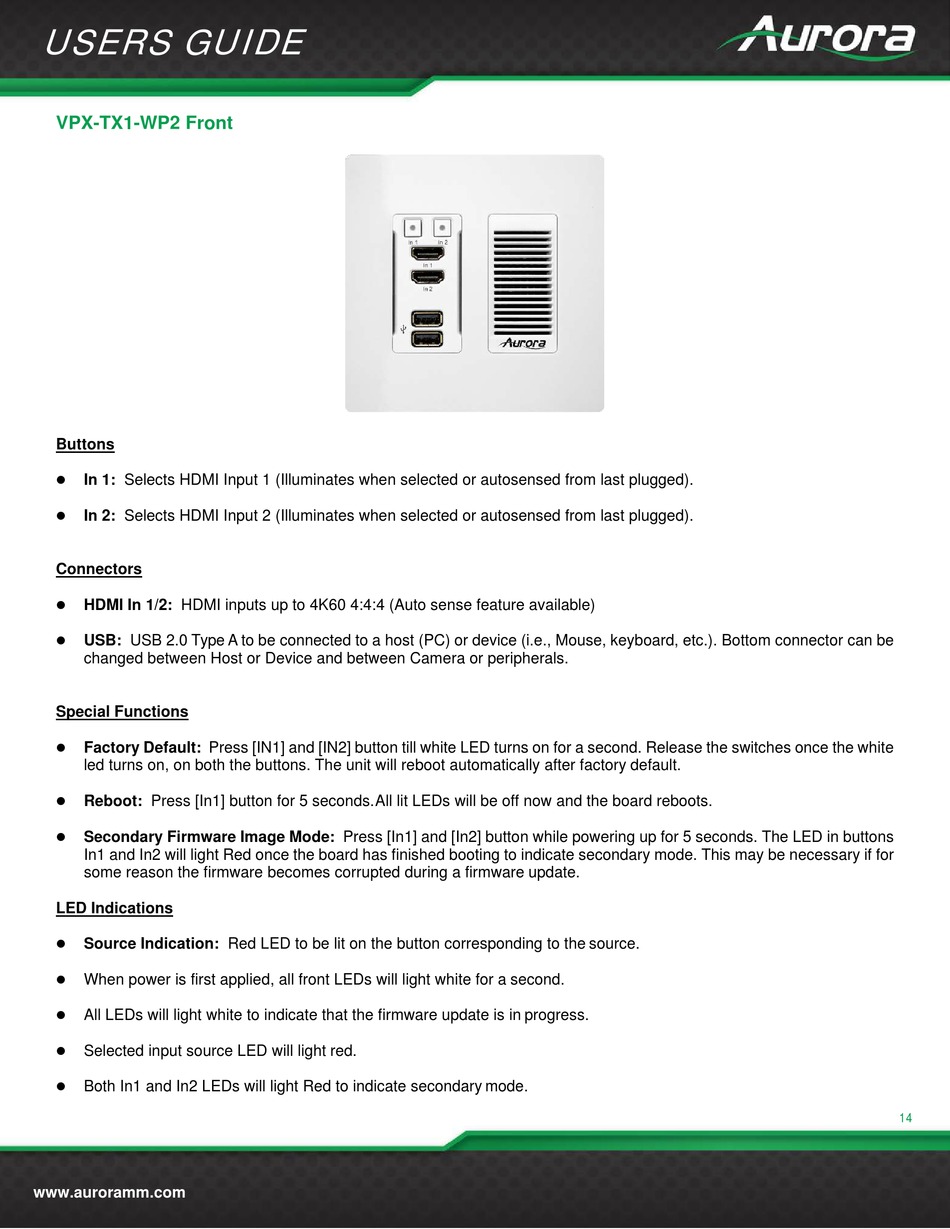

VPX-TX1-WP2 Front

Buttons

In 1: Selects HDMI Input 1 (Illuminates when selected or autosensed from last plugged).

In 2: Selects HDMI Input 2 (Illuminates when selected or autosensed from last plugged).
Connectors

HDMI In 1/2: HDMI inputs up to 4K60 4:4:4 (Auto sense feature available)

USB: USB 2.0 Type A to be connected to a host (PC) or device (i.e., Mouse, keyboard, etc.). Bottom connector can be
changed between Host or Device and between Camera or peripherals.
Special Functions

Factory Default: Press [IN1] and [IN2] button till white LED turns on for a second. Release the switches once the white
led turns on, on both the buttons. The unit will reboot automatically after factory default.

Reboot: Press [In1] button for 5 seconds. All lit LEDs will be off now and the board reboots.

Secondary Firmware Image Mode: Press [In1] and [In2] button while powering up for 5 seconds. The LED in buttons
In1 and In2 will light Red once the board has finished booting to indicate secondary mode. This may be necessary if for
some reason the firmware becomes corrupted during a firmware update.
LED Indications

Source Indication: Red LED to be lit on the button corresponding to the source.

When power is first applied, all front LEDs will light white for a second.

All LEDs will light white to indicate that the firmware update is in progress.

Selected input source LED will light red.

Both In1 and In2 LEDs will light Red to indicate secondary mode.
