- Page 1 USERS GUIDE VPX Series VPX-TC1-PRO ● VPX-TX1-WP2 4K60 4:4:4 1GbE Visual Lossless Low Latency AV over IP VPX-TC1-PRO VPX-TX1-WP2 www.auroramm.com Manual Number: 220903 | Firmware Rev: 0.18.1 or Higher...
- Page 2 Please review the following safety precautions. If this is the first time using this model, then read this manual before installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for further instructions.
-
Page 3: Table Of Contents
USERS GUIDE TABLE OF CONTENTS PACKAGE CONTENTS ................................. 4 OPTIONAL ACCESSORIES ..............................5 INTRODUCTION ..................................9 About ....................................9 Documentation ..................................9 Features .................................... 10 VPX-TC1-PRO Front ................................. 11 VPX-TC1-PRO Rear ................................. 13 VPX-TX1-WP2 Front ................................. 14 VPX-TX1-WP2 Rear ................................. 16 UNDERSTANDING THE BASICS ............................ - Page 4 USERS GUIDE Example 4: Video Wall ..............................51 Example 5: KVM Utilizing USB 2.0 ........................... 52 Example 6: VPX-TC1-PRO with Local Ethernet Control ....................53 Example 7: VPX-TC1-PRO Daisy Chain .......................... 54 ® Example 8: VPX-TC1-PRO Independent Dante /AES67 Switch ..................55 SOFTWARE ..................................
-
Page 5: Package Contents
USERS GUIDE PACKAGE CONTENTS Please make sure the following items are included within your package. Contact your dealer if any items are missing or damaged. Box Versions VPX-TC1-PRO 1 QTY VPX-TC1-Pro 1G RJ-45/SFP Copper/Fiber Transceiver Unit 2 QTY Mounting Ears and screws Wall Plate 2 Gang Versions VPX-TX1-WP2 ... -
Page 6: Optional Accessories
USERS GUIDE OPTIONAL ACCESSORIES RK2-1-K (1RU Rack Mount Holds 2 Units) Includes 4 rails and 1 blank RK2-5-K (5RU Rack Mount Holds 12 Units) Includes 24 rails and 4 blanks RK2-BP-K (Blank Plate for Rack Mounts) RK2-RL-K (For VPX-TC1 Use in Rack Mounts) ... - Page 7 USERS GUIDE IPA-SFP-RJ45-1 (1G RJ-45 LAN SFP Module) IPA-SFP-1GMM-1 (1G Multi-Mode Fiber SFP Module) IPA-SFP-1G20 (1G Single-Mode Duplex Fiber SFP Module) DXB-8i (8 Button IP Wall Plate) www.auroramm.com...
- Page 8 USERS GUIDE PS0081-1 (48V 24 Watt PoE Injector) Available in –US, -AU, -EU, and –UK worldwide models PS0094-3 (48V 25 Watt Wall Supply) Comes with US, AU, EU, and UK interchangeable blades IR Receiver CA0026-1 IR Emitter CA0061-1 ...
- Page 9 USERS GUIDE LVR-2G Gang Electrical Ring www.auroramm.com...
-
Page 10: Introduction
VPX-TC1. Documentation Aurora provides many documents to support the VPX series and accessories. Below is a list of the available documents that can be found on the download tab of the VPX products or the customer portal. -
Page 11: Features
USERS GUIDE Features Configure as Encoder or Decoder 4K60 4:4:4 UHD 120m over 1G CAT 5e HDMI 2.0b, HDCP 2.2 HDR10, HDR10+, Dolby Vision LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio &... -

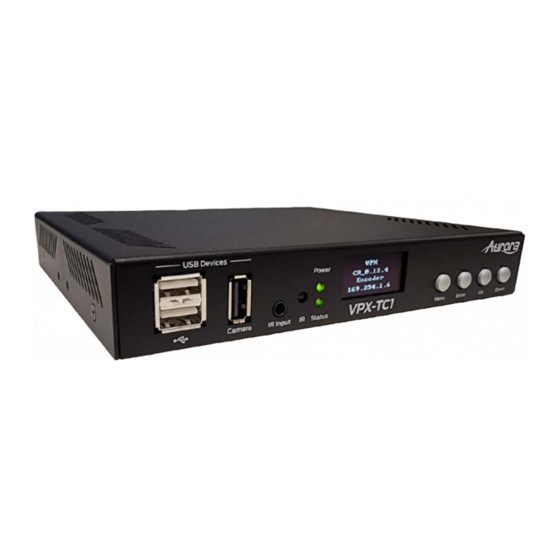

Page 12: Vpx-Tc1-Pro Front
USERS GUIDE VPX-TC1-PRO Front LEDs Power: Power will light green when unit is on or in standby. Status: Status will blink at a normal pace during regular operation and slower pace when in standby. OLED Display Using the buttons as described below, the OLED display will show firmware version, mode (encoder/decoder), IP address, serial number, MAC address, subnet mask, USB mode, active source information, and more. - Page 13 USERS GUIDE Special Functions Factory Default: Press and hold MENU and ENTER for 6 seconds. The OLED display will show “FACTORY RESET” while the device is resetting, followed by an automatic reboot. This will not change the currently set device mode. ...
-
Page 14: Vpx-Tc1-Pro Rear
7.1) is down mixed (PCM) to stereo (2 channel). Control RS-232: Serial port pass-through and control up to 115Kbps. SFP: SFP Cage for Multi-mode or Single Mode Fiber and RJ-45 LAN with optional modules available from Aurora. www.auroramm.com... -
Page 15: Vpx-Tx1-Wp2 Front
USERS GUIDE VPX-TX1-WP2 Front Buttons In 1: Selects HDMI Input 1 (Illuminates when selected or autosensed from last plugged). In 2: Selects HDMI Input 2 (Illuminates when selected or autosensed from last plugged). Connectors HDMI In 1/2: HDMI inputs up to 4K60 4:4:4 (Auto sense feature available) ... - Page 16 USERS GUIDE Default Settings Baud Rate: 9600 IP Mode: DHCP Fallback IP Mode (no DHCP Present): Auto-IP 169.254.xxx.xxx range Autosense: Off www.auroramm.com...
-
Page 17: Vpx-Tx1-Wp2 Rear
USERS GUIDE VPX-TX1-WP2 Rear Rear 48VDC: 48 Volt DC isolated power input LAN: 10/100/1000Mbps LAN. Can power the unit with PoE from injector or switch. RS-232: Serial port pass-through and control up to 115Kbps. Also, has 5V for connection to DXB-8 8 button wall controller. -
Page 18: Understanding The Basics
Direct Connection with No Ethernet Switch The VPX Series is designed to automatically tunnel the video, audio, USB, RS-232, and IR if they are connected without an Ethernet switch once they have been connected for the first time with an Ethernet switch. -
Page 19: Controlling The Vpx
Controlling the VPX To simplify control of the VPX, each unit can be controlled via the Aurora IPBaseT Manager server, either running on a PC or on a dedicated control appliance (RXS-1). It can also be controlled from other Aurora control products or third-party control systems with the available VPX API. -
Page 20: Ethernet Bandwidth Usage
USERS GUIDE Ethernet Bandwidth Usage The VPX streaming bandwidth is dynamic with the compression at 14:1 compression for 4K60 4:4:4. With no USB activity and a still image fed into a decoder the VPX will use as little as 92Mbps of network bandwidth. Maximum throughput is 850Mbps without USB data. -
Page 21: Hardware Installation
VPX Series Network Switch Recommendations and Configuration document which can be found on the Aurora website. VPX requires a frame size of 1600MTU or greater for full 4K video streaming but should work on most modern-day switches without jumbo packets. -
Page 22: Dante ® Option
Option This is done with licensing which can be obtained by an authorized Aurora dealer. Once the license is enabled, Dante will be operational. AES will be available at the end of 2022 with a firmware update for the software version. -
Page 23: Web Setup Pages
USERS GUIDE WEB SETUP PAGES Web Setup pages can be accessed by typing in the IP address of the unit (example: 192.168.100.1). You will then be prompted for a username and password. Default username and password is “admin”. It is highly advisable to change the units to a unique username and password for security reasons. - Page 24 USERS GUIDE Firmware If updating firmware is necessary, this selection allows a user to select the firmware file and upload to the unit. When the process is done, a notification will appear. www.auroramm.com...
- Page 25 USERS GUIDE Network The Network tab allows the setup of the IP address, Subnet, and Gateway. The Host ID and Host Name must be unique for every unit. The VPX has an internal network switch and another great feature is the ability to set VLAN for the Video and the Dante Audio.
- Page 26 USERS GUIDE Remote The Remote tab has options pertaining to RS-232 settings for the Serial over IP. www.auroramm.com...
- Page 27 USERS GUIDE Security Change the password settings for the VPX from this web page. www.auroramm.com...
- Page 28 USERS GUIDE Device Device type can be set between encoder and decoder. Note the unit will need to be rebooted for the change to take effect. Auto Sense is for the rear HDMI connectors to automatically switch between the 2 inputs based on last active. Front Panel Lock will disable the front buttons to eliminate access to people who may have physical access to the box in a more public location.
- Page 29 USERS GUIDE Video From this page you can select the local HDMI In 1 or 2. In addition the HDCP for the encoder can be set for compatibility or to turn it off so it forces a device to no HDCP which is useful for Video Conferencing devices. HDCP fast switch mode allows for improved switching speed by forcing same-level HDCP encryption on any connected input, including those which do not use HDCP.
- Page 30 USERS GUIDE Audio Audio allows the routing of the various audio combinations including volume levels. www.auroramm.com...
- Page 31 USERS GUIDE Backup The Backup page is to save the configuration of the VPX unit in the event it needs to be replaced and cloned. www.auroramm.com...
- Page 32 USERS GUIDE Diagnostics This page is for advanced troubleshooting of the VPX. It also has a handy feature called Locate Device which puts an indicator on the units display to help find which physical unit it is. Very useful when there are many units in a rack to quickly identify the location.
-
Page 33: Decoder Mode Web Pages
USERS GUIDE Decoder Mode Web Pages Device Info Hardware Information shows the units MAC Address, Serial Number and Mode. Version Information reports back the current firmware version. This will help to not only make choices for updating firmware if necessary but by knowing the firmware the user will know the current capabilities that can be expected of the unit. Statistics is very useful when diagnosing the unit as it reveals important information about the unit itself. - Page 34 USERS GUIDE Firmware If updating firmware is necessary, this selection allows a user to select the firmware file and upload to the unit. When the process is done, a notification will appear. www.auroramm.com...
- Page 35 USERS GUIDE Network The Network tab allows the setup of the IP address, Subnet, and Gateway. The Host ID and Host Name must be unique for every unit. The VPX has an internal network switch, and another great feature is the ability to set VLAN for the Video and the Dante Audio.
- Page 36 USERS GUIDE Remote The Remote tab has options pertaining to RS-232 settings for the Serial over IP. It also allows the selection of the encoder associated to the decoder from this page and to send an EDID to it. www.auroramm.com...
- Page 37 USERS GUIDE Security Change the password settings for the VPX from this web page. www.auroramm.com...
- Page 38 USERS GUIDE Device Device type can be set between encoder and decoder. Note the unit will need to be rebooted for the change to take effect. Auto Sense is for the rear HDMI connectors to automatically switch between the 2 inputs based on last active. CEC allows the testing of CEC commands.
- Page 39 USERS GUIDE Video From this page you can select the source and set scaler resolutions. Setting the scaler to the display’s native resolution will greatly improve switching speed by removing the need for the display to re-sync when switching to a source with differing resolution/frame rate/color space.
- Page 40 USERS GUIDE Audio Audio allows the routing of the various audio combinations including volume levels. www.auroramm.com...
- Page 41 USERS GUIDE Backup The Backup page is to save the configuration of the VPX unit in the event it needs to be replaced and cloned. www.auroramm.com...
- Page 42 USERS GUIDE Channel Map The channel map feature allows the uploading of a comma delimited file (csv) to configure the decoders access to encoder units. The file can be formatted to a channel number, channel labeling, and a description. Once uploaded anything in the table will be selected from the decoders up and down buttons, IR remote, or a command from a control system.
- Page 43 USERS GUIDE This will enable or disable the Picture in Picture function on the VPX. www.auroramm.com...
- Page 44 USERS GUIDE Diagnostics This page is for advanced troubleshooting of the VPX. It also has a handy feature called Locate Device which puts an indicator on the units display to help find which physical unit it is. Very useful when there are many units in a rack to quickly identify the location.
- Page 45 USERS GUIDE Preview Tab The Preview tab allows you to look at the active video source. If no source is available it will show the No Signal image. www.auroramm.com...
- Page 46 USERS GUIDE Videowall Tab From this page up to an 8x8 videowall can be configured. www.auroramm.com...
- Page 47 USERS GUIDE www.auroramm.com...
-
Page 48: Epg (Electronic Programming Guide)
USERS GUIDE EPG (Electronic Programming Guide) The EPG works with the channel mapping feature when a unit is set to a decoder. First, make a spreadsheet (.csv format) with 4 columns for channel number, Encoder IP or Host name, OSD channel label, and Description. Load it into the decoder unit through the built-in web page as per prior section. -
Page 49: Applications
Example 1: VPX-TX1-WP2 to VPX-TC1 Decoder (point-to-point) When the VPX Series is connected point to point, no configuration is required, as the units will auto identify and make a tunnel between both ends for the video, audio, RS-232, IR, USB, and Ethernet. With the copper version a maximum distance of 100m (328ft) can be achieved. -
Page 50: Example 2: Vpx Multi-Room
Example 2: VPX Multi-Room The VPX Series is perfect for multi-room applications with its flexibility. A nearly unlimited number of rooms can share video, audio, data, and control in real-time. The scalability is only limited by the size of the network switch and infrastructure. -
Page 51: Example 3: Matrix - Multiple Vpx To Multiple Vpx
USERS GUIDE Example 3: Matrix – Multiple VPX to Multiple VPX The VPX can take the place of any typical card cage matrix system, adding flexibility and performance never seen before. Even features like fast switch is no longer a premium. www.auroramm.com... -
Page 52: Example 4: Video Wall
USERS GUIDE Example 4: Video Wall The VPX Series is capable of 4K video walls. Up to 8x8 size can be created with 4K input. www.auroramm.com... -
Page 53: Example 5: Kvm Utilizing Usb 2.0
Example 5: KVM Utilizing USB 2.0 Command & Control and NOC centers are perfect for the VPX Series, especially with the USB 2.0 running at a full 170Mbps. With the VPX it is no longer just keyboard and mouse but full USB peripheral routing as well. To make this feature easy, the VPX has floating mouse and hot key functions. -
Page 54: Example 6: Vpx-Tc1-Pro With Local Ethernet Control
USERS GUIDE Example 6: VPX-TC1-PRO with Local Ethernet Control Using the SFP a multimode fiber, single-mode fiber, or RJ-45 Copper, the VPX can connect to an ethernet switch and to a local device that requires Ethernet. If a copper switch is used with PoE the same can be accomplished by using the main RJ-45 to power and the SFP to do the local control. -
Page 55: Example 7: Vpx-Tc1-Pro Daisy Chain
USERS GUIDE Example 7: VPX-TC1-PRO Daisy Chain The VPX-TC1-PRO can be used in a Daisy chain mode with RJ-45 to RJ-45 or a mix of fiber. Note when using daisy chain only the first unit can be power by PoE. Following units would require local power. If a unit in the chain is not power or has an issue the remaining units in the chain will no longer function. -
Page 56: Example 8: Vpx-Tc1-Pro Independent Dante /Aes67 Switch
USERS GUIDE ® Example 8: VPX-TC1-PRO Independent Dante /AES67 Switch In some cases, it may be desired to have the Dante® on its own Ethernet Switch. The VPX-TC1-PRO has a mode allowing the traffic of the Dante®/AES67 to only be assigned to one of the 2 LAN ports. www.auroramm.com... -
Page 57: Software
Aurora customer portal on www.auroramm.com. IPBaseT Manager allows a user to control the various capabilities of VPX series products on a network. While the IPBaseT manager is client software, the IPBaseT Server handles all the communication handling and is the target for all communication. - Page 58 EDID editor Rapid deployment tool Touch screen/mobile friendly layout User and group management Macro recording For full detail of the IPBaseT Manager Software tool and setup, the manual can be found at the Aurora website www.auroramm.com. www.auroramm.com...
-
Page 59: Connector Pin Definition
USERS GUIDE CONNECTOR PIN DEFINITION HDMI TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 1 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11... -
Page 60: Cat5E/6/6A
USERS GUIDE CAT5e/6/6A T568A and T568B Wiring www.auroramm.com... - Page 61 USERS GUIDE RS-232 The RS-232 is a 3.5mm TRS connector. Tip is TX (output), ring is RX (input), and Sleeve is ground. To simplify connections Aurora offers pre-molded RS-232 cables in null and none nulled in male and female DB9. www.auroramm.com...
-
Page 62: Ir (Infrared)
USERS GUIDE IR (Infrared) It will autosense a TS or a TRS connector to determine if an IR emitter (TS) or IR receiver (TRS) is inserted. The IR receiver must be with carrier inverted to work. The tip is signal, ring is 5V, and sleeve is ground. IR Receiver CA0026-1 (30kHz –... -
Page 63: Troubleshooting
USERS GUIDE APPENDIX 1 Troubleshooting It is advisable to make certain all units are using the latest firmware before troubleshooting. Also make sure all network connections are operating on 1G. VPX Web Server is Not Responding Make certain every VPX unit has a unique IP Address set for the webserver. Disconnect unit from 1G network and connect PC directly to 1G LAN and check to see if webserver appears in browser. - Page 64 If 0.18.1 or higher which will also update firmware through IPBaseT manager or ftp, make certain you are using the latest IPBaseT manager that supports the VPX. This can be found on the Aurora portal. If not in secondary mode to reattempt firmware update press and hold UP and DOWN while applying power.
-
Page 65: Firmware Update
You must be signed up to the Customer Portal to download firmware with instructions on how to update. *Note: Aurora suggests using IPBaseT Manager for performing batch firmware updates. IPBaseT Manager will download the latest VPX firmware when the program is installed or updates. -
Page 66: Protocol
USERS GUIDE APPENDIX 3 Protocol For the latest protocol please go www.auroramm.com. You must be signed up to the Customer Portal in order to download IPX protocol. The protocol is only available to authorized Aurora dealers. www.auroramm.com... -
Page 67: Recommended Cabling
USERS GUIDE APPENDIX 4 Recommended Cabling Cat 5e UTP (Unshielded): 100m (330ft) Any brand on the market made to Category 5e or better specification. Cat 6 UTP (Unshielded): 143m (470ft) Cable Brand: West Penn Wire Part Number: 4246. Cat 6 UTP CMR Part Number: 254246. Cat 6 UTP CMP Cat 6A UTP (Unshielded): 182m (600ft) Cable Brand: West Penn Wire Part Number: 4246A. -
Page 68: Recommended Network Switches
The VPX Series requires the switch to be a 1GbE. VPX Series technology is used to transmit visually lossless 14:1 compress video up to 4K60 4:4:4 along with other AV signals such as audio, USB and control signals. For video alone, it means raw bandwidth of about 218Mbps average/850Mbps peak for 4K60 and that is just for audio and video. - Page 69 PoE/PoE+ (Power over Ethernet) The VPX Series uses around 8 watts of power (standard PoE 12.9 Watts), however, the PoE can supply up to 20 watts with PoE+ as the USB ports on the VPX can supply up to 5 watts. When selecting a PoE switch always make certain the power supply of the PoE switch is proper to the port count (15.4W x qty of ports).
-
Page 70: Technical Specifications
USERS GUIDE APPENDIX 6 Technical Specifications Model Name VPX-TC1-PRO Technical Compression Mimix™ 14:1 Latency 1 Frames (16.6ms) HDMI Inputs 2 (HDMI 2.0b, HDCP 2.2) HDMI Outputs 1 (HDMI 2.0b, HDCP 2.2) Encryption AES 256 Audio Analog Stereo Line In/Out (3.5mm TRS) 1G Ethernet RJ-45 and SFP RJ-45 10/100/1000M PoE... - Page 71 USERS GUIDE Weight .453kg [1lbs] Mounting Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount Power Supply 48v DC (2 Pin Euro) or PoE+ (LAN) Power Consumption 8 Watts, up to 20 Watts allowable with USB & PoE+ Operation Temperature 0~40 C [32~104 Storage Temperature...
- Page 72 USERS GUIDE Model Name VPX-TX1-WP2 Technical Compression Mimix™ 14:1 Latency 1 Frames (16.6ms) HDMI Inputs 2 (HDMI 2.0b, HDCP 2.2) Encryption AES 256 1G Ethernet RJ-45 and SFP RJ-45 10/100/1000M PoE Video Bandwidth 600MHz Video Support Up to 4K2K 4:4:4 @ 60Hz Audio Support Up to 12 Channels 93Mbps –...
-
Page 73: Warranty
Limited 5 Year Warranty Aurora Multimedia Corporation (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 5 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year of 2019 and after. - Page 74 USERS GUIDE Aurora Multimedia Corporation 205 Commercial Court | Morganville, NJ 07751 Phone: 732-591-5800 | Fax: 732-591-6801 www.auroramm.com...
