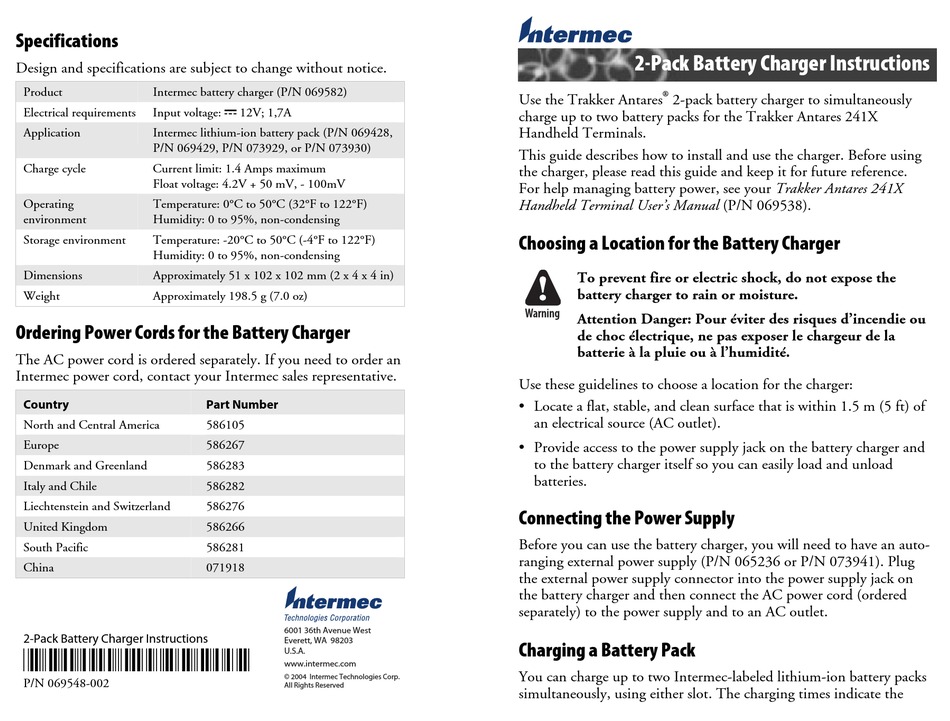

Specifications

Design and specifications are subject to change without notice.
Product Intermec battery charger (P/N 069582)
Input voltage: x 12V; 1,7A
Electrical requirements
Application Intermec lithium-ion battery pack (P/N 069428,
P/N 069429, P/N 073929, or P/N 073930)
Charge cycle Current limit: 1.4 Amps maximum
Float voltage: 4.2V + 50 mV, - 100mV
Operating Temperature: 0°C to 50°C (32°F to 122°F)
environment Humidity: 0 to 95%, non-condensing
Storage environment Temperature: -20°C to 50°C (-4°F to 122°F)
Humidity: 0 to 95%, non-condensing
Dimensions Approximately 51 x 102 x 102 mm (2 x 4 x 4 in)
Weight Approximately 198.5 g (7.0 oz)
Ordering Power Cords for the Battery Charger
The AC power cord is ordered separately. If you need to order an
Intermec power cord, contact your Intermec sales representative.
Country
North and Central America
Europe
Denmark and Greenland
Italy and Chile
Liechtenstein and Switzerland
United Kingdom
South Pacific
China
2-Pack Battery Charger Instructions
*069548-002*
P/N 069548-002
Part Number
586105
586267
586283
586282
586276
586266
586281
071918
6001 36th Avenue West
Everett, WA 98203
U.S.A.
www.intermec.com
© 2004 Intermec Technologies Corp.
All Rights Reserved
2-Pack Battery Charger Instructions
®
Use the Trakker Antares 2-pack battery charger to simultaneously
charge up to two battery packs for the Trakker Antares 241X
Handheld Terminals.
This guide describes how to install and use the charger. Before using
the charger, please read this guide and keep it for future reference.
For help managing battery power, see your Trakker Antares 241X
Handheld Terminal User's Manual (P/N 069538).
Choosing a Location for the Battery Charger
To prevent fire or electric shock, do not expose the
battery charger to rain or moisture.
Attention Danger: Pour éviter des risques d'incendie ou
de choc électrique, ne pas exposer le chargeur de la
batterie à la pluie ou à l'humidité.
Use these guidelines to choose a location for the charger:
• Locate a flat, stable, and clean surface that is within 1.5 m (5 ft) of
an electrical source (AC outlet).
• Provide access to the power supply jack on the battery charger and
to the battery charger itself so you can easily load and unload
batteries.
Connecting the Power Supply
Before you can use the battery charger, you will need to have an auto-
ranging external power supply (P/N 065236 or P/N 073941). Plug
the external power supply connector into the power supply jack on
the battery charger and then connect the AC power cord (ordered
separately) to the power supply and to an AC outlet.
Charging a Battery Pack
You can charge up to two Intermec-labeled lithium-ion battery packs
simultaneously, using either slot. The charging times indicate the
