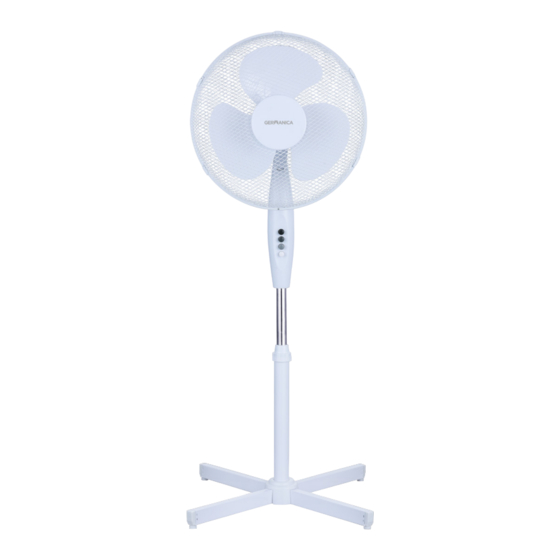

- Page 1 40CM PEDESTAL FAN KF16 INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Before first use Product Overview Getting Started Assembling the Stand Assembling the Fan Operating Instructions Customer Support... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the Fan. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY (CONT.) • If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock. • When not using the unit for long periods of time or when you are moving the unit.
-
Page 6: Before First Use
GENERAL SAFETY (CONT.) Before first use • Unpack the fan and accessories and ensure all parts of the product are undamaged and in good working order. • Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach and disposed of safely. -
Page 7: Product Overview
PRODUCT OVERVIEW Front Grille Grille Cover Grille Screw Grill Cover Screws (3) Blade Locking Nut Fan Blade Rear Grille Locking Nut Rear Grille Motor Shaft Oscillation knob Motor Housing Tilt Adjustment Screw Control Panel Power Cord Extension Pole Height Adjustment Ring Base Tube Base Cover Base Screws (4) -
Page 8: Getting Started
Getting Started ASSEMBLING THE STAND. NOTE - use the illustration of Product Overview while following instructions. Make a cross with the cross bases (20) by fitting them together at the center. The four end caps (21) will be pre-assembled to the end of the cross bases. -
Page 9: Assembling The Fan
Getting Started (Cont.) ASSEMBLING THE FAN. NOTE - use the illustration of Product Overview while following instructions. Remove the rear grille locking nut (7) from the motor housing (11) by rotating it anticlockwise. 2. Insert the rear grille (8) onto the motor housing (11) and position it so that the locator posts on the motor housing align with the slotted holes on the rear grille. -
Page 10: Operating Instructions
Operating Instructions Once the Fan has been fully assembled plug the power cord into a power outlet and switch the outlet on. 2. Select the desired speed with the control panel: 0 - Off 1 – Low speed 2 – Medium speed 3 –... - Page 11 This page is left blank intentionally.
-
Page 12: Customer Support
CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
