QUICK START GUIDE

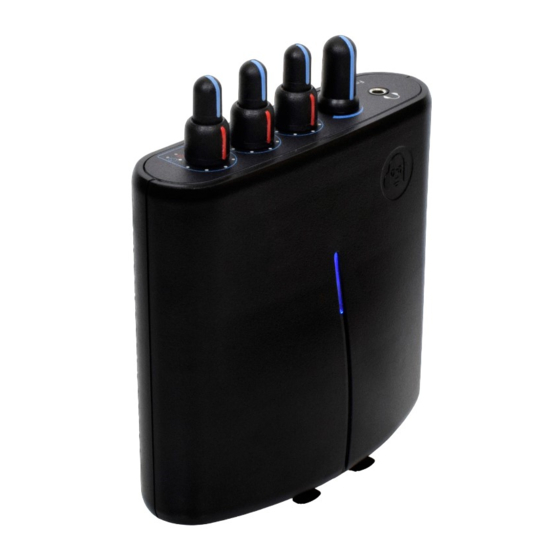

Thank you for purchasing the Switch Back M8RX! Use this Quick Start Guide to setup
quickly and easily. Refer to the User Guide for complete instructions, available online at
www.hearback.com/support or scan the QR code above.

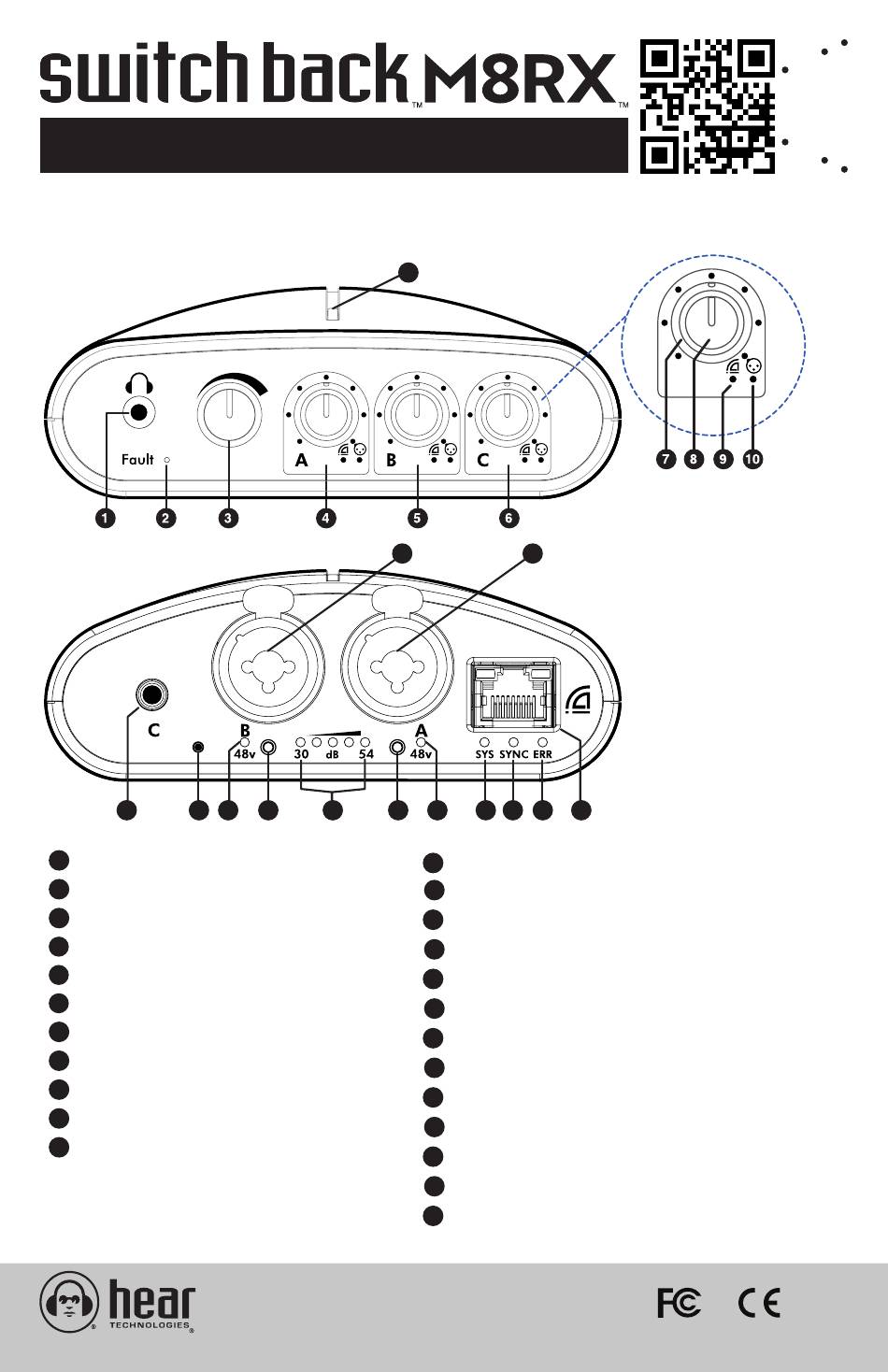

TOP PANEL
BOTTOM PANEL
14 15
1/8" Stereo Headphone Output
1
Headphone Fault LED
2
Master Volume
3
"A" Input
4
"B" Input
5
"C" Input (Stereo)
6
Dante Input Level
7
Analog Input Level
8
Dante Signal & Clip Status LED
9
Analog Input Signal & Clip Status LED
10
User-changeable Multi-color LED
11
(for identifying multiple M8RXs)
16 17 18
Switch Back M8RX is proudly designed & assembled
in the U.S.A. by musicians and audio engineers.
11
13 12
19 20 21 22 23
Input "A" Balanced XLR or 1/4" Input
12
Input "B" Balanced XLR or 1/4" Input
13
Input "C" Unbalanced 1/8" Stereo Line Input
14
Reset Switch
15
Input "B" Phantom Power Indicator
16
Input "B" Gain & Phantom Power Button
17
Gain Indicator LEDs for Input "A" or "B"
18
Input "A" Gain & Phantom Power Button
19
Input "A" Phantom Power Indicator
20
"SYS" Dante Status Indicator
21
"SYNC" Dante Communication Indicator
22
"ERR" Error Indicator
23
Dante & PoE+ Power RJ45 for 100 BaseT
24
Ethernet Connector (only use unshielded cables)
24
SCAN
CODE
FOR USER
GUIDE
