Summary of Contents for Haier HRF680YPC

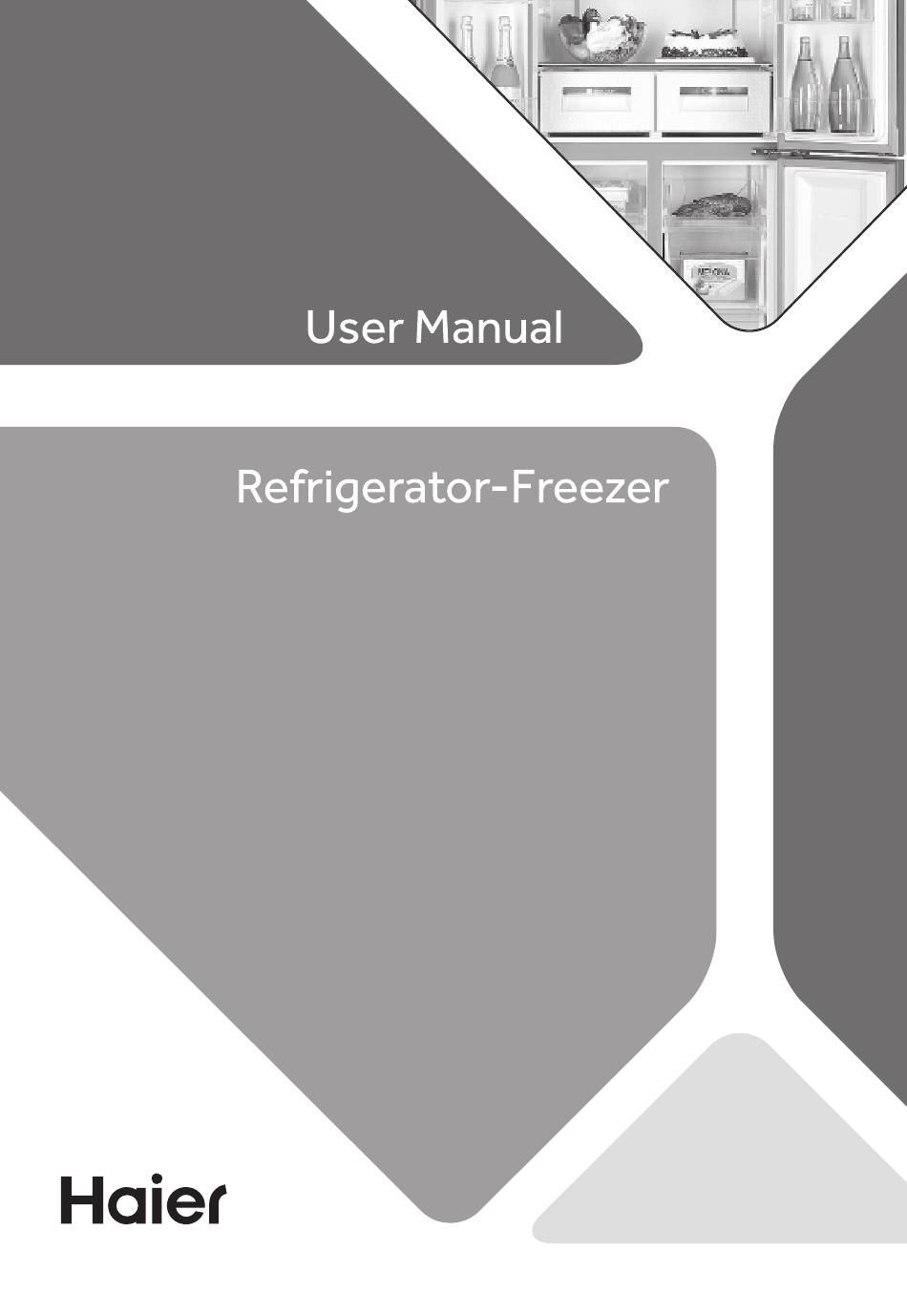

- Page 1 HRF680YPC HRF680YPS HRF680YS...
- Page 2 Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
- Page 3 Accessories Check the accessories and literature in accordance with this list: Water pipe Note:*Only for model HRF680YPS/HRF680YPC...
- Page 4 Before switching on the appliance for the first time read the following safety hints! Before first use Make sure there is no transport damage. Remove all packaging and keep out of children´s reach. Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
- Page 5 Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. WARNING:Do not damage the refrigerant circuit. Daily use This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
- Page 7 Hold the plug, not the cable, when unplugging the appliance. Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
- Page 8 This product contains flammable refrigerant isobutane (R600a) It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland – the authorized Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of covers . The symbol indicates there is a risk of fire since flamma- ble materials are used.
-
Page 9: Intended Use
Intended use This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; –... - Page 10 HRF680YPS/HRF680YPC Ice maker Cabinet shelves Door shelves Door shelves Water filter Storage tray Freezer light Fridge compartment light Door shelves Door shelves Water dispenser Humidity zone drawer Switch Zone light...
- Page 11 HRF680YPS/HRF680YPC A Panel lock selector B Wi-Fi selector C Water Lock selector D Filter Reset selector E Ice Maker mode selector F Holiday mode selector G Super Freeze selector H Super Cool selector Temperature adjustment button “-” J Temperature adjustment button “+”...
- Page 12 HRF680YS Storage tray&Ice maker Cabinet shelves Door shelves Door shelves Extra store drawer Storage tray Freezer light Fridge compartment light Door shelves Door shelves Humidity zone drawer SwitchZone light...
- Page 13 HRF680YS A Panel lock selector B Wi-Fi selector F Holiday mode selector G Super Freeze selector H Super Cool selector Temperature adjustment button “-” J Temperature adjustment button “+” K Zone selector L Bottle Chill selector a Panel lock function b Wi-Fi function f Holiday mode g Super freeze function...
- Page 14 For plumbed models (HRF680YPS/HRF680YPC) Water edal Ice Maker...
- Page 15 Sensor keys The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger. Switch on /off the appliance The appliance is in operation as soon as it is connected to the power supply. When the refrigerator is first powered on, the indicator “i”...
-
Page 16: Lock/Unlock Panel
Lock/unlock panel Under Lock state, long press key"A" for 3 secon- ds, the panel lock will be unlocked. Standby-mode The display screen turns off automatically 30seconds after pressing a key .The display will be automatically locked.It lights up automatically when pressing any key or opening any door （Alarm does not light up the display screen）... - Page 20 Filter reset function (Only for HRF680YPS/HRF680YPC) To replace the water filter, lift open the water filter cover lid, turn the filter co- unter clockwise for quarter of a turn to remove the used filter, replace with new filter. Make sure the filter is properly fitted with correct orientation.
- Page 21 Ice maker mode (Only for HRF680YPS/HRF680YPC) Ice Maker Ice Maker The ice maker is off by default when the refrigerator is powered on for the first time. The ice maker is designed to automatically dispense ice into the ice storage bin and it will stop when it detects the bin is full.
- Page 22 Bottle chill function （Only for HRF680YS) Bottle Chill rapidly chills your beverages in the freezer for a set time of 15 minutes. Depending on bottle size, you may need to return it to the freezer and reset. In unlock state, press key “L”(Bottle Chill selector), after hearing one beeping sound, the indicator “l”...
-
Page 23: Replacing The Water Filter
Replacing the water filter... - Page 25 Storage into the Switch Zone compartment Switch Zone compartment allows you to adjust the temperature between -18℃ to 5℃ according to the demand of food storage and provide you with further flexibility in storage options for your convenience. For general frozen food items Meat, poultry, seafood, that require storage between pre-cooked foods and...
- Page 26 Storage into the freezer compartment...
- Page 28 Removable door shelves shelves shelves shelves The Light The LED interior light comes on when the door is opened and it will automatically goes off if the door is left open for more than 7 minutes. The performance of the lights is not affected by any of the appliances other settings.
- Page 29 Energy saving tips Make sure the appliance is properly ventilated (see INSTALLATION). Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves,heaters). Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
- Page 31 Replacing the LED light ight by ight (Only for HRF680YS)
-
Page 32: Cleaning The Ice Cube Tray
Cleaning the ice cube tray (Only for HRF680YPS/HRF680YPC) 1 Turn off the icemaker function via the display panel, hold down the handle of the icemaker, and use strength to pull out the icemaker. 2. Remove the icemaker assembly from the refrigerator and turn over the icemaker, so that the ice cube tray is visible. - Page 33 •The icemaker can only be supplied with water via the container on top of the left door unit. It can not be connected directly to an external drinking water supply. •DO NOT manually add water - this is an automatic water system. If the ice maker is turned on but the appliance is not connected to water, the ice maker will not work。...
- Page 37 W1=1217mm W2=1528mm D1=629mm D2=1110mm Notice: Dimensions above are for reference only. Please make the object as the standard.
- Page 39 Ice and Water Your Ice and Water and Automatic ice refrigerator must be installed by a qualified plumber or Haier trained and supported service technician as incorrect plumbing can lead to water leaks. Haier appliances does not accept responsibility for damage (including...
- Page 40 (Only for HRF680YPS/HRF680YPC)
- Page 41 Trade mark Haier Model No. HRF680YPC/ HRF680YPS/HRF680YS Cooled Appliance Category of the model Voltage / Frequency 220V-240V~/50Hz Energy Star 4.5 Stars Frostfree system Product group Total product volume 623L 358L Fresh food compartment volume 130L Freezer compartment volume Convertible compartment volume...
