Summary of Contents for Roidmi SDJ06RM

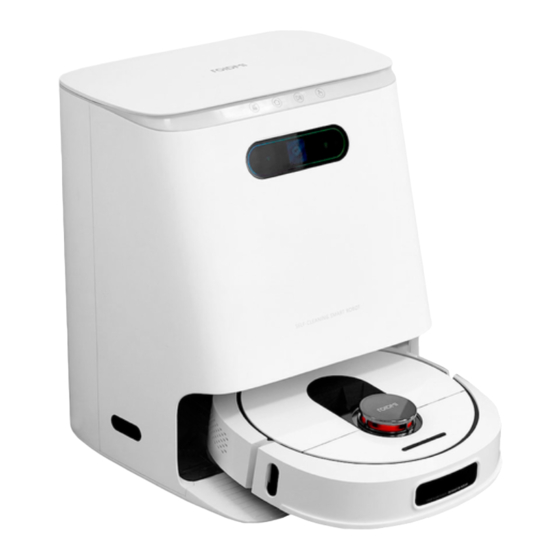

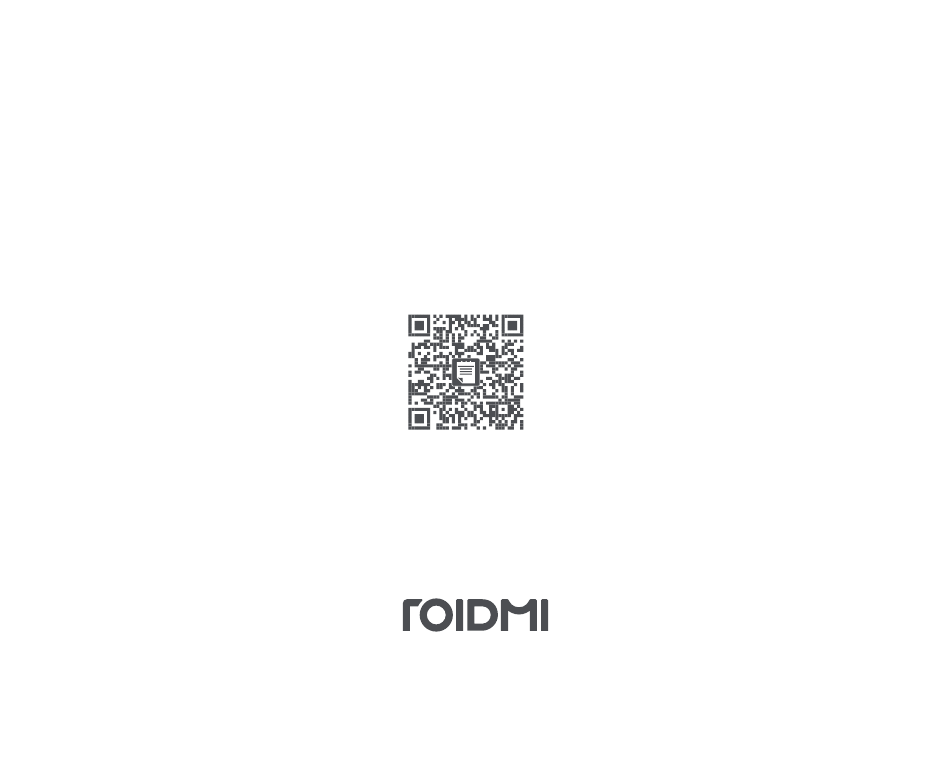

- Page 1 ROIDMI Self-Cleaning and Emptying Robot Vacuum Manual Carefully read all the instructions before using this appliance. Keep it well for future reference Scan the QR code for manuals in multiple languages...
-
Page 2: Table Of Contents
Robot cleaner Dust box Base station Product use Quick product installation and use APP installation and use ROIDMI APP Installation Mi Home APP Installation Product Operation and Programming Base station display functions introduction Base station status indicators Product disassembly and cleaning... -
Page 3: Safety Precautions
2:"Warning" and "Caution" are important instructions for safe use of the appliance be sure to follow them. Hereby, [ROIDMI INFORMATION TECHNOLOGY CO., LTD.] declares that the radio equipment type [2.4GHz WLAN Module] is in compliance with Directive 2014/53/EU. -
Page 4: Warning (Base Station)
To ensure safety, any replacement or maintenance should only be carried out by the manufacturer or ROIDMI designated maintenance personnel; 8. Be sure to unplug the appliance from the power source before cleaning and maintenance to avoid electric shock or injury;... - Page 5 SAVE THESE INSTRUCTIONS Household use only a. for FCC 15b devices (15.105) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 6: Product Introduction
Product Introduction Robot Cleaner Top cover clasp Dust box removal button Wall sensors LDS sensor Reset button Panel Cleaning brush Dust box Function buttons Air outlet Bumper Charging contacts (×2) Infrared window/infrared receiving sensor Dust collection port Universal wheel Function buttons Carpet detection sensor Area cleaning button Side brush... -
Page 7: Base Station
Base station Function buttons Top cover Cleaning the mop Dirty water tank Recall/issue (robot cleaner) Clean water tank Start/Pause (base station) Dust bag Automatic dust collection Display screen Infrared lens Power connector Long cleaning brush Guide wheels (×4) Dust collection port Infrared lens (×2) Charging ports (×2) Cleaning disk... - Page 8 Step 4: Take out the clean water tank, remove the lid and fill it with clean water (the water Step 3: Find a suitable location to place the base station and ensure that it is placed volume should be below the MAX line). Then put back the clean water tank into the base horizontally;...
-
Page 9: App Installation And Use
ROIDMI APP Installation This appliance is compatible with the ROIDMI Platform, and can be controlled by the "ROIDMI" App. It supports both Android and iOS systems. 1. Scan the QR code below or search for "ROIDMI" on the app store to download and install;... -
Page 10: Product Operation And Programming
Product Operation and Programming Area 1 Area 2 1. Powering on/off the appliance Power on: long press the switch button, the switch button indicator lights up and the appliance enters standby state. Shut down: long press the switch button, the indicator light slowly goes out and shutsdown. 2. -
Page 11: Base Station Display Functions Introduction
Base station display functions introduction After the base station is connected to the power, the light strip is always on; when the dust is collected or in mop cleaning state, the light strip shows a gradient marquee light movement. Function buttons Light strip Mop cleaning Recall/issue (robot cleaner) -
Page 12: Product Disassembly And Cleaning
Product disassembly and cleaning The following cleaning steps should be carried out when the appliance is switched off Roller brush assembly, disassembly and cleaning Step 2: Roller brush cleaning Step 1: Remove the roller brush Use a cleaning brush to clean and cut out the hair and fibers entangled on the roller brush. Turn the appliance over, press the roller brush cover release buttons simultaneously. -
Page 13: Removal And Cleaning Of Dust Box And Filter Element
Note 1. Please replace the side brush according to the original factory configuration, so as not to affect the cleaning effect; 2. Please use a screwdriver carefully when replacing the side brush, to avoid injuring yourself; 3. The cleaning brush has a sharp blade which is used to cut the windings that are difficult to clean. Keep it out of reach of children. Removal and cleaning of dust box and filter element Step 1: Remove the dust box Step 2: Dump the dust box trash... -
Page 14: Mop Disassembly And Cleaning
Mop disassembly and cleaning Step 1: Remove the mop Step 2: Clean the mops Remove the mopping module from the disk and remove the mop from the mopping bracket; Rinse the mop with clean water and use it after it dries completely to prevent the dust from clumping and causing unpleasant odors when used again. -
Page 15: Base Station Cleaning
Base station cleaning Step 1: Replacing the dust bag When the dust bag is full, the dust-full indicator flashes. Replace the dust bag according to the display on the base station. It is recommended to replace it every 6-8 weeks; Open the top cover of Take out the dust bag Insert the dust bag... -
Page 16: Cleaning The Base Station Parts
Cleaning the base station parts Step 1: Clean the waste water tank Step 2: Replace the filter sponge of the water purification tank Open the top cover of the base station, take out the waste water tank, open the waste water Open the top cover of the base station and take out the clean water tank. - Page 17 Please check whether the roller brush is entangled with wool, wires and other windings. Remove the roller brush and clean it Error 4: Please check if the roller brush is stuck Please check whether there are any entangled objects such as wool and wires/cords on the indoor floors and clean them up The roller brush may tangle and needs to be cleaned regularly Please check whether the side brush is entangled with wool, wires or other debris.
-
Page 18: Common Problems
Please check whether the cleaning tray is in place or installed in place, and reinstall the cleaning tray Error 9: Please load the cleaning tray Please check if the dust bag is installed Error 10: The dust bag is not in place, please check if its installed. -
Page 19: Basic Specifications
(>3 minutes) through the APP; c.None of the above can solve the problem, please contact the after-sales service for repair. Basic Specifications Product Name Self-Cleaning and Emptying Robot Vacuum Product Model SDJ06RM/SDJ06RMB Operating Voltage 14.4V Rated Power Battery Capacity 5200mAh Charging limit Voltage 24V 1.2A... -
Page 20: Disposal
Equipment requirements: support Support devices with Android5.0 or iOS10 and above (iPhone 5 and above) This device contains WiFi module to support 802.11 b/g/n transmission protocol AC white power cord/L=1.35m European regulation 3*0.75mm2 H03VVF input plug 3PIN European regulation elbow / output plug 3Pin font TUV/VDE certification Disposal Correct disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. -
Page 21: Warranty Card
EN 55014-1:2017/A11:2020, EN IEC 55014-1:2021, EN 55014-2:2015, EN IEC 55014-2:2021, EN 61000-3-2:2014, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013, EN 61000-3-3:2013/A1:2019 EN 301 489-1 V2.2.3:2019, EN 301 489-17 V3.2.4:2020 EN 300 328 V2.2.2:2019, EN IEC 62311:2020, EN 50665:2017 2011/65/EU Service email: service@ roidmi.com Website: www.roidmi.com/en No.08.2022 Only applicable to the robot vacuum and mop cleaner model SDJ06RM/SDJ06RMB Made in China...
