HOFFLIGHTS LUXEMBOURG 1.1050.0111 Instruction Manual

IRH020.01
INSTRUCTION FOR LIGHT SOURCE/CONTROL GEAR
Applied to product family and references:
LUXEMBOURG 1.1050.0111 | 1.1050.0112 | 1.1051.0111 | 1.1051.0112
MALTA 1.1122.0211 | 1.1122.0212 | 1.1122.0214 | 1.1123.0211 | 1.1123.0212 | 1.1123.0214
OSAKA 1.1068.0111 | 1.1068.0112

Replacement instruction intended for a professional.

Without control gear.

In case of doubt contact us.
Attention: Before doing any works, switch off power of the mains supply or respectively of the connection lead and
follow our safety precautions given in the product installation manual included in the product packaging.
- Read with care the installation manual according to product family included in the containing product.
- Uninstall the product in the reverse established order in the installation manual.
- Make sure that the product is place on a stable, even and safe environment.
- Hand unscrew the front cover until reach the light source like shown in pictures. If is necessary, using appropriate
tools, make a small pry from edge to help remove the lens.
- The light source is assembled by screws, unscrew them to take it out.
- Collect all the removed parts of the replacement for a following reassembly.

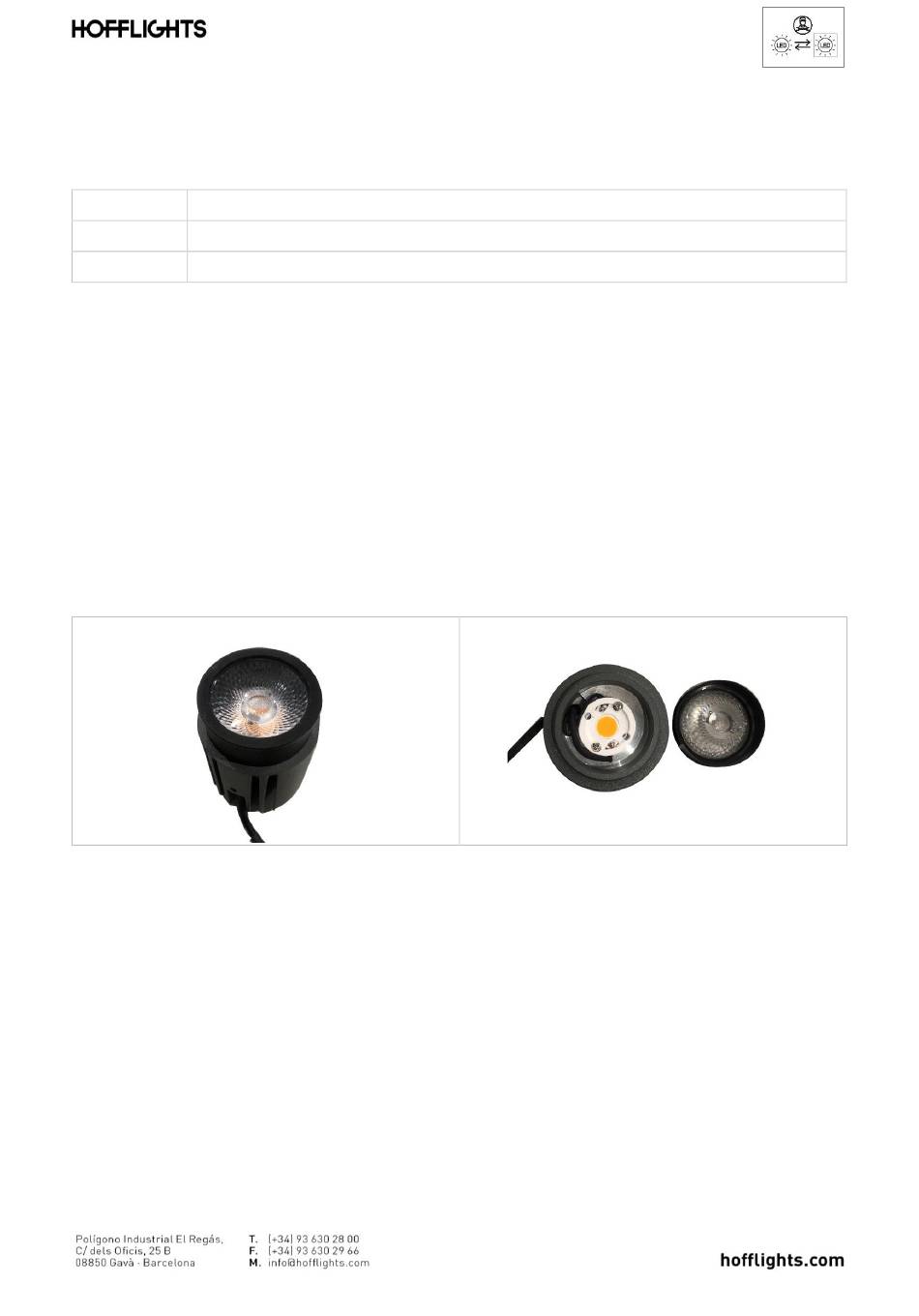

Pictures (
as an example, the current situation may differ)
- Once reached the light source, desolder the positive and negative cables from circuit.
- By cooling reasons, a heat sink compound is needed between LED module and metal base. Please, be sure that the
heat sink compound cover completely the LED module surface.
- In order to assemble again the product, proceed in the reverse order of this replacement instruction.
