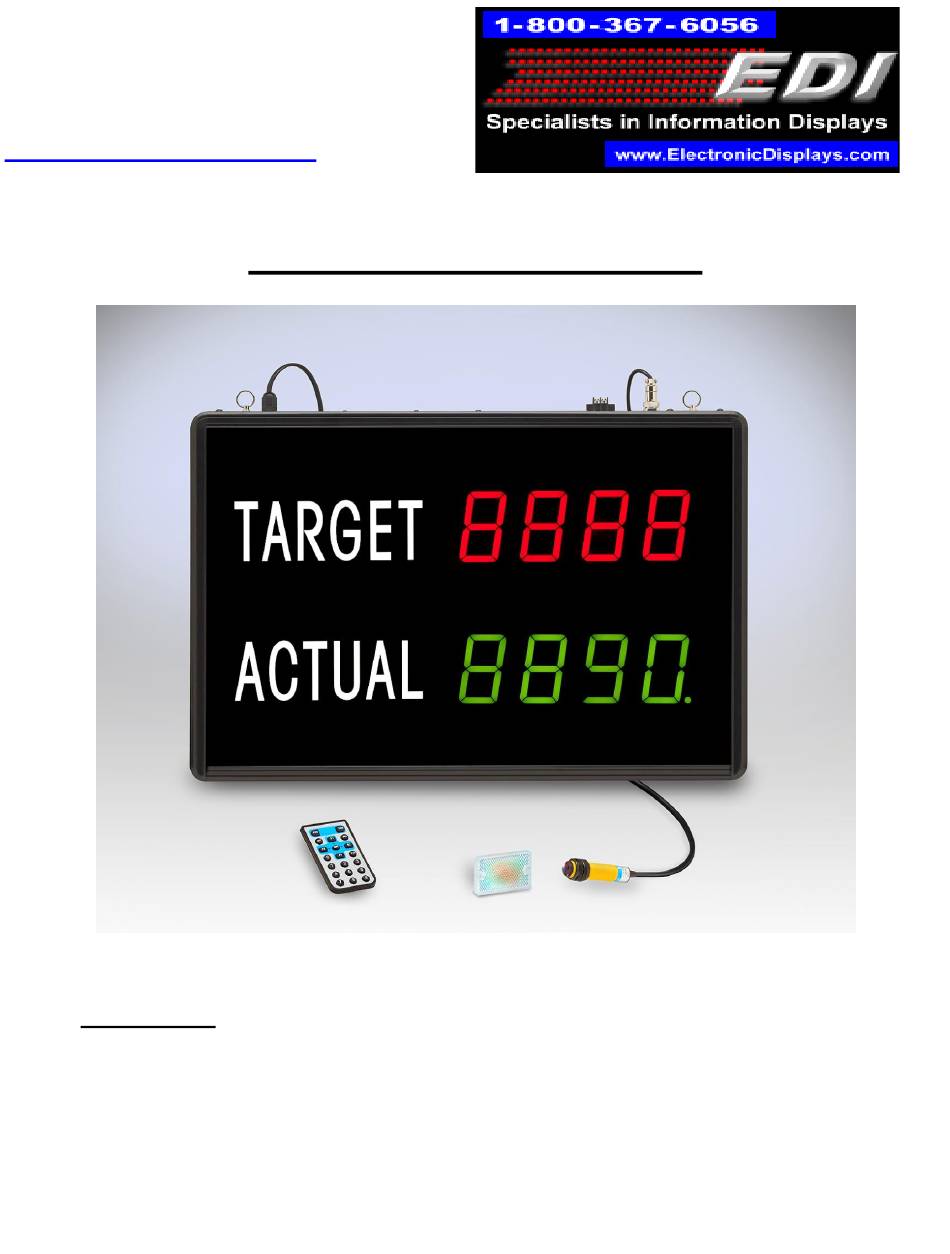

- Page 1 ELECTRONIC DISPLAYS INC. 135 S. CHURCH STREET ADDISON, ILL. 60101 www.electronicdisplays.com EDV225MPC-2L-N1-GR-IR Parts List: • EDV225MPC-2L-N1-GR-IR Qty: 1 • IR remote Qty :1 • Photo-Eye with Reflector Qty :1...
- Page 2 Programming the display To preset a value to the display, follow the guide below for the line that you want to set. The “SET” key is similar to “ENTER” and will be the main key to use. Target / Goal: 1.
- Page 3 Photo-Eye setup The display includes a Photo-Eye and a reflector. The Reflector must be mounted directly across from the Photo-Eye in the direction that it is pointing. The photo-Eye emits an infrared beam that reflects off the reflector plate. Each time that the beam is broken, the Actual line on the display will increment.
