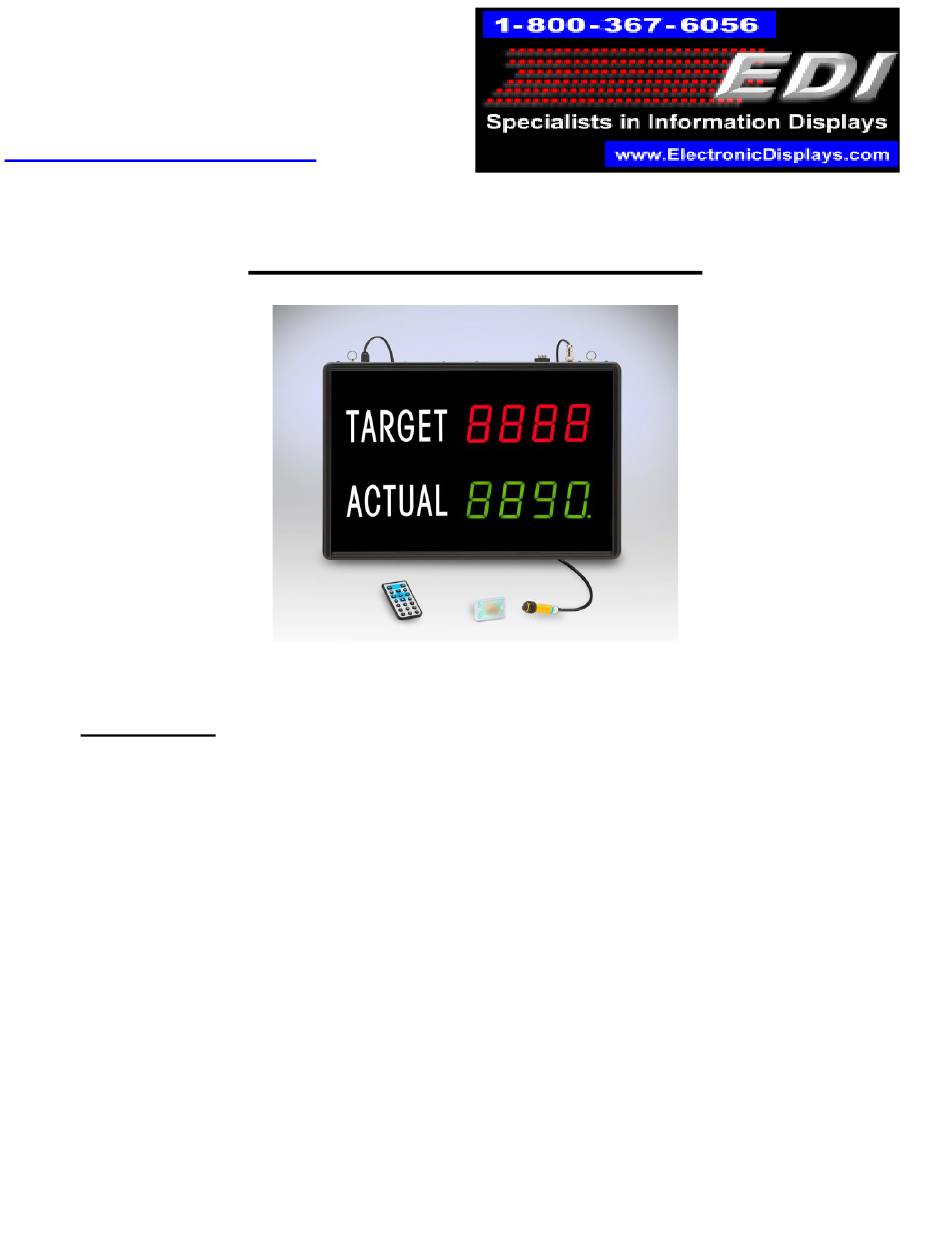

- Page 1 ELECTRONIC DISPLAYS INC. 135 S. CHURCH STREET ADDISON, ILL. 60101 www.electronicdisplays.com EDV225MPC-2L-N1-GR-IR Parts List: • EDV225MPC-2L-N1-GR-IR Qty: 1 • IR remote Qty :1 • Photo-Eye with Reflector Qty :1...
- Page 2 To configure the display using the IR remote follow these instructions. The “SET” button will be used to edit both lines. Keep pressing “SET” to rotate through the edit mode. Preset Top Line (TARGET) Enter the EDIT mode To edit the top line, point the IR remote toward the center of the display.
- Page 3 Notes A photo-eye and reflective plate are provided with the sign. The reflective plate needs to be installed in the direction the photo-eye is being pointed at. The photo-eye operates by sending an infrared beam in the direction that it is being pointed. The plate will reflect the IR beam back to the photo-eye thus incrementing the bottom line of the display.
