Hamamatsu ENERGETIQ LDTLS TLS-EQ-77H Operation Manual

Laser-driven tunable light source
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

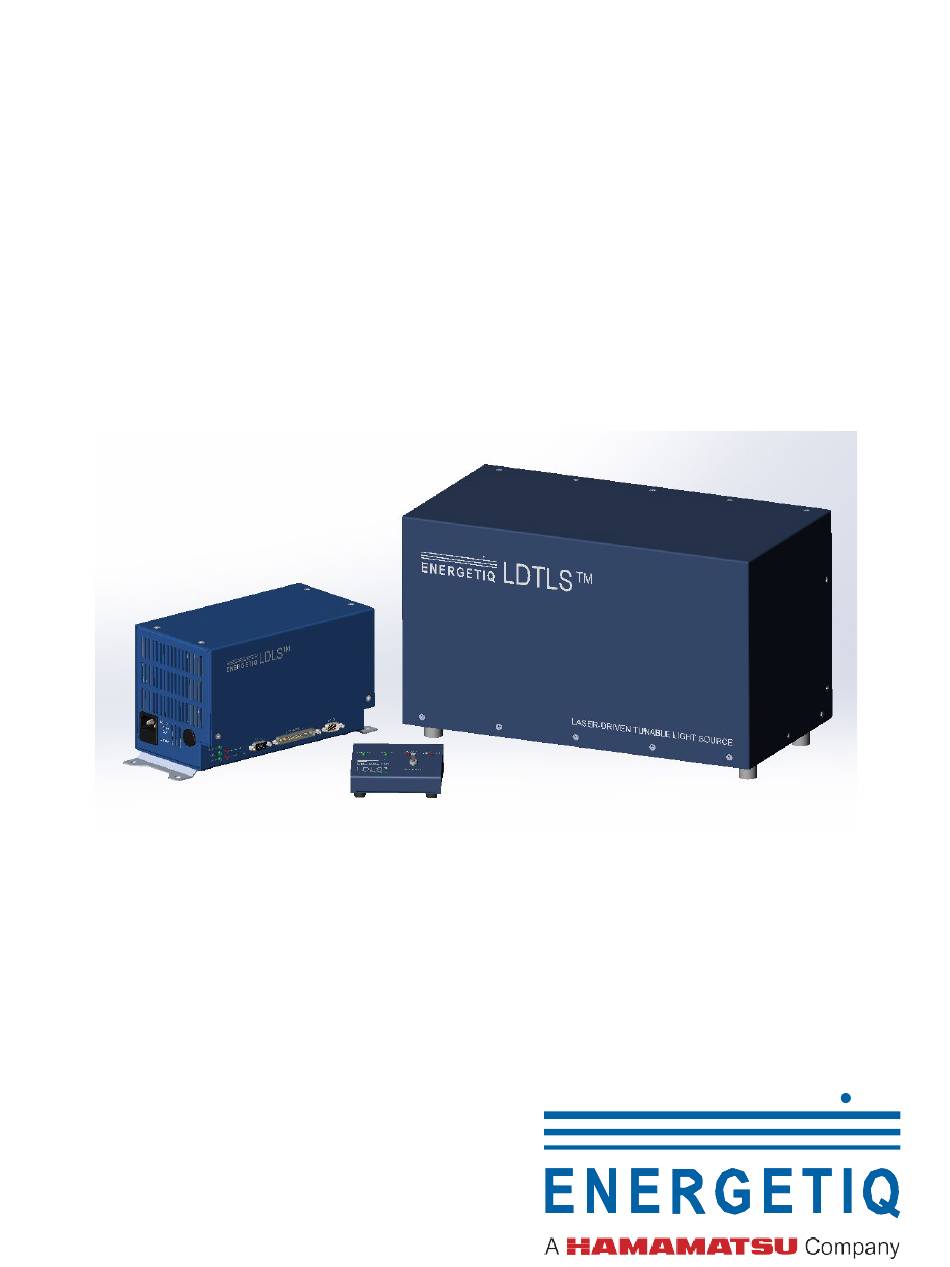

Model TLS-EQ-77H
Laser-Driven Tunable Light Source
LDTLS
®
Operation Manual
Revision 4, August 2022
Part Number DOC-7682

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENERGETIQ LDTLS TLS-EQ-77H and is the answer not in the manual?

Questions and answers

Related Manuals for Hamamatsu ENERGETIQ LDTLS TLS-EQ-77H

Summary of Contents for Hamamatsu ENERGETIQ LDTLS TLS-EQ-77H

  • Page 1 Model TLS-EQ-77H Laser-Driven Tunable Light Source LDTLS ® Operation Manual Revision 4, August 2022 Part Number DOC-7682...
  • Page 2 ©2022 Energetiq Technology, Inc. All rights reserved. Energetiq products are covered by the following patents: US 7435982, 7786455, 8525138, 8969841, 9048000, 9185786; Japan 5410958, 5628253; Korea 10-1507617; UK GB2450045. All technical information, including drawings, schematics and specifications contained in this document are the property of Energetiq and shall not be reproduced in whole or in part without the written consent of Energetiq.

  • Page 4: Table Of Contents

    Table of Contents Introduction ............................1 Safety instructions ..........................1 2.1. General Precautions ........................1 2.1.1 Definition of equipment and document symbols and designations ........... 2 2.2. Laser Information .......................... 3 2.3. Labels and Safety Notification....................... 4 2.4. Safety Interlocks ..........................5 2.5.
  • Page 5 7.1.3 Supplies and Tools Required ....................15 7.1.4 Parts Required .......................... 15 7.1.5 Procedure ..........................15 7.2. Packing the TLS-EQ-77H System....................25 7.2.1 Objective ..........................25 7.2.2 Safety Warnings and Personal Protective Equipment (PPE) ............25 7.2.3 Supplies and Tools Required ....................25 7.2.4 Procedure ..........................

  • Page 6: Introduction

    1. Introduction The TLS-EQ-77H Laser Driven Tunable Light Source is a compact, highly stable tunable light source. It utilizes the Energetiq EQ-77 Laser Driven Light Source® as a broadband light source. A monochromator is used to select the desired output wavelength. The monochromator output is fiber coupled to the TLS- EQ77H output.

  • Page 7: Definition Of Equipment And Document Symbols And Designations

    WARNING: This unit emits ultraviolet (UV) radiation that is harmful to humans. Avoid exposure to the direct or reflected output beam. Make certain that the appropriate output beam shields and optics are in place prior to energizing the unit. All interlocks must be satisfied prior to operation; failure to do so may lead to hazardous conditions.

  • Page 8: Laser Information

    Alternating current The TLS-EQ-77H is a Class 1 Laser Product. All appropriate laser safety measures should be in place before operating the system. Consult your facility's laser safety officer. Laser protective eyewear should be worn at all times while operating the system. For further safety information, refer to ANSI Z136.1 Standard for Safe Use of Lasers, available from Laser Institute of America (www.laserinstitute.org).

  • Page 9: Labels And Safety Notification

    2.3. Labels and Safety Notification The following safety labels appear on the product. Figure 1 shows the location of each label on the EQ-77 system which is part of the TLS-EQ-77H and Table 2 describes their meanings. Figure 1: EQ-77 Safety labels location Labels and Safety Notifications Label Picture Description...

  • Page 10: Safety Interlocks

    Manufacturer’s identification label on controller– gives the manufacturer’s name and address, and the model, serial number, and date of manufacture of the equipment. Table 2: Safety Label Meanings 2.4. Safety Interlocks The TLS-EQ-77H is equipped with interlocks to prevent operation of the device when any of the following conditions are present: •...

  • Page 11: System Description

    3.2. System Description The TLS-EQ-77H system consists of a Power Supply Controller unit, Lamp House, Remote Control unit, Monochromator Power Supply (not shown), and interconnecting cables (not shown). The system incorporates the Energetiq EQ-77 Laser Driven Light Source®, a monochromator, and custom optics. The following sections provide descriptions of the system components and controls, and give an overview of their functions.

  • Page 12: Lamp House Assembly

    Located on the EQ-77 Controller front panel are LED system status indicators. The function of these indicators is described below in Table 3. LED Label Meaning (when lit) POWER OK AC power is connected to the EQ-77 Power Supply Controller LAMP ON UV Light is on LASER ON...

  • Page 13: Optical Performance

    EQ-77 Lamp Component Description Nitrogen Purge Inlet These are the fittings for the required nitrogen purge gas. With no purge, ozone will form from atmospheric oxygen and attenuate the light output in the 220 – 280nm band. In addition, Nitrogen Purge Outlet atmospheric oxygen and water vapor will attenuate the output below 200nm.

  • Page 14: Environmental Requirements

    Monochromator Electrical Voltage: 24VDC  Power: 50W  Connector: 5-pin DIN female  Mating connector: 5-pin DIN male, Switchcraft 05GM5MX or equivalent  Pin connections: pins 3, 5: 24VDC; pins 1, 2, 4: 24V return  Purge gas: clean dry nitrogen, filtered to 5um, 20 psig (0.14 MPa) supply pressure Typical flow rate: 0.4 liters/minute ...

  • Page 15: External Interlock Connection

    Serial Interface Type: RS-485 4-wire (full duplex)  Connector: Male 9-pin d-sub  Termination: 120 ohms across receiver input (pins 2 and 7)  Interface protocol: see Chapter 4  Port settings: 9600 bps, 8 data bits, 1 stop bit, no parity, no handshaking ...

  • Page 16: Installation Procedure

    4.2. Installation Procedure 1. Place the Power Supply Controller on a stable surface. The Power Supply Controller must be placed within 2 meters of the Lamp House due to the length of the interconnecting cable. See drawing Section 10 for dimensional details. 2.
  • Page 17 Hold the fitting body with one wrench. Tighten the nut with the other. Figure 1: Water fittings 6. Connect the Remote Control Unit to the I/O connector on the Power Supply Controller using the supplied cable. The Remote Control Unit is shipped with an interlock jumper plug installed. To use the remote interlock function, connect a remote contact or solid-state switch across pins 1 and 3.

  • Page 18: Chiller Information

    7. Alternately, connect user’s control system to the I/O interface connector. See "Signal Connections" below. 8. If using the optional RS-485 interface, connect the host computer to the RS-485 connector on the Power Supply Controller. 9. Connect the host computer to the Monochromator control connector on the Lamp House using a suitable USB cable.

  • Page 19: Stopping

    5.2. Stopping To turn the LAMP off, simply turn the OPERATE Switch to the OFF position. If the lamp will not be used for some time, the AC supply can be turned off. To minimize wear on the ignition components, it is best to avoid frequently starting and stopping the lamp. It is recommended to run the lamp continuously if long off-periods are not required.

  • Page 20: Supplies And Tools Required

    7.1.3 Supplies and Tools Required Part Number Description Quantity 843-R-USB Power Meter, Newport Model 1919-R ----- Newport Power Detector, 818-UV with the OD3 Filter Installed 884-SMA SMA Fiber Adapter, Newport ----- Thorlabs FT1500EMT, 1500um, 0.39NA, 0.9M Length Fiber ----- Chiller TLS 4 5-10 in-lbs adjustable torque screwdriver #1 Phillips Torque Blade TLS 8...
  • Page 21 Step Instructions Visual Aid Connect the test equipment and TLS-EQ- 77H system as shown: • Connect one end of the 1500um fiber to the LDTLS bulkhead labeled OPTICAL OUTPUT. • Hand tighten the SMA connector. • Connect the opposite end of the 1500um fiber to the Power Detector.
  • Page 22 Step Instructions Visual Aid a. Turn the remote control ON. b. Wait 1 to 3 minutes for LAMP ON LED light to illuminate. a. On the computer, start the MH1034 application. b. Initialize the monochromator. Change Mono wl to 500nm.
  • Page 23 Step Instructions Visual Aid Change Filter Wheel to Pos. 2. Remove TLS system rear access panel. Loosen the 6 access panel screws using TLS 4. Remove TLS system cover. Loosen the 6 cover screws using TLS 4.
  • Page 24 Step Instructions Visual Aid On the right-hand side of the TLS system, remove support bracket. Loosen the 4 support bracket screws using TLS 12. Locate the 5 shaft lock screws.
  • Page 25 Step Instructions Visual Aid Caution: To avoid damaging the TLS system, you must perform this step. Loosen the 5 shaft lock screws using TLS Locate the 5 stage lock screws.
  • Page 26 Step Instructions Visual Aid Caution: To avoid damaging the TLS system, you must perform this step. Loosen the 5 stage lock screws using TLS 24. a. Ensure all 5 stages are centered. b. If necessary, center each stage using the corresponding adjustment knob.
  • Page 27 Step Instructions Visual Aid a. Locate the Z adjustment knob. b. Use fingers to adjust knob until the highest value is reached on the Power Meter. a. Locate the X1 and X2 adjustment knobs. b. Use fingers to adjust one knob at a time.
  • Page 28 Step Instructions Visual Aid If the highest value on the Power Meter is still not reached, complete the following steps: a. Loosen the 4 monochromator screws using TLS 8. b. Adjust monochromator angle until the highest value is reached on the Power Meter.
  • Page 29 Step Instructions Visual Aid On the right-hand side of the system, install support bracket. Tighten the 4 support bracket screws using TLS 12. Install TLS system cover. Tighten the 6 cover screws using TLS 4. Install TLS system rear access panel. Tighten the 6 access panel screws using TLS 4.

  • Page 30: Packing The Tls-Eq-77H System

    7.2. Packing the TLS-EQ-77H System 7.2.1 Objective This document details how to properly pack the main housing of TLS-EQ-77H systems for return shipping to Energetiq. 7.2.2 Safety Warnings and Personal Protective Equipment (PPE) Follow all applicable safety procedures. Use proper PPE as required. 7.2.3 Supplies and Tools Required Part Number...
  • Page 31 Step Instructions Visual Aid On bottom of inner cardboard box, place padding material. Energetiq recommends the following types of padding material: Packing foam sheets • Bubble wrap • If necessary, cut padding material using a utility knife. Place TLS-EQ-77H system on top of padding material in inner cardboard box.
  • Page 32 Step Instructions Visual Aid a. Place padding material on all four sides of inner box to fill empty spaces. b. If necessary, cut padding material using a utility knife. a. Place padding material on top of TLS-EQ-77H system to fill empty space. b.
  • Page 33 Step Instructions Visual Aid a. Prepare outer corrugated cardboard box approximately 25” x 17” x 18” in size. b. Tape outer box seams using packing tape. c. Leave top of box open. a. On bottom of outer cardboard box, place padding material.
  • Page 34 Step Instructions Visual Aid a. Place padding material on all 4 sides of outer cardboard box to fill empty spaces. b. If necessary, cut padding material using a utility knife. a. Place padding material on top of outer cardboard box to fill empty space. b.
  • Page 35 Step Instructions Visual Aid If available, place the following labels on the side of the outer cardboard box: a. “Fragile” label b. “Keep Dry” label c. “Do Not Stack” label d. “This Side Up” label If packing 2 TLS-EQ-77H systems, repeat steps 1-13.
  • Page 36 Step Instructions Visual Aid 1 System a. Place pallet on floor. b. Place first TLS-EQ-77H system box on the pallet and center the system. c. If packing 2 systems, place second TLS-EQ- 77H system box on top of the first TLS-EQ- 77H system box and center the system as shown.
  • Page 37 Step Instructions Visual Aid *If Packing 2 Systems* If packing 2 systems, tape the seam between the TLS-EQ-77H system boxes using packing tape. Make several wraps around the boxes. a. Wrap the TLS-EQ-77H system boxes using pallet wrap. Wrap several times around the boxes.
  • Page 38 Step Instructions Visual Aid a. Prepare 8 pallet edge protectors. b. Position pallet edge protectors evenly along the top cardboard box on the pallet. a. Cut 4 pieces of poly strap. b. If packing 1 TLS-EQ-77H system, cut each piece of poly strap to 10’. If packing 2 TLS-EQ-77H systems, cut each piece of poly strap to 16’.

  • Page 39: Fault Indicator Block Diagram

    Step Instructions Visual Aid a. On the overlapped part of the poly strap, place a poly strap seal. b. Crimp poly strap seal at both ends of the seal using the poly strapping sealer. c. Repeat this step for each poly strap. Ship the pallet of TLS-EQ-77H systems to Energetiq as air freight.

  • Page 40: Accessories

    See below if any problems are encountered in operating the EQ-77. Condition: Controller Fault and/or Lamp House Fault LED(s) are ON. Action: • Always begin operation of the source by verifying the interlocks. Confirm that the external interlock contact is closed (or that the black jumper plug is fully inserted •...

  • Page 41: Dimensional Drawings

    10.1. Dimensional Drawings 10.1.1 Controller Dimensional Drawings TLS-EQ-77 Controller (in. [mm]) 10.1.2 Lamp Dimensional Drawings TLS-EQ-77 Lamp in [mm]...

  • Page 42: I/O Connector Pin Assignment

    10.2. I/O Connector Pin Assignment Description Pin # Details Commands (Inputs) LAMP OPERATE OPERATE REQUEST, apply +5V (referenced to digital common) to initiate start cycle EXTERNAL INTERLOCK EXTERNAL INTERLOCK, apply +5V (referenced to digital common) to close interlock and allow operation. Status Indicators (Outputs) LAMP ON Pulled to digital common when ON...

  • Page 43: Remote Interface Schematic

    10.4. Remote Interface Schematic 5V Power Pin 5 Isolated 0.1uF 5VDC supply Contact or Input solid-state switch Pin 12 0.1uF Contact or solid-state switch Input Pin 13 Outputs Load Pins 1, 2, 3, 4 5V Return Pins 6, 7, 8, 9 5V Power Pin 5 Isolated...

  • Page 44: Serial Interface Commands

    10.5. Serial Interface Commands The RS-485 serial interface is provided for user adjustment of laser operating power, in order to increase or decrease light output. The EQ-77 is shipped with the laser power set to a factory default value of 100% of full scale power.
  • Page 45 Energetiq Technology, Inc. 205 Lowell St. Wilmington, MA 01887 Phone: +1 781-939-0763 Fax: +1 781-939-0769 Email:info@energetiq.com www.energetiq.com DOC 7682 Rev 4, 8/22...
