Silver Peak NX-10700 Quick Start Manual

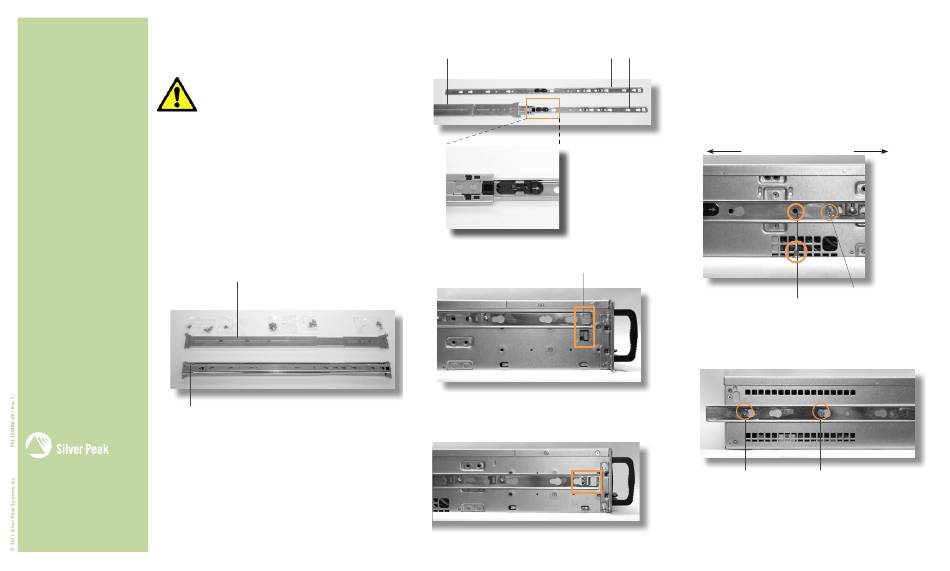

Mount the chassis in a 4-post server rack. Because the screws needed
Quick Start Guide
may vary from one rack model to the next, the rails kit comes with
multiple packages of screws. Spares are included.
• Supplement •
RACK MOUNT
I N S T R U C T I O N S
• 2-RU WITH RAILS •
Please make sure that you install the chassis covers and chassis rails onto
the chassis before you install the chassis into the rack.
NX-10700
NX-9700
NX-8700 A

Install the inner chassis rails onto the appliance

NX-7700
Before installing the chassis rail, be sure to remove all external devices
and connectors from the appliance.
NX-5700
1. Included in the shipping package are a pair of rail assemblies. In each
NX-3700
rail assembly, locate the inner and the outer rail.
NX-2700
Outer rail mounts to the rack
GX-1100

Before You Begin

‰ Check your packing slip to
verify that you have all the
necessary items.
‰ Make sure you have a standard
Phillips screwdriver.
Inner rail mounts to the appliance
2. Pull the black latch in the direction of the arrow to release the inner
rail, and pull it out from the rail assembly. The inner rails attach to the
chassis and the outer rails install in the rack.
Silver Peak Systems, Inc.
4500 Great America Parkway
Suite 100
Santa Clara, CA 95054
1.877.210.7325 (toll-free in USA)
+1.408.935.1850
www.silver-peak.com/support
CAUTION
Due to the appliance's weight and size, Silver
Peak recommends that two people mount the chassis in a
4-post server rack, using the chassis rails that ship with
the appliance. Alternatively, when using a lift, it's possible
to install the appliance safely with one person.
Toward rear end of chassis Front end of chassis
Outer rail
IMPORTANT: The latch
arrows point toward the
front end of the chassis
3. Locate the square hole at the end of the inner rail and the catch at
the front side of the appliance chassis.
4. Place hole over catch and move the inner rail toward the rear to
secure.
5. For each side, you'll need to use the following screws:
• One loose 10#-32 screw for anchoring the rail's alignment to the
Inner rails chassis. Here, the size and shape of the hole in the rail is the same
as the one in the appliance chassis.
• Three 10#-32-R screws (previously attached to the chassis) for
securing the rail through keyhole slots. Relative to the anchor
screw, one screw is between the alignment screw and the appliance
faceplate.
Rear end of chassis
For anchoring alignment – 10#-32
The remaining two screws are between the alignment screw and
the rear of the chassis.
Rear end of chassis
For keyhole slots -- 10#-32R
6. Repeat steps 2 through 5 to install the other rail onto the chassis.
Front end of chassis
For keyhole slots – 10#-32R
Page 1 of 2
