Table of Contents

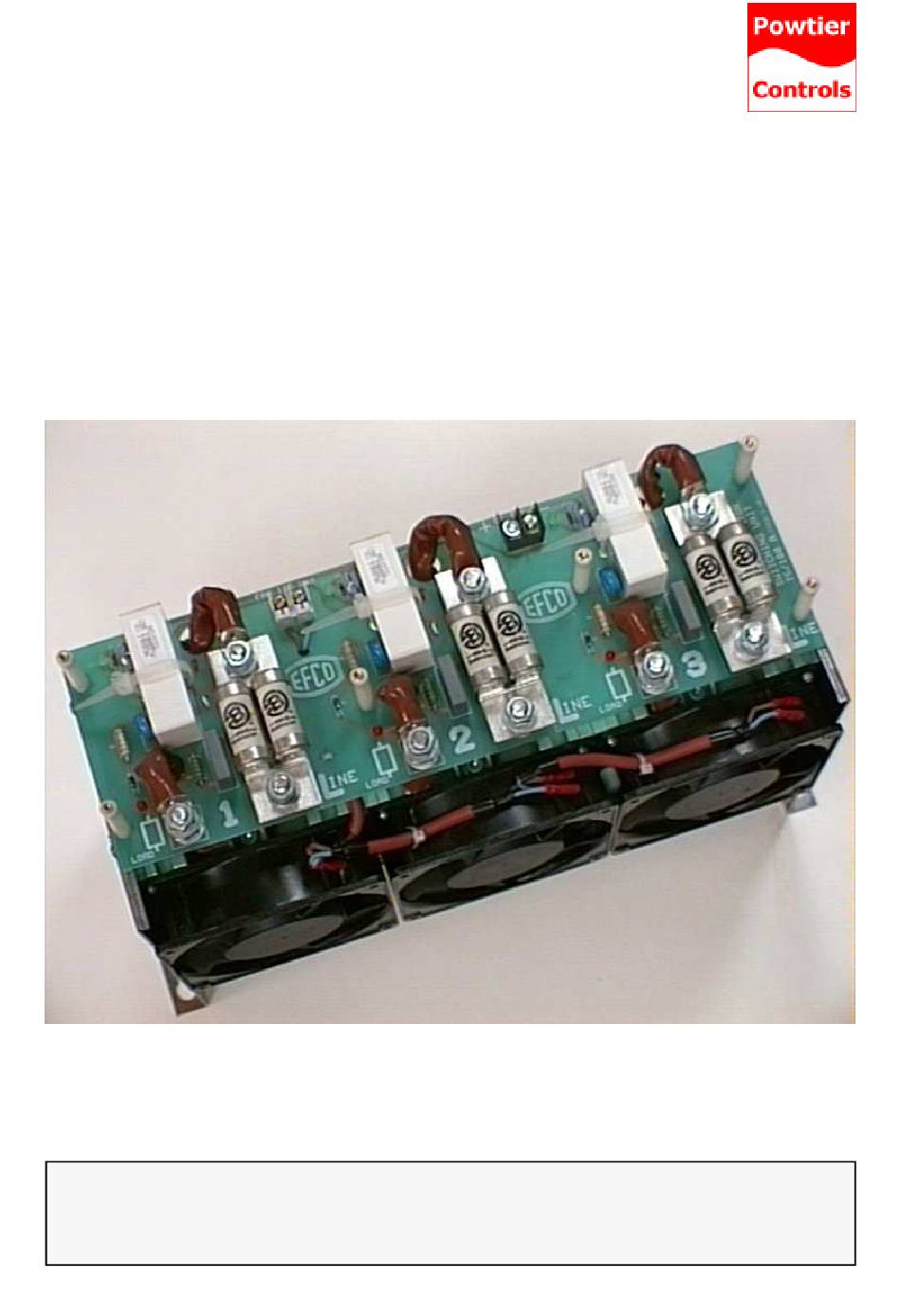

Powtier Controls Limited
THYRISTOR SWITCHING UNITS
CONTENTS
DESCRIPTION ................................2
EMC COMPLIANCE ........................2
INSTALLATION ...............................3
230E\IM
TC230E
MAXIWAT RANGE OF
INSTRUCTION MANUAL
DIAGNOSTIC AID - LEDs............... 6
SPECIFICATION ............................ 7
- 1 -
TC230E Instruction Manual
20 June 1998
Issue 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXIWAT TC230E Series and is the answer not in the manual?

Questions and answers

Related Manuals for Powtier Controls MAXIWAT TC230E Series

Summary of Contents for Powtier Controls MAXIWAT TC230E Series

  • Page 1 Powtier Controls Limited TC230E Instruction Manual TC230E MAXIWAT RANGE OF THYRISTOR SWITCHING UNITS INSTRUCTION MANUAL CONTENTS DESCRIPTION ........2 DIAGNOSTIC AID - LEDs....6 EMC COMPLIANCE ......2 SPECIFICATION ......7 INSTALLATION .......3 ORDERING INFORMATION... 7 230E\IM - 1 - 20 June 1998...

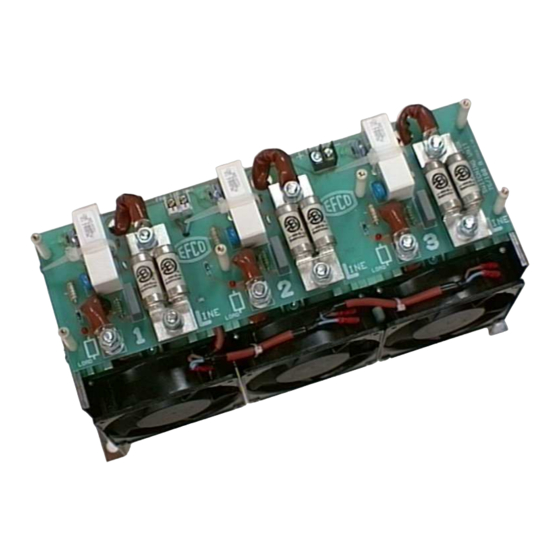

  • Page 2 TC230E Instruction Manual Powtier Controls Limited DESCRIPTION The MAXIWAT TC230E range of thyristor switching family comprises assemblies with line current units, combine high power capability with compact capacities of 40A, 55A, 75A, 100A and 125A. Each dimensions. With the emphasis on safety and assembly is fully isolated and incorporates high reliability, the units are ruggedly housed.
  • Page 3 Powtier Controls Limited TC230E Instruction Manual INSTALLATION Under normal operating conditions it is important Table 1. Fuses and fuse ratings for the TC230E that the TC230E power switching unit should be MAXIWAT range. mounted VERTICALLY (as shown in figure 1 and 2), with the FAN end facing DOWNWARDS.
  • Page 4 TC230E Instruction Manual Powtier Controls Limited LOGIC SIGNAL TEMPERATURE CONTROLLER FAN SUPPLY 115 OR 240 Vrms LED1 (GREEN) INPUT INDICATOR LED1 LED1 TC230E/1 TC230E/2 MUST FUSE FUSE MOUNTED VERTICALLY LED2 LED2 LOAD LOAD LINE LINE LED2 (RED) FUSE/LOAD/THYRISTOR INDICATOR AIR FLOW...
  • Page 5 Powtier Controls Limited TC230E Instruction Manual LOGIC SIGNAL TEMPERATURE FAN SUPPLY CONTROLLER 115 OR 240 Vrms LED1 (GREEN) INPUT INDICATOR LED1 LED1 LED1 MUST TC230E/1 TC230E/2 TC230E/3 MOUNTED FUSE FUSE FUSE VERTICALLY LED2 LED2 LED2 LOAD LOAD LOAD LINE LINE...
  • Page 6 TC230E Instruction Manual Powtier Controls Limited DIAGNOSTIC AID - LEDs The light emitting diode, LED 1 (green) near to the input terminals is used to indicate the input status. When the input is 0V, LED 1 is `OFF' and when the input is greater than 5Vdc, LED 1 is `ON'.
  • Page 7 Powtier Controls Limited TC230E Instruction Manual TECHNICAL SPECIFICATION Current rating 40 to 125 A. INPUT Input/Output isolation 2500 Vrms. Supply frequency 40 to 70 Hz. Logic 5 - 30 Vdc ENVIRONMENT Must operate at >4.5 Vdc Must release at <1.5 Vdc Ambient operating temp.
  • Page 8 TC230E Instruction Manual Powtier Controls Limited Figure 4. Dimensions. DIMENSIONS Current Width Height Depth Fixing Fixing Fixing rating centre`A' centre`B' holes`C' (For configurations in figure 1) 40-55A 75-155A (For configurations in figure 2) 40-55A 75-155A All dimensions are in mm.
