AKAI

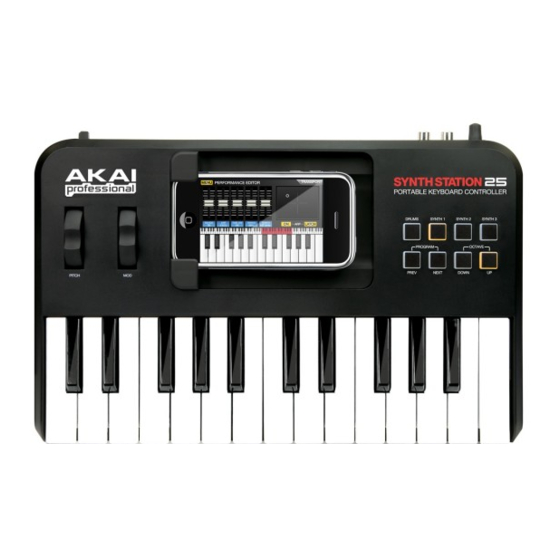

SynthStation 25
[AD03]
Service Manual
Rev. 1
2011.01.24
ATTENTION!
THIS DOCUMENT CONTAINS SENSITIVE
PROPRIETARY INFORMATION.
ALL RECIPIENTS MUST HAVE A CURRENT
NON-DISCLOSURE AGREEMENT ON FILE
WITH AKAI PROFESSIONAL.
DO NOT MAKE ILLEGAL
COPIES OF THIS DOCUMENT
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by Akai Professional. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of this
document is strictly prohibited. If you are not authorized, please contact Akai Professional and
destroy
all
copies
of
this
document.
You
may
contact
Akai
Professional
at
support@akaipro.com.
Copyright Akai Professional
Confidential
Akai Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SynthStation 25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akai SynthStation 25

Summary of Contents for Akai SynthStation 25

  • Page 1 The information in this document contains privileged and confidential information. It is intended only for the use of those authorized by Akai Professional. If you are not the authorized, intended recipient, you are hereby notified that any review, dissemination, distribution or duplication of this document is strictly prohibited.
  • Page 2 As the owner of the copyright to the Manual, Akai does not give you the right to copy the Manual, and you agree not to copy the Manual without the written authorization of Akai. Akai has no obligation to provide to you any correction of, or supplement to, the Manual, or any new or superseding version thereof.
  • Page 3 ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED AKAI SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND AKAI SHALL HAVE NO LIABILITY TO THAT ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
  • Page 4 The product is exposed to water or excessive moisture, c. The AC power supply plug or cord is damaged, d. The product shows an inappropriate change in performance or does not operate normally, or e. The enclosure of the product has been damaged. Confidential Akai Service Manual...
  • Page 5 AD03 Main PCB BOM and schematic Confidential Akai Service Manual...
  • Page 6 PADS File: C:\PADS Projects\BillOfMaterials.rep Date: 5/28/2010 Time: 1:34:28 PM Description Qty Ref. Des. Approved Mfr. Mfr's P/N 0-09-0116 POT 50KA DUAL HORZ 15mm (7mm D) D-SHAFT WITH TAIWAN ALPHA ELECTRONIC CO RD902F-20E1-15F-A50K- BUSHING 00D28(RoHS) 0-12-0101 RES 100 OHM 1/10W 5% 0603 12 R59 R67 R69 R72 R78- 79 R94 R96-98 R101- 0-12-0102...
  • Page 7 PADS File: C:\PADS Projects\BillOfMaterials.rep Date: 5/28/2010 Time: 1:34:28 PM Description Qty Ref. Des. Approved Mfr. Mfr's P/N 0-13-4752 RES 47.5K OHM 1/10W 1% 0603 R60 R75 0-17-0103 RES CHIP ARRAY 4 X 10K OHM 1/16W 5% ISOLATED R90 R95 VENKEL CRN16-4-103JCT c-c=0.8mm 742C083103J...
  • Page 8 PADS File: C:\PADS Projects\BillOfMaterials.rep Date: 5/28/2010 Time: 1:34:28 PM Description Qty Ref. Des. Approved Mfr. Mfr's P/N 1-62-0103 CAP 0.01uF X7R 0603 10% 50V C33 C39 Walsin Technology Corporation 0603B103K101CT Walsin Technology Corporation 0603B103K500CT KEMET Electronics Corporation C0603C103K5RACTU Digi-Key Corporation 399-1091-1-ND Pan Overseas Electronic Co., LTD.
  • Page 9 PADS File: C:\PADS Projects\BillOfMaterials.rep Date: 5/28/2010 Time: 1:34:28 PM Description Qty Ref. Des. Approved Mfr. Mfr's P/N 2-51-4403 TRANS PNP 2N4403 40V 800mA SOT-23 Q3 Q5-7 Q12 Q14 FAIRCHILD SEMI MMBT4403 DIODES INC. MMBT4403-7-F(RoHS) ON SEMICONDUCTOR MMBT4403LT1G(RoHS0 Micro Commercial Components MMBT4403-TP(RoHS) 2-54-2114 TRANS SMALL-SIGNAL NPN 2SD2114K/BBV SC59...
  • Page 10 PADS File: C:\PADS Projects\BillOfMaterials.rep Date: 5/28/2010 Time: 1:34:28 PM Description Qty Ref. Des. Approved Mfr. Mfr's P/N DRM_AP6256A_S Voltage Regulator Adjustable 800mA SOT-25 "A" Pinout Anwell Semiconductor Corp AP6256A-ADJ SOT-25 OT-223-5 DRM_CAPE_2_5 CAP 10uF ELEC 20% 25V 2x5x5mm _5_10uF_25V DRM_CON_FLAT Con Flat Flex, 16-Pin, 90deg, SM, Top Contacts _FLEX_16- PIN_TOP-...
  • Page 11 LMV324M IPOD_OUT_R AUD_R_OUT 3.32k 1% 47.5k 1% 0.1uF +VRAW 3.24k 1% 0.1uF +VRAW +3.3V +3.3V V_AUX +3.3V DRM_CON_MINI_USB_5P_SMP COMPANY: AKAI VBUS USB DISCONNECT TITLE: VBUS ANALOG_TOP AD03 MAIN PCB USB_DIS MBT4401 SPARES V_BAT MBT4401 1.50k 1% PART NUMBER: 9-40-0564-B U8-E...
  • Page 12 CFLY- CFLY+ -4VA DRM_AP6256A_SOT-25_PKG-A VOUT 2 IN 47uF,16V TPS60403 100k 100k 24.3k 1% AUDIO_RAIL_EN 100k 10k 1% COMPANY: 10k 1% AKAI MMBD4148 MUTE_CONTROL 47uF,16V 10uF 25V TITLE: MBT4403 0.1uF CFLY- CFLY+ MBT4401 MBT4401 AD03 MAIN PCB 2 IN MBT4401 TPS60403 0.1uF...
  • Page 13 AD03 Power supply BOM and schematic Confidential Akai Service Manual...
  • Page 14 PADS File: C:\PADS Projects\BillOfMaterials.rep Date: 5/28/2010 Time: 10:14:18 AM Description Qty Ref. Des. Approved Mfr. Mfr's P/N 0-12-0102 RES 1K OHM 1/10W 5% 0603 R2 R6 R8 0-12-0104 RES 100K OHM 1/10W 5% 0603 R5 R7 R9-10 PANASONIC INDUSTRIAL CO ERJ-3GEYJ104V Walsin Technology Corporation WR06X101_J...
  • Page 15 PADS File: C:\PADS Projects\BillOfMaterials.rep Date: 5/28/2010 Time: 10:14:18 AM Description Qty Ref. Des. Approved Mfr. Mfr's P/N 2-54-6306 TRANS SMALL-SIGNAL DUAL P-CHAN EN-MOSFET FAIRCHILD SEMI FDC6306P FDC6306P ISOLATED SSOT-6 2-61-0033 IC REG VOLTAGE BA033FP LDO 3.3V 1A TO-252 ROHM BA033FP 2-61-2940 REG VOLTAGE LM2940IMP-5.0 LDO 5V SOT-223 NATIONAL SEMICONDUCTOR...
  • Page 16 MMBD4148 +3.3V V_AUX +VRAW MBT4401 100k CONNECTOR TO MAIN PCB VBUS 100k MMBD4148 V_BAT S6B-PH-KL(LF)(SN) CONNECTOR TO DOCK PCB S4B-PH-K-S(LF)(SN) COMPANY: AKAI TITLE: AD03 PART NUMBER: 9-40-0565-5 9-79-0565-5-0 ASSY NUMBER: DRAWN: DATED: 5/27/10 FILENAME: SIZE: AD03PS406D.sch RELEASED: DATED: SCALE: SHEET:...
  • Page 17 AD03 Dock BOM and schematic Confidential Akai Service Manual...
  • Page 18 PADS File: C:\PADS Projects\BillOfMaterials.rep Date: 5/28/2010 Time: 10:08:20 AM Description Ref. Des. Approved Mfr. Mfr's P/N 0-12-0000 RES 0.0 OHM 1/10W 5% 0603 R8-9 Yageo RC0603JR-070RL Digi-Key Corporation 311-0.0GRCT-ND Walsin Technology Corporation WR06X000P 0-12-0104 RES 100K OHM 1/10W 5% 0603 R10-11 PANASONIC INDUSTRIAL CO ERJ-3GEYJ104V...
  • Page 19 LINE_OUT_L IPOD_OUT_R AUD_OUT_L LINE_OUT_R IPOD_AUD_RET AUD_RET AUD_RET AUD_R_OUT IPOD_DET CH_GND 32 33 34 35 NC NC NC NC 100 ohm 1% COMPANY: AKAI BSS138 BSS138 100k 100k TITLE: AD03 Dock PCB PART NUMBER: 9-40-0566-3 ASSY NUMBER: 9-79-0566-3-0 DRAWN: DATED: 5/27/2010...
  • Page 20 AD03 Keybed PCB Schematic Confidential Akai Service Manual...
  • Page 21 ! "# % ! & ' & (" ) ¹ (" ) + & ,-+ ' ! + ./ 0+,1+' $ (- / “  t)- 2 $$ 3 < 2 $$ 3 “ ( /4 5+" 6!  ¹ J "...
