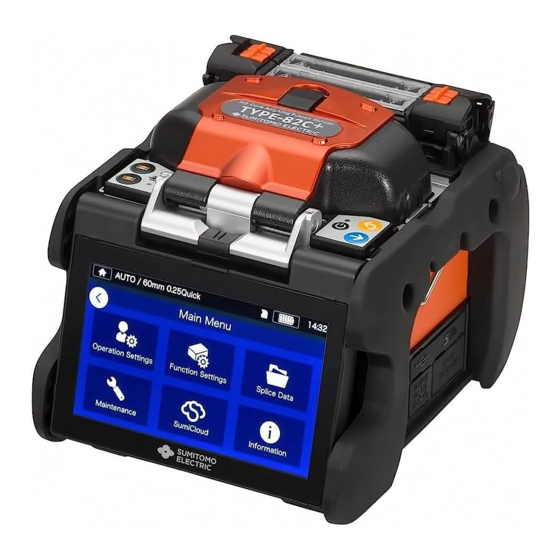

Sumitomo TYPE-82C+ Quick Reference Manual
Hide thumbs Also See for TYPE-82C+:

Advertisement

Quick Links

TYPE-82C
Quick Reference Guide
■Home screen
Splice program Heater program
Display the Settings panel
Power source type
Change image view
Display/Non-display icons
Start the splicing process
Start the arc test
■Settings panel
To display the Settings panel, tap the
Settings panel icon (
Wireless LAN SD
Power Time
Home Screen icons
) on Home screen.
Settings panel icons
Display the menu screen.
Set up Splice Program.
Set up Heater Program.
Play a help video.
Log
in
to
Administrator
mode by entering passcode.
Adjust the volume.
Heater 2
Heater 1
Heater 2
Heater 1
Heater panel
Heater 2
Heater 1
Control panel
Start the heating process on heater 1 and 2
View splice data after splicing
Adjust the zoom of a fiber image
Adjust display brightness
Adjust the focus of a fiber image
Capture a fiber image
■New Technology
NanoTune™
The splice error prevention system
While splice program is selected to "AUTO
NanoTune",
the NanoTune
cleaved fiber surface and then sets up optimal
splice condition.
When the NanoTune™ is applied to poor fiber end face, a
NanoTune™ screen appears. Even in AUTO NanoTune program, the
Nanotune™ is not applied to good end face, and the usual splice
screen is displayed.
Using Keypad
Start and cancel
Power ON/OFF
heating cycle
analyzes the
Reset
Set
