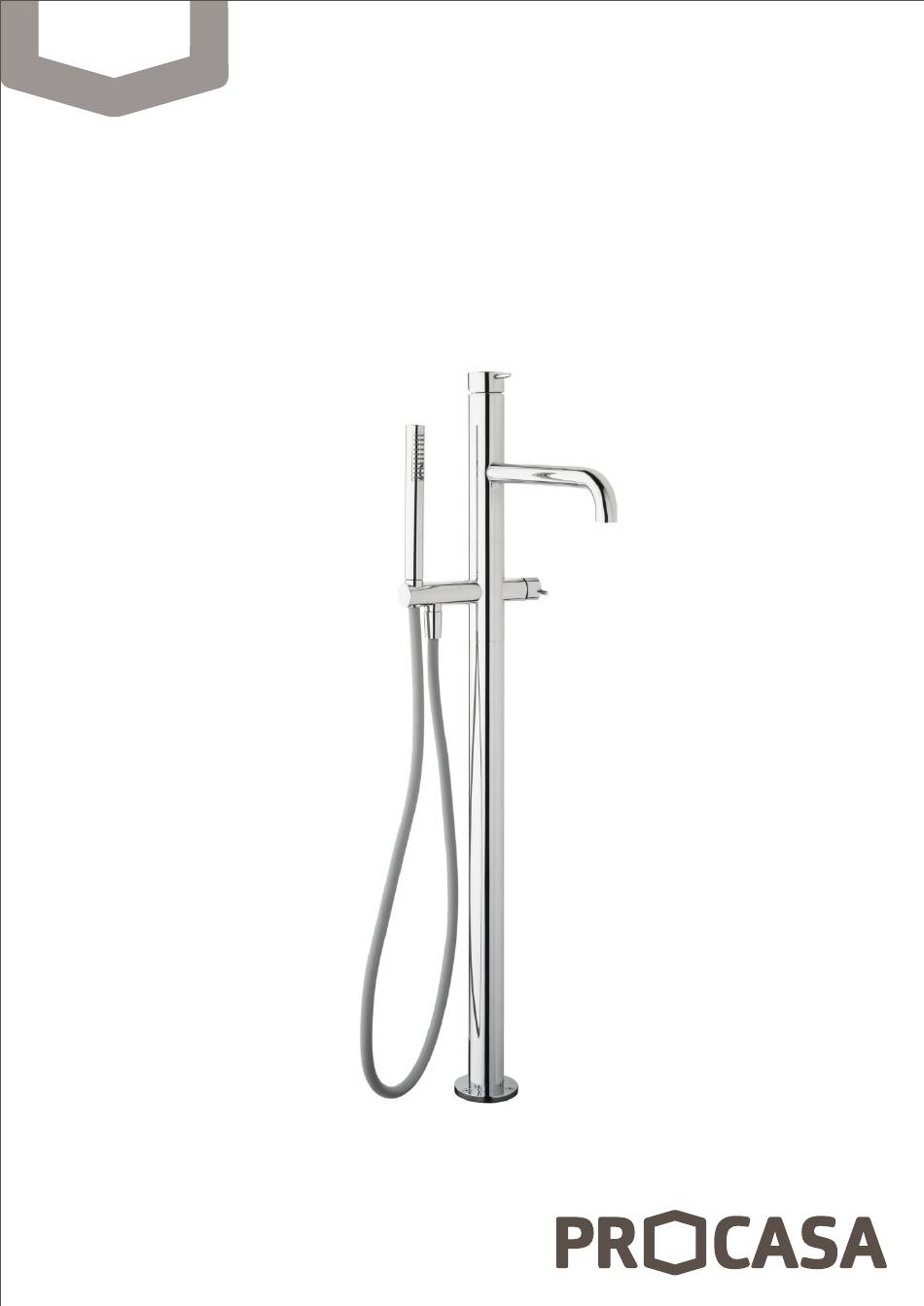

- Page 1 TECHNICAL FILES TECHNISCHE FICHE T1.33 FREESTANDING BATHTUB MIXER WITH 2 EXITS VRIJSTAANDE BADMENGKRAAN INCL HANDDOUCHE...
- Page 2 TECHNICAL FILES TECHNISCHE FICHE T1.33 TECHNICAL DRAWING (MEASUREMENTS IN MM) TECHNISCHE TEKENING (AFMETINGEN IN MM) THE DIMENSIONS MIGHT VARY SLIGHTLY FROM ONE FINISH TO THE OTHER. DE AFMETINGEN KUNNEN LICHT AFWIJKEN AFHANKELIJK VAN DE OPPERVLAKTE-AFWERKING. Ø23 50° 50° *AVAILABLE IN CHROMED BRASS; WHITE; BLACK AND PVD FINISHES.
-
Page 3: Component List
TECHNICAL FILES TECHNISCHE FICHE T1.33 COMPONENT LIST COMPONENT DRAWING ONDERDELENLIJST EXPLOSIETEKENING T1.33 Nº AERATOR P27464 PERLATOR SPOUT UITLOOP FOOT MOUNTING P32122 INBOUWDEEL MIRROR FLOOR BASE FIXING VLOERBEVESTIGINGSPLAAT PLATE ROSET INCREASED ELEMENT STIJGBUIS TAP BODY KRAANLICHAAM CARTRIDGE P26377 CARTOUCHE LOCKNUT BORGMOER... - Page 4 1- Firstly, you should place the spout on the designated place in the picture, then proceed to tighten it with the umbrak key. 2 - Before fixating the base (internal part) from the T1.33 to the ground, choose its orientation according to the orientation desired for the spout.
- Page 5 TECHNICAL FILES TECHNISCHE FICHE T1.33 ASSEMBLY INSTRUCTIONS MONTAGE INSTRUCTIES PICTURE 4 PICTURE 6 TEKENING 4 TEKENING 6 HOT WATER INLET WARM WATER TOEVOER COLD WATER INLET KOUD WATER TOEVOER HOLE MÁX. 70 MM MÁX. 70 MM 1 - Proceed with the water connection tightening the tubes corresponding to cold and hot water respectively.
- Page 6 TECHNICAL FILES TECHNISCHE FICHE T1.33 ASSEMBLY INSTRUCTIONS MONTAGE INSTRUCTIES PICTURE 8 PICTURE 7 TEKENING 8 TEKENING 7 1- Remove the white protection cap. 2- Connect the water to remove any possible debris from the plumbing. 1- Verwijder de beschermkap. 2- Sluit het water aan zodat alle vervuiling uit de leiding gespoeld kan worden.
- Page 7 TECHNICAL FILES TECHNISCHE FICHE T1.33 PRODUCT CARE WARRANTY ONDERHOUDSINSTRUCTIES GARANTIE We recommend periodical maintenance of the taps. is will contribute to Water Evolution waarborgt alle producten in geval van fabricagefouten als keep them in good condition for a long time.
- Page 8 TECHNICAL FILES TECHNISCHE FICHE T1.33 CARTRIDGE REPLACEMENT AERATOR REPLACEMENT VERVANGING VAN DE CARTOUCHE VERVANGING PERLATOR 1- Unscrew the handle with the help of the umbrak key. 1- Use the tool supplied in the spout box to unscrew the aerator. 2- Remove the handle from the top of the cartridge.
