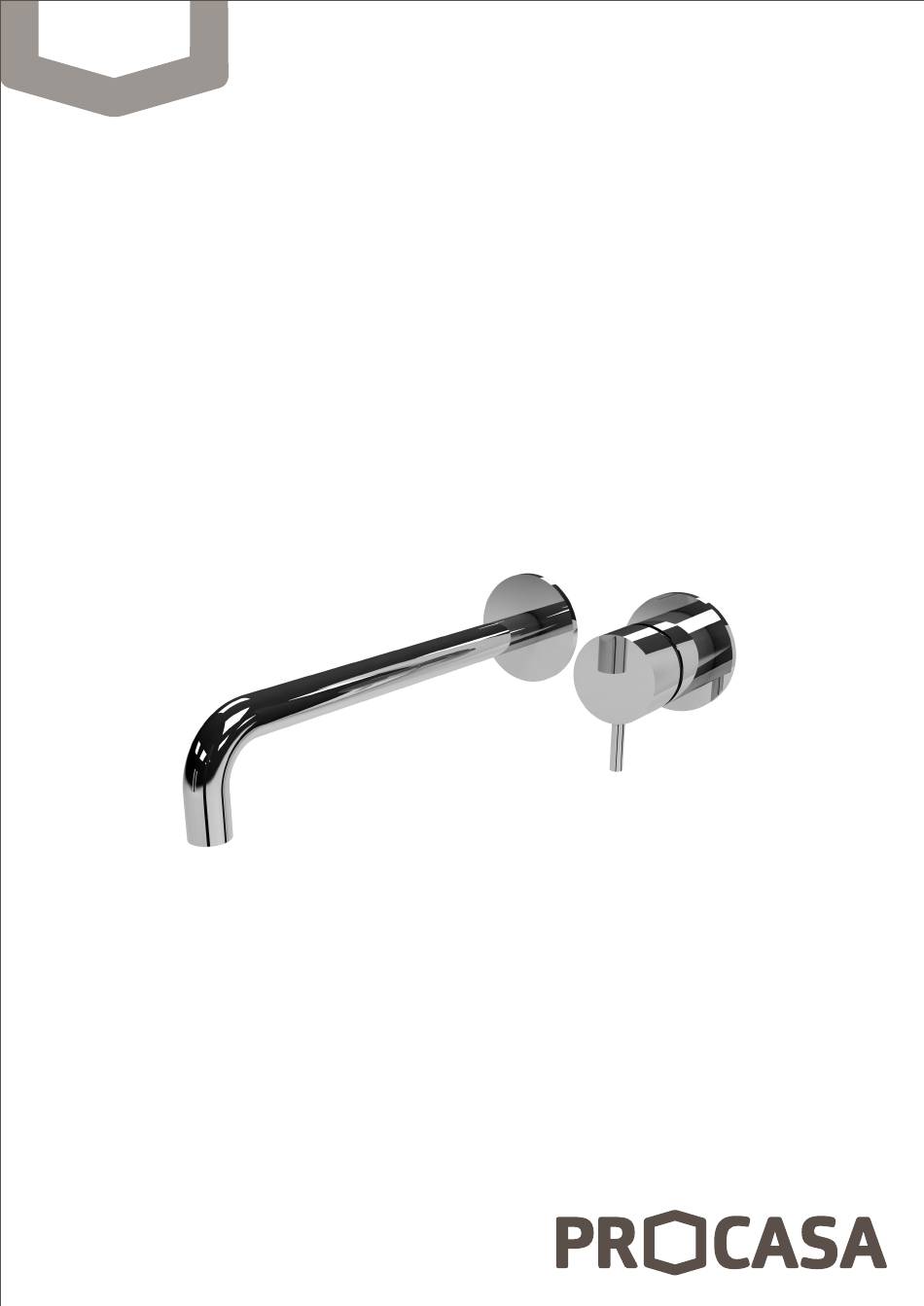

- Page 1 TECHNICAL FILES TECHNISCHE FICHE T1.16B.N WALL MOUNTED WASHBASIN MIXER WITH 2 HOLES WITH CLICK CLACK VALVE GREEP VOOR WASTAFELMENGKRAAN MUURINBOUW MET CLIC-CLAC...
- Page 2 TECHNICAL FILES TECHNISCHE FICHE T1.16B.N TECHNICAL DRAWING (MEASUREMENTS IN MM) TECHNISCHE TEKENING (AFMETINGEN IN MM) THE DIMENSIONS MIGHT VARY SLIGHTLY FROM ONE FINISH TO THE OTHER. DE AFMETINGEN KUNNEN LICHT AFWIJKEN AFHANKELIJK VAN DE OPPERVLAKTE-AFWERKING. Ø60 Ø60 150/ 190/ 210/ 230/ 252 159/ 199/ 219/ 239/ 261 *AVAILABLE IN CHROMED BRASS;...
- Page 3 TECHNICAL FILES TECHNISCHE FICHE T1.16B.N COMPONENT LIST COMPONENT DRAWING ONDERDELENLIJST EXPLOSIETEKENING T1.16B Nº AERATOR P26729 PERLATOR HANDLE HENDEL SPOUT UITLOOP PLATE SPOUT UITLOOP ROSET CARTRIDGES CONCEALER VERBERGRING TECAFORM HOOD P38629 TECAFORM HULS CARTRIDGE P26377 CARTOUCHE HOOD HULS FORGED BASE P28567 T1.16BI.N...
- Page 4 TECHNICAL FILES TECHNISCHE FICHE T1.16B.N ASSEMBLY INSTRUCTIONS MONTAGE INSTRUCTIES PICTURE 1 PICTURE 2 TEKENING 1 TEKENING 2 COLD WATER INLET KOUD WATER TOEVOER HOT WATER INLET WARM WATER TOEVOER 1 - After the plate is placed, please place a level on top of the styrofoam to confirm the piece is levelled with the floor.
- Page 5 TECHNICAL FILES TECHNISCHE FICHE T1.16B.N ASSEMBLY INSTRUCTIONS MONTAGE INSTRUCTIES PICTURE 4 PICTURE 6 TEKENING 4 TEKENING 6 1- After the coating is applied and tile joints are filled in, please remove the plastic protection covering the mixer. 2- Remove the threaded plastic protection on the spout.
- Page 6 TECHNICAL FILES TECHNISCHE FICHE T1.16B.N ASSEMBLY INSTRUCTIONS MONTAGE INSTRUCTIES PICTURE 9 PICTURE 7 TEKENING 9 TEKENING 7 1 - After tightening the spout, please fit the plate to the wall coating. 2 - Place the backplate in the mixer’s body and fit it all the way. Tighten the cartridge concealer over the tecaform body.
- Page 7 TECHNICAL FILES TECHNISCHE FICHE T1.16B.N PRODUCT CARE WARRANTY ONDERHOUDSINSTRUCTIES GARANTIE We recommend periodical maintenance of the taps. is will contribute to Water Evolution waarborgt alle producten in geval van fabricagefouten als keep them in good condition for a long time.
- Page 8 TECHNICAL FILES TECHNISCHE FICHE T1.16B.N CARTRIDGE REPLACEMENT AERATOR REPLACEMENT VERVANGING VAN DE CARTOUCHE VERVANGING PERLATOR 1- Unscrew the handle with the help of the umbrak key. 1- Use the tool supplied in the spout box to unscrew the aerator. 2- Remove the handle from the top of the cartridge.
