Dellonda Freestanding Gas Pyramid Patio Heater Outdoor
Garden Glass Tube 13kW
Model No. DG98, DG99
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DG98 DG99 Issue:2 27/04/2021
www.dellonda.co.uk
Advertisement
Table of Contents
Related Manuals for dellonda DG98
Summary of Contents for dellonda DG98

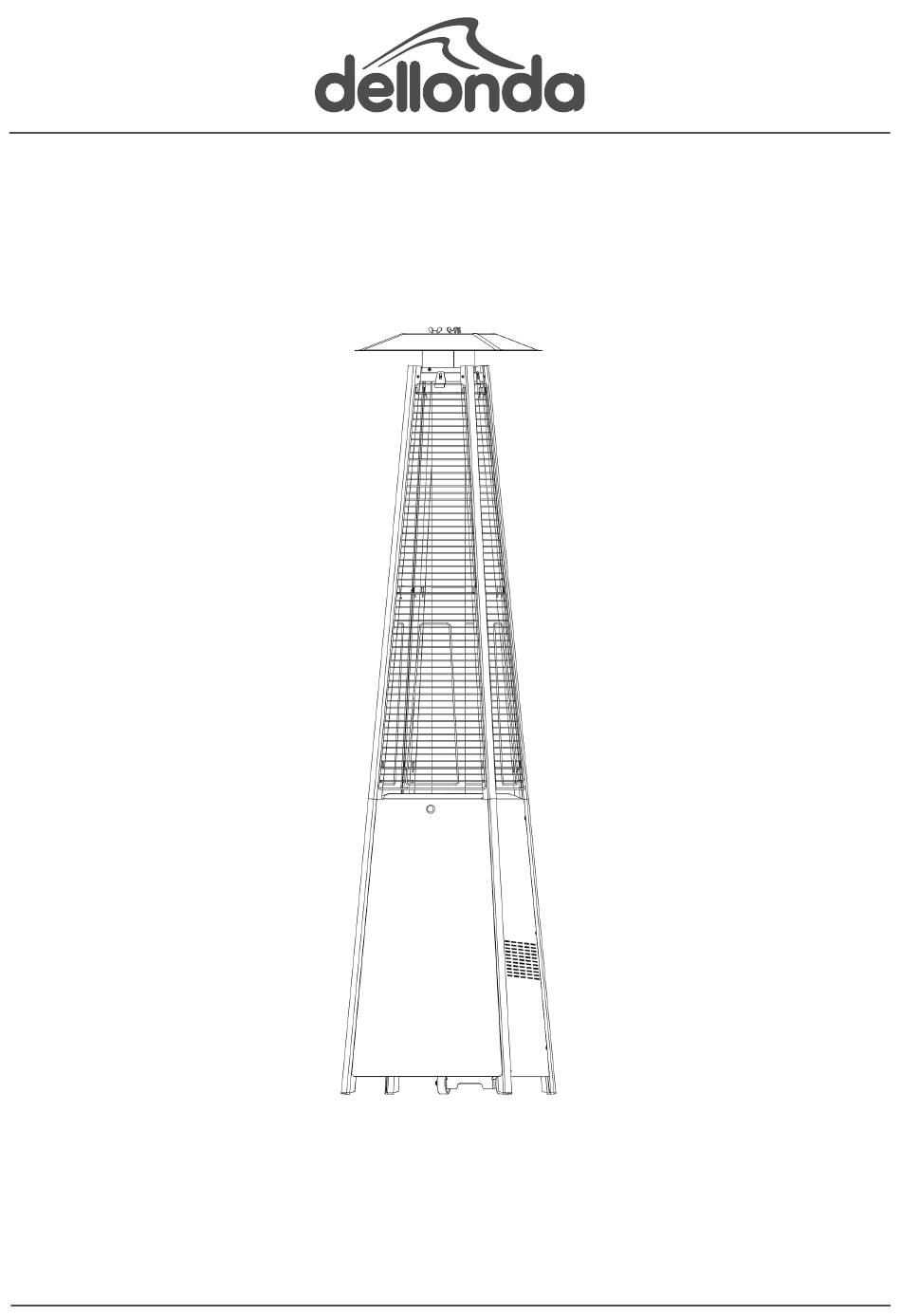

- Page 1 Garden Glass Tube 13kW Model No. DG98, DG99 Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance. DG98 DG99 Issue:2 27/04/2021...
- Page 2 Available in black or stainless steel and supplied with regulator and hose assembly for use with propane patio gas bottles. These products should only be used in a well ventilated area. Specification Model ................DG98 ....................DG99 Fuel Consumption: .............945g/hr ................... 945g/hr Fuel: ................. Propane ..................Propane Heated Area: ..............8m²...
- Page 3 • Turn off the gas immediately if a gas smell is detected. Turn cylinder valve OFF. If the leak is at the hose/regulator connection tighten the connection and perform another leak test. If bubbles continue appearing contact your supplier. If the leak is at the regulator/cylinder connection disconnect from cylinder, reconnect and perform another leak check.
- Page 4 Assembly • To assist connecting the regulator, carefully place the rubber hose into an insulated cup of boiling hot water. This allows the rubber hose to expand and allow the regulator to be connected easily. After connecting the regulator, tighten the hose clip with a screwdriver. •...
- Page 5 • 3. Assemble control box assy (K). Fix the Control Box Assy (K) to the Middle Plate (J), using 4pcs screw 3/16’ (DD)’. • Additional Note : Unscrew the red ignition button and insert an AAA Battery • 4. Assemble the upper support (D). Insert the 4pcs upper support (D) to the middle plate (J). Secure them with 16pcs screw 3/16” (DD)
- Page 6 • 5. Assemble the top plate assy (B) to the upper support (D).Secure the top plate assy(B) to the upper support(D) using 8pcs screw 3/16” (DD) • 6. Assemble the reflector (A) onto the top plate assy (B). Screw the 3pcs stud (BB) on the top plate assy (B), then put the reflector(A) onto the stud(BB), secure them with 3pcs wing nut (AA).
- Page 7 • WARNING! The black silicone ring must be in place prior to operating the heater. • 8. Assembly the protective guard (E). Hang the hooks of the protective guard (E) onto the holes in supports Secure the protective guards (E) with fixing brackets (GG) with 4pcs 3/16”...
- Page 8 It is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim. Dellonda Limited Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR 01284 757575 support@dellonda.co.uk...
