Summary of Contents for Syride SYS'Alti

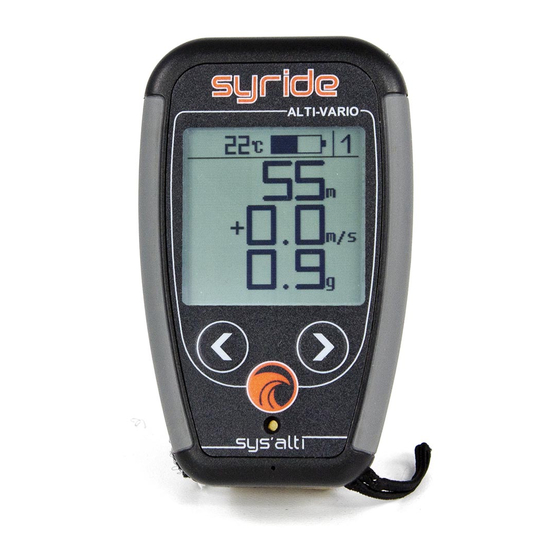

- Page 1 ® SYS’Alti Guide d’utilisation : p1 User Guide : p19 Manual de usuario : p39 Benutzerhandbuch : p59...
- Page 2 As a member of the community, you will be a key player in the evolution and continuous improvement if the instrument. Sensors inside the SYS’Alti allows the development of future features. We encourage you to share your suggestions for your greater satisfaction. Syride whishes you beautiful flights.
-
Page 3: Table Of Contents
Contents Setup the SYS PC Tool................22 Place the instrument ................23 III. Recharging the battery ................23 IV. Configure your device ................25 Advanced configuration ................27 VI. Customize your screens and vario sound ..........27 VII. Screens when flying ................. 29 VIII. -
Page 4: Setup The Sys Pc Tool
Setup the SYS PC Tool Download the lastest version of the SYS PC Tool by checking the following website : http://www.syride.com/en/software Follow the instructions to install it on your computer. Once installed, an icon shows in the 10:39 task bar. -
Page 5: Place The Instrument
Place the instrument Syride suggests place your instrument on the risers. 2 velcros ables you to place it on any existing riser. Take care not to « lock » your rope or pulley accelerator.This position ables you to manipulate the instrument... -
Page 6: Recharging The Battery
III. Recharging the battery Simply connect your instrument’s USB to a computer. Your instrument will display Charging… “Charging…” and the percentage of charge. To complete, a charge requires 2 hours. Disconnect USB to stop the charge. Your instrument has a Li-ion battery, which has no memory effect. -
Page 7: Configure Your Device
Configure your device Push the central button to start your instrument. Go to screen #5 with left and right buttons, and confirm by clicking on central button. The number of the screen is displayed on the top right of it. first screen shows... - Page 8 The 2 next screens ables you to setup rising and falling threshold of the vario. You can turn ON or OFF the backlight of your instrument on the next screen. Warning : backlight reduces the instrument’s autonomy. Last screen is to go back to main screen (#1)
-
Page 9: Advanced Configuration
Choose the units and the language of your instrument. Change any setup that is changeable inside the instrument. An explanation of those functions is explained here: https://www.syride.com/en/support For this : Turn-on the instrument and connect it to your computer From SYS PC Tool, click on “configure my instrument” icon. - Page 10 To customize your screen ( tutorial video https://www.youtube.com/watch?v=D3lfZWiS13M Go to : http://www.syride.com/en/ssctool/Alti Customize your screen by selecting an item with its size and unit, and then drag and drop it to the screen. Download the config file to your computer.
-
Page 11: Screens When Flying
VII. Screens when flying Screens shows informations you previously choosed. Pressing the central button will turn OFF and ON the sound of the vario. This is usefull when you need to concentrate on a transition or when landing. Screen #3 displays global informations concerning your flight. -
Page 12: Flight Detection And Altitude Setup
VIII. Flight detection and altitude setup The plane icon on the top left of the screen indicates wether a flight is beeing recorded or not. The vario automatically detects when you’re flying, based on the vario. Pressing the central button on screen #3 ables you to setup the current 1435 ft Alt. -
Page 13: Display And Delete A Flight
Display and delete a flight Go to screen #4 and press the central button to enter the flights list. You will see here every recorded Vol # 1 flights, with some informations about Date : 01/02/14 this flight. Time : 12h35 Flight time : 01h37 Alt max : 1346m Vario max : 5.4m/s... -
Page 14: Warnings And Reset
Warnings and reset If this happens, be sure the instrument’s memory is not full, and check the battery is charged enough. To protect from flights corruption, your instrument will automatically stop recording the flight if the battery is too low, or if memory is almost full. This is indicated when the plane icon on the top left of the screen is blinking with a cross over it If the G-Meter exceeds the value selected in advanced parameters (2.5g is the... -
Page 15: Transfer Your Flights
To use the advanced flight analyzer on syride.com, you must enter your email and password of your Syride account (create one on http://www.syride.com) Make sure "Use the advanced logbook from Syride.com” is selected to upload your flights and click “OK”. - Page 16 You can have access to the files on your computer by clicking on File/open local directory Go to your profile on the Syride website to visualize your flight (altitude, vario, gmeter, flight time, gain, ...) If you want, you can edit some informations about your flight (flight name, wing, flight type, etc..) in order to...
-
Page 17: Parameters
XII. Parameters Here is a list of parameters preprogrammed in your instrument in order to improve its use and autonomy: • Your instrument will turn off if idle – without pressing any keys – for more minutes. • The SYS’Alti is capable of tracking up to 150h of flight. -
Page 18: Suggestion Of Use
• If the SYS'Alti is very hot and you fly in very cold air, fog can appear on the screen. It will dissipate within minutes. • Only use the backlight if required. Otherwise the autonomy will decrease significantly. - Page 19 The soaring in the Antarctic is not guaranteed!! Directive 2002/96/EC applies within the European Union. For the Ensure that the product is well in position before taking off. Syride cannot procedure applicable in countries outside the European Union, please...
