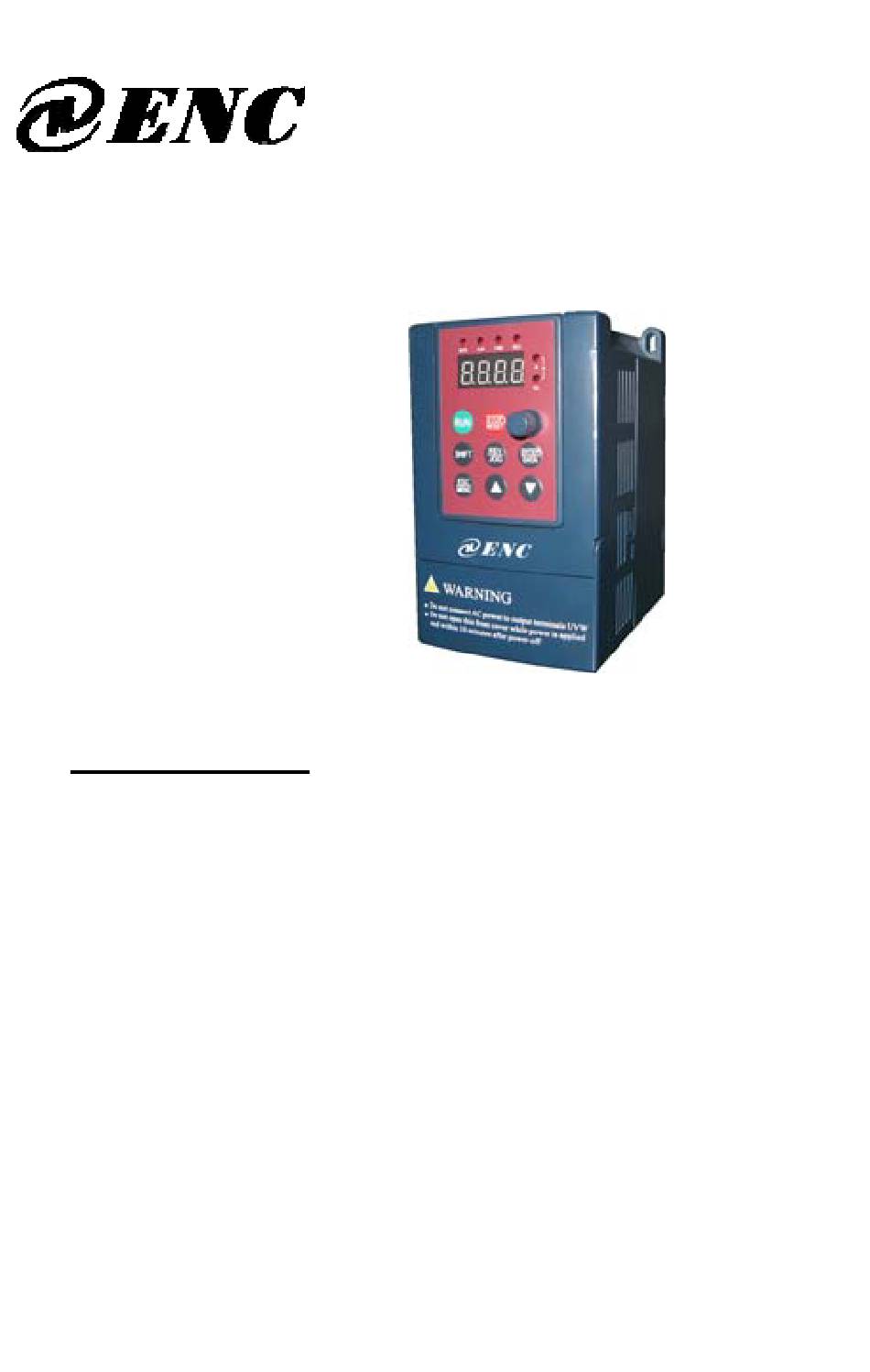

- Page 1 ISO9001:2008 Quality Management System Authentication CE Authentication EDS800 series 0.2-1.5KW mini type Ver. 2.2 Service manual SHENZHEN ENCOM ELECTRIC TECHNOLOGIES CO., LTD...
- Page 2 Thank you for purchasing EDS800 series mini universal inverter from Shenzhen Encom Electric Technologies CO., LTD. EDS800 series can fulfill all kinds of demand for general-purpose inverter by advanced control manner which make high torque, high precision and wide-range speed regulation drive be available. EDS800 is organic combine of customer’s general need and industrial requirement to provide practical PID...
- Page 3 We reserve our right to notice you if we change contents of this manual. Welcome to choose other inverters of our company: EDS-V300 series sensorless current vector control inverter EDS1000 series multi-function universal inverter EDS2000 series high performance universal inverter ...
-
Page 4: Table Of Contents
Contents Safety information and use notice points safety precautions use range use notice points scrap notice points 2 Type and specification of the inverter 2.1 incoming inverter inspect 2.2 type explanation 2.3 nameplate explanation 2.4 series type explanation 2.5 appearance and parts name explanation 2.6 outer size and gross weight 2.7 outer size of keypad and its fixing box 2.8 product technic index and spec... - Page 5 3.7 installation guide for anti-jamming 3.7.1 restraining to noise disturbance 3.7.2 locale wiring and earthing 3.7.3 relation of long-distance wiring and current leak and the countermeasure 3.7.4 installation demand for electromagnetic on-off electronic device 4 Run and operation explanation for inverter 4.1 run of inverter 4.1.1 running order channels 4.1.2 frequency-provision channel...
- Page 6 6.7 traverse special function parameter group:F6 6.8 frequency provision function parameter group: F7 6.9 motor and vector control function parameter group: F8 6.10 protection function parameter:F9 6.11 failure record function parameter: Fd 6.12 code and manufacturer function parameter: FF 7 Troubleshooting 7.1 failure and countermeasure 7.2 failure record lookup 7.3 failure reset...
-
Page 7: Safety Information And Use Notice Points
EDS800 series Service Manual 1 Safety information and use notice points In order to ensure the safety of your personal and equipment, before using the inverter, please read this chapter of contents conscientiously. 1.1 Safety precautions There are three kinds of safe relevant warnings in this service manual, they... -
Page 8: Use Range
1.3 Use notice points (1) EDS800 series inverter is voltage-type inverter, so temperature, noise and vibration slightly increasing compared to power source running when using, belongs to normal phenomenon. - Page 9 EDS800 series Service Manual (6) Should switch on/off the inverter through terminal or other normal order channels. It is prohibited that switch on/off the inverter frequently by using strong electric switch such as magnetic control conductor, otherwise will cause the equipment to be damaged.
-
Page 10: Scrap Notice Points
EDS800 series Service Manual 1.4 Scrap notice points When disposing scrap inverter and its parts, please note: (1) The unit: please discard as industrial useless. (2) Electrolytic capacitor: when burning the inverter electrolytic capacitor in it may explode. Plastic: when plastic, rubber parts etc. in the inverter are burning, they may... -
Page 11: Type And Specification Of The Inverter
EDS800 series Service Manual 2 Type and specification of the inverter 2.1 Incoming inverter inspect (1) Check if there is damage during transportation and inverter itself has damage or fall-off parts. (2) Check if parts presented in packing list are all ready. -
Page 12: Series Type Explanation
EDS800 series Service Manual 2.4 Series type explanation Table 2-1 series type explanation Inverter type Rated power Rated output Adapted motor （KVA） （KW） current（A） EDS800-2S0002 EDS800-2S0004 EDS800-2S0007 0.75 EDS800-2S0015 EDS800-4T0007 0.75 EDS800-4T0015 2.5 Appearance and parts name explanation top cover... -
Page 13: Outer Size Of Keypad And Its Fixing Box
EDS800 series Service Manual Table 2-2 EDS800-2S0002~EDS800-4T0015 mounting size Fixing Gross aperture weight Inverter type (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg) EDS800-2S0002 EDS800-2S0004 EDS800-2S0007 141.5 112.5 EDS800-2S0015 EDS800-4T0007 EDS800-4T0015 2.7 Outer size of keypad and its fixing box (unit: mm) Fig.2-5 outer size of keypad and outline of its fixing box... - Page 14 EDS800 series Service Manual Running speed stable state ≤±0.5% of rating synchronous speed precision Digital setting: max. frequency×±0.01%; analog setting: Frequency precision max.frequency×±0.5% Analog setting 0.1% of max. frequency-+96 Frequency Digital setting 0.01Hz resolution Exterior pulse 0.5% of max. frequency Torque boost Automatic torque boost，manual torque boost 0.1%~20.0%...
- Page 15 EDS800 series Service Manual Over-current protection, over-voltage protection, lack-voltage Protection function protection, over-heat protection, over-load protection, missing phase protection (in option)etc. brake subassembly, remote-control keypad, connecting cable for Fitting parts remote-control keypad etc. indoor，not bare to sunlight，no dust, no corrosive gas, no flammable Use ambient gas, no oil fog, no vapor, no water drop or salt etc.
-
Page 16: Installation And Wiring
EDS800 series Service Manual 3 Installation and wiring 3.1 Installation ambient 3.1.1 Demand for installation ambient (1) Installed in drafty indoor place，ambient temperature within -10ºC~40ºC，need external compulsory heat sink or reduce the volume if temperature exceeds40ºC. (2) Avoid installing in place with direct sunlight, much dust, floating fibre and metal powder. -
Page 17: Plastic Cover Disassembly
EDS800 series Service Manual First place the fixing hook at the bottom of keypad onto mounting claw on keypad mounting hole, let forefinger press fixing flexible plate on top of keypad and then push it inside, release it in proper location(after a crisp sound). -
Page 18: Main Loop Terminal Wiring
EDS800 series Service Manual 3.4 Main loop terminal wiring 3 phase breaker EDS800 Power supply Fig.3-4 main loop simple wiring 3.4.1 Connection between inverter and fitting parts (1) Must assemble disjunction device such as isolation switch etc. between powersource and the inverter to assure personal safety when repairing the inverter and needing compulsory power off. -
Page 19: Main Loop Terminal Wiring
EDS800 series Service Manual exceeds 50m.But voltage drop of AC output reactor must be considered. Improve input output voltage of the inverter or let the motor in lower volume to avoid burning off the motor. (8) Complete ground wire Inverter and motor must be earthed and grounding resistor smaller than 10Ω.Grounding wire should be shorter enough and wire diameter be bigger... -
Page 20: Basic Running Wiring Diagram
EDS800 series Service Manual 3.5 Basic running wiring diagram Braking unit (external,fitting part, interface at the right side of inverter ) breaker power supply ②Notice2 +10V forward run/stop reverse run/stop DC amperometer EDS800 multi-function 1 4-20mA current signal or 0~10v voltage signal...
