User Manual
Smart Terminal

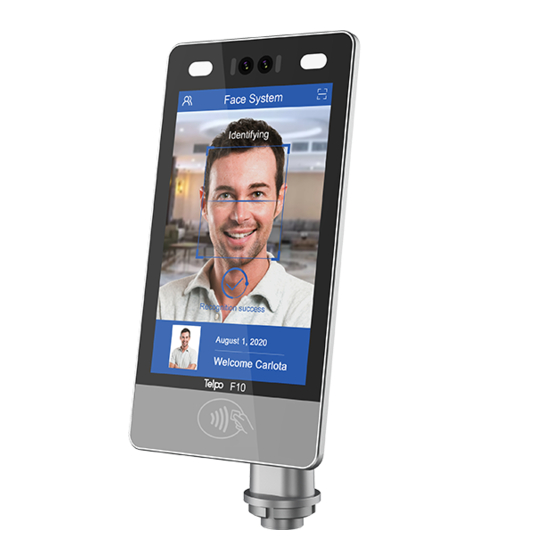

Model: F10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F10 and is the answer not in the manual?

Questions and answers

Dung Nguyen
April 23, 2025

help me solve this problem

User image 680843a78c26d

Summary of Contents for Telpo F10

  • Page 1 User Manual Smart Terminal Model: F10...
  • Page 2: Table Of Contents

    Table of Contents Getting started ..................................1 Device layout ................................1 Buttons ..................................1 Technical Specification ............................... 2 Package contents ................................ 3 Power on your device ..............................3 Power off your device ..............................3 Card Reading ................................4 Basics ....................................5 Home Screen Overview ..............................
  • Page 3 Copyright Information ..............................18...
  • Page 4 Modifying the device’s operating system or installing software from unofficial • sources may result in device malfunctions and data corruption or loss. These actions are violations of your Telpo licence agreement and will void your warranty. Is in compliance with the essential requirements and other relevant provisions of •...
  • Page 5 Basic Information of Manufacturer: Telepower Communication Co., Ltd. 5 Bld, Zone A, Hantian Technology Town No.17 ShenHai RD, Nanhai District Foshan, China...
  • Page 6: Getting Started

    Getting started Device layout The following illustration outlines your device’s primary external features. Buttons Button Function • Tap Overview to see your recent apps, and tap an app to reopen it. • To remove an app from the list, swipe it left, right. Overview •...
  • Page 7: Technical Specification

    Technical Specification Processor Octa-Core 1.8GHz Android 9.0 or above Memory 2GB DDR, 16GB eMMC Display 10-inch, 800*1280 Keypad 1 Reset Key Contactless Card Reader ISO14443 Type A/B, Mifare®, ISO18092 compliant Camera Dual-lens Camera (RGB+IR) Light Green/Red/White LED Communications Ethernet/WiFi/Bluetooth/WCDMA/LTE/NFC 1 DC Port, 1 RJ45, 1 micro USB, 1 Wiegand Input, 1 Peripheral Ports Wiegand Output, 1 RS485, 12VDC 2A...
  • Page 8: Package Contents

    Package contents Check the product box for the following items:  Main Device   Power Adapter   Wiring Terminal   User guide   Conversion Cable (Optional)    • The items supplied with the device and any available accessories may vary depending on the region or service provider.
  • Page 9: Card Reading

    Card Reading • NFC tag, put the NFC tag under the bottom of the device. Telepower Communication Co., Ltd.| Smart Terminal and Solution Provider...
  • Page 10: Basics

    Basics Home Screen Overview The home screen is what you see when you first turn on yourdevice. From here, you can explore apps and more. Apps: To remove an app from a home screen page, touch and hold the app, then drag it to Remove. •...
  • Page 11: Status & Notifications

    Status & notifications At the top of the screen, icons on the left notify you about new messages or events. If you don’t know what an icon means, swipe the status bar down for details. The icons displayed on the status bar provide information about the status of the device. The icons listed in the table below are most common.
  • Page 12: Quick Settings

    Quick settings For quick access to Wi-Fi, Bluetooth, Brightness, Airplanemode, and other settings, swipe down the status bar or the lockscreen with two fingers. For even more settings, tap Note: Your quick settings may look a little different. Profiles You can share your device with others by adding a user. Users will have their own spaces on the devicefor custom home screens, accounts, apps, personalized settings, and more.
  • Page 13: Connect & Transfer

    Connect & transfer Wi-Fi networks Wi-Fi provides wireless Internet access over distances of up to 300 feet. To use your device’s Wi-Fi, you need access to a wireless access point or “hotspot.” The availability and range of the Wi-Fi signal depends on a number of factors, including infrastructure and other objects through which the signal passes.
  • Page 14: Bluetooth

    Bluetooth Turn Bluetooth power on/off Find it: Settings >Bluetooth, then touch the switch to turn it Note: Swipe down the status bar with two fingers to quickly turn Bluetooth on or off. To extend battery life or stop connections, turn Bluetooth switch when you’re not using it.
  • Page 15: Data Use

    Data use You can track the amount of data your device uploads and downloads. Find it: Settings >Data usage Your device shows a data usage graph. Below the graph, apps appear from highest to least data usage. Note: Usage information is provided to help you manage your device. This may not match the amounts charged by your service provider, as they’re not measured in the same way.
  • Page 16 Telpo Face Operating instructions (1) Open APP and go to APP “Settings” Open Telpo Face stand-alone APP(red icon) refering to below picture. (2) Click the left top icon and input the default password “123456” enter APP “Settings” as below picture showing.
  • Page 17 (4) In “Data Management”,user can can import data in batches、export all the members and clear all the data. (5) Member Management Add Member Click the bottom blue icon indicated by red arrow in the below picture to add a member from device. Telepower Communication Co., Ltd.| Smart Terminal and Solution Provider...
  • Page 18 (6) Add information as below picture, including taking a photo, user name, user ID, valid time. Then click “Register”.When taking photos, try to make your head occupy more place. Telepower Communication Co., Ltd.| Smart Terminal and Solution Provider...
  • Page 19: Settings

    Settings Wi-Fi Settings The Wi-Fi settings menu lets you turn Wi-Fi on or off, set up and connect to available Wi-Fi networks, and configure advanced Wi-Fi options. Access the Wi-Fi Settings Menu TouchSettings >Wi-Fi. • Advanced Wi-Fi Settings The advanced Wi-Fi settings menu lets you set up and manage wireless access points. 1.
  • Page 20: Nfc Settings

    networks, VPN, Mobile plan, and more. NFC Settings NFC (Near Field Communication) is a wireless technology that enables data transmission between two objects when they are brought within a few inches of each other. When you enable NFC on your device, it can exchange data with other NFC-enabled devices or read information from smart tags embedded in posters, stickers, and other products.
  • Page 21: Application Manager

    Application Manager You can download and install applications from the Google Play Store or create applications using the Android SDK and install them on your device. Use Application manager to manage applications on your device. 1. TouchSettings >Apps. 2. Tap an app or service for more information, and for app options, such as stopping and uninstalling. Location Settings Your Location menu lets you select how your device determines its location (using the wireless network).
  • Page 22: Date & Time Settings

    2. Touch Factory data reset. 3. Read the factory data reset information page and touch Reset device. 4. Touch Delete all. Your device will power down and reset itself, which may take up to 10 minutes. Once the device has reset, it will run through the Hands Free Activation and update processes again. When finished, you will see the Welcome screen and Setup application.
  • Page 23 Copyright Information Copyright © 2017 Telepower Communication Co.,Ltd. This manual is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Telepower Communication Co.,Ltd.
