Pixel SXMLCR72 Installation Instructions

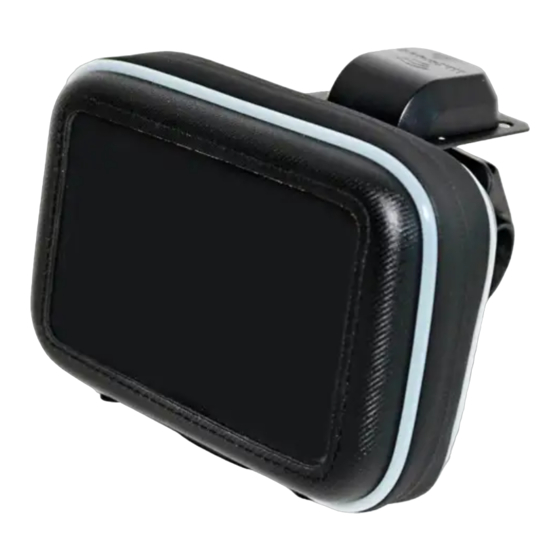

SXMLCR72 - Satellite Radio Compact Motorcycle Kit
Installa on Instruc ons
Package Includes
(1) SiriusXM™ PowerConnect™ Vehicle Cradle
(1) SiriusXM™ 5 Volt Hardwired Power Adapter
(1) Handlebar Clamp Mount
(1) RAM Ball Mount Adapter (25 MM)
(1) Weatherproof Protec ve Case
(1) SiriusXM™ Antenna
(1) Auxiliary Cable
(1) L-Bracket with AMPS Plate & Lock Ring
(1) AMPS Plate (Male Dual Notch) with Screws
Step 1 - Install Clamp Mount
Before ge ng started, it is important to select an installa on loca on for the protec ve case with receiver.
A er selec ng the installa on loca on for the protec ve case, loosen the two screws on the handlebar clamp mount
all the way out and separate it from the back side of the clamp mount. Place the clamp mount on the handlebars, line
up the screw holes and ghten the screws to mount the clamp. Use the supplied rubber strips to increase the grip of
the mount.
Loosen this screw
Loosen this screw
Rubber inserted here
