Satellite Radio – DBS Multiplex Kit
Model: SRDBS
Satellite Radio
Antenna *
Pixel Model: PRO-500 or
Pixel Model: PRO-600
* Compatible only with Pixel antennas. Damage
may result to non-compatible antennas
• Works with any DISH or DIRECTV System
• Compatible with XM and Sirius
• Compatible with DIRECTV SWM systems
• Compatible with Tuner Modules for any
"Sirius-Ready" or "XM-Ready" Home
Theater Receiver
• Signal splitters available for Multi-Receiver
Installations (Model SR-4)
• No external power supply required
DIRECTV or DISH Receiver
Phone: (303) 526 – 1965

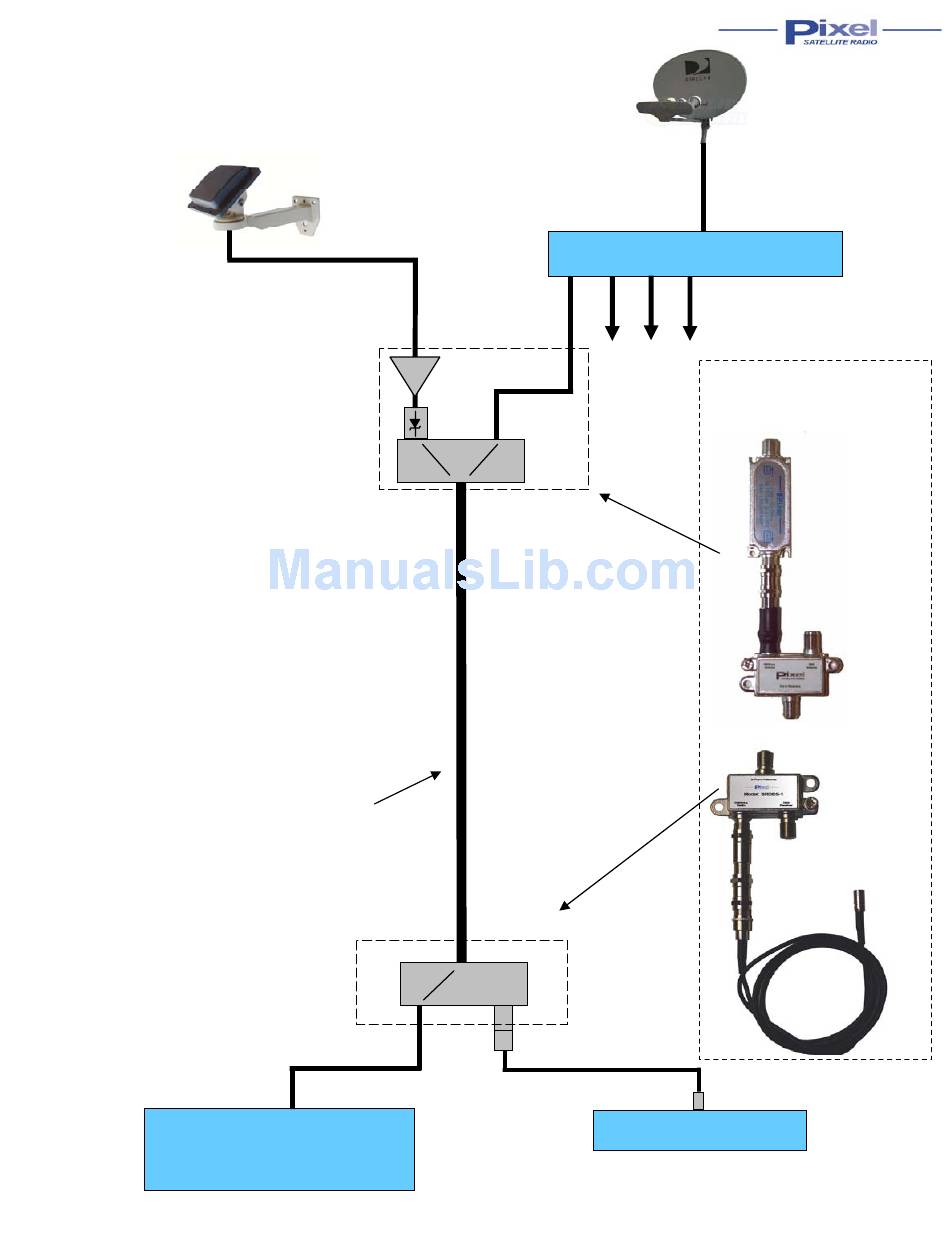

Transmit Satellite Radio Signals on
the Same Cable used for DBS TV
Up to 200 feet
of RG-6 cable
SRDBS-I
(IRD)
DIRECTV or DISH Multi-Switch *
To IRD's
SRDBS-O
3 ft. F-Female to SMB-plug cable
XM or Sirius Receiver
(or Tuner Module for any "XM-Ready" or
"Sirius-Ready" Home Theater receiver)
* Note: In some DBS systems this
switch is built into the DIRECTV
or DISH antenna
Kit Includes Items Shown
Below. All other Items sold
separately
