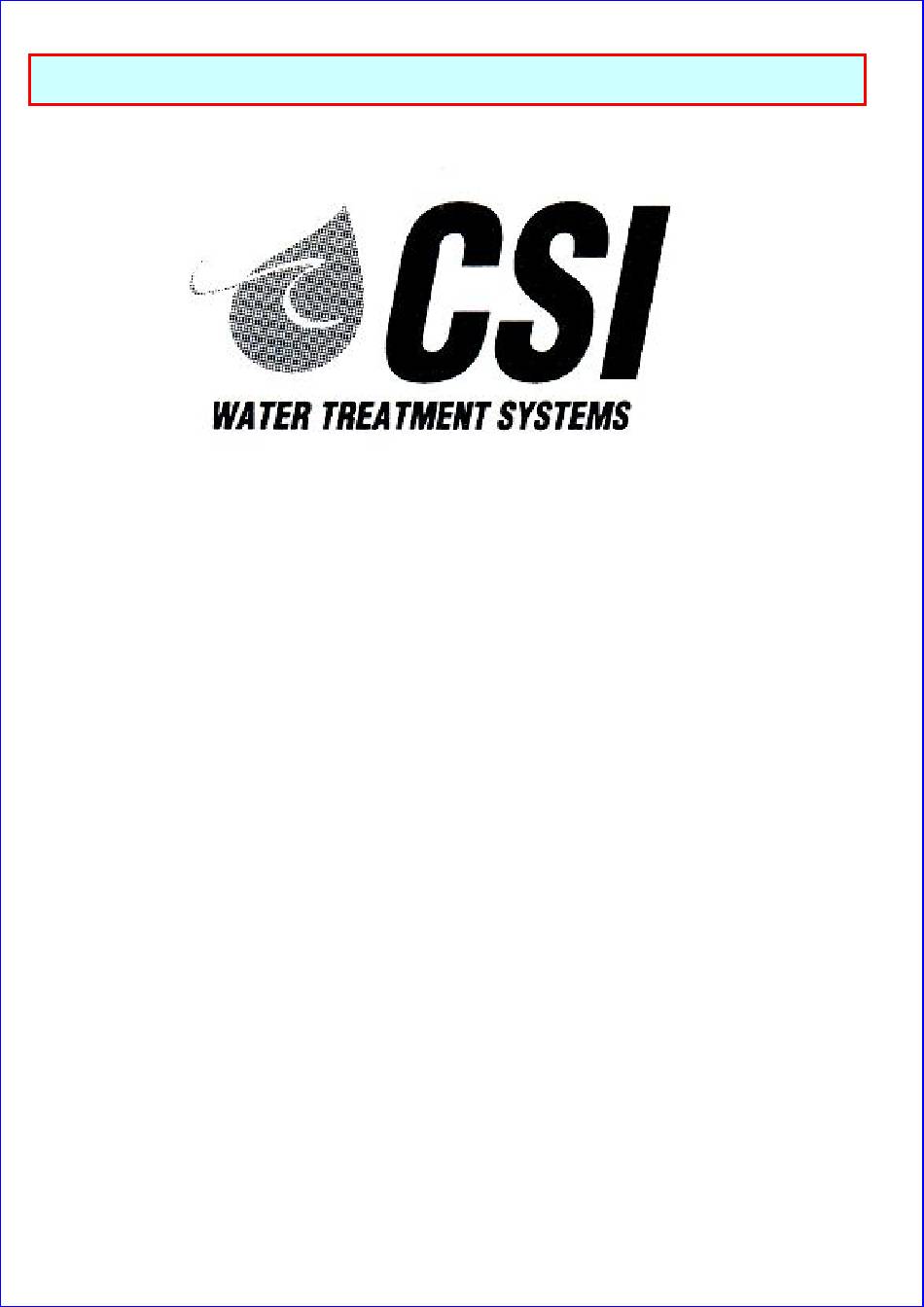

- Page 1 CLICK ANYWHERE on THIS PAGE to REURN to CSI WATER SOFTENERS at InspectApedia.com Legacy View Valve LV-019 Service Manual...
- Page 2 Signature 2 Series Main Menu Menu/Enter Button MENU ENTER : Set/Change CHANGE Button 1. To enter Main Menu, press the Menu/Enter button. (Time of Day will flash) 2. To set the Time of Day, press the Set/Change button. (First digit will flash) Example [12:00] - To change digit value, press the Set/Change button.
-
Page 3: Normal Operation
Signature 2 Series Normal Operation 1. Home Display Alternates between the display of Time of Day and Number of Days until the Next Regeneration. Days Remaining until the Next Regeneration will count down from the entered Regeneration Day Override Value until it reaches 1 day remaining. A Regeneration Cycle will then be initiated at the next designated regeneration time. - Page 4 Signature 2 Series Starting Extra Regeneration Cycle 1. To Start Delayed Extra Cycle Example [ 1 ] - If Days Remaining Until Next Regeneration does not read ‘1’, press and hold the Set/Change button for 3 seconds until the display reads ‘1’, or ‘0000’ on metered models. - Regeneration cycle will initiate at the next designated regeneration time.
- Page 5 Signature 2 Series Nitro Only Backwash Cycle Step Explanation Step 1: Air Release Step Step 4: Air Replenish Step For approximately 6 minutes - Default of 12 minutes - Not programmable Example: Step 2: Backwash Step - Default of 10 minutes Step 3: Rest Step Step 5:...
- Page 6 Signature 2 Series Nitro Pro Only Backwash Cycle Step Explanations (With “J” Program Activated – Oxyclean NP Option) Step 1: Air Release Step Step 5: Backwash Step For approximately 6 minutes - Default of 10 minutes - Not programmable Step 6: Rest Step Step 2: Oxyclean NP Injection...
-
Page 7: Final Setup
Signature 2 Series Final Set-Up With proper valve operation verified (Softeners only): 1. Add water to the top of the air check. Manually step the valve to the Brine Cycle (position 2) and allow the valve to draw water from the brine tank until it stops. Note: The air check will check at approximately the midpoint of the screened intake area. -
Page 8: Master Programming Mode
Signature 2 Series Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. 1. - Page 9 Signature 2 Series 5. To Set Regeneration Cycle Step Times Softeners/Filters Only (1) (2) (3) (4) Example [ 3 – 20 ] - The next 4 displays set the duration of time in minutes for each backwash cycle step. - The step number which is currently modifiable is indicated on the far left of the display screen. - The number of minutes allotted for the selected backwash step is displayed on the far right.
- Page 10 Signature 2 Series Utilizing Bluetooth Control To take advantage of the Bluetooth interface this feature must be set up on a Bluetooth enabled device. Note: At the time of this release Bluetooth control only works on Android devices with a compatible version of Bluetooth.
-
Page 11: Master Programming Mode Flow Chart
Signature 2 Series Master Programming Mode Flow Chart MENU ENTER - To enter Master Programming mode, Press and hold both buttons for 5 seconds. CHANGE → To change value CHANGE REGEN ↓ TYPE MENU ↓ → To accept value ENTER MENU ENTER ↓... - Page 12 Signature 2 Series Control Valve Assembly (Nitro & Nitro Pro) pg. 12...
- Page 13 Signature 2 Series NITRO & NITRO PRO BODY ASSEMBLY pg. 13...
- Page 14 Signature 2 Series NITRO & NITRO PRO BODY ASSEMBLY PART No. DESCRIPTION Qty. 20009X231 PISTON ASSEMBLY 20001X226 HEX SCREW 20001X232 SEAL & SPACER KIT 20251X100 DRAIN LINE FLOW CONTROL HOUSING 20561X225 BRINE VALVE END SPACER 20001X214 DRAIN RETAINER CLIP 20001X228 BRINE LINE FLOW CONTROL ASSY.
- Page 15 Signature 2 Series Control Valve Drive Assembly (Filter Version) pg. 15...
- Page 16 Signature 2 Series Control Valve Drive Assy. (Filter Version) Description Part # Qty. Description Part # Qty. Valve Body Complete 20001X200 O Ring 20561X204 Valve Body Only 20001X201 O Ring 2000X215 End Spacer O Ring Seal Injector Spacer O Ring Seal &...
- Page 17 Signature 2 Series Control Valve Assembly (Softener Version) pg. 17...
- Page 18 Signature 2 Series Control Valve Drive Assembly Parts List (Softener Version) Description Part # Qty. Description Part # Qty. Valve Body Complete 20001X200 O Ring 20561X204 Valve Body Only 20001X201 O Ring 20001X215 End Spacer O Ring Seal Injector Plug Spacer O Ring Seal &...
-
Page 19: Meter Assembly
Signature 2 Series Meter Assembly Meter Assembly Parts List Ref # Description Part # Qty. Meter Assembly, Turbine Complete 20564X200 pg. 19... - Page 20 Signature 2 Series Bypass Assembly (Plastic) Ref # Description Part # Qty. Plastic Bypass Valve Assembly 20561X292 pg. 20...
-
Page 21: Bypass Assembly
Signature 2 Series Bypass Assembly (Stainless Steel) Ref # Description Part # Qty. Bypass Valve 3/4" Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283 pg. 21... - Page 22 Signature 2 Series Service Instructions A. General Preliminary Instructions – PERFORM BEFORE ALL SERVICING OPERATIONS! 1. Turn off water supply to conditioner. If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet.
- Page 23 Signature 2 Series E. To Replace Piston Assembly of drive yoke upright must face to the left away 1. Follow steps A.1 through A.3. from the motor). 2. Remove control valve back cover. Disconnect the 7. Replace powerhead mounting screws. Replace meter signal wire from the meter.
-
Page 24: Troubleshooting Guide
Signature 2 Series Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION 1. Softener fails to Power supply plugged into intermittent or Connect to constant power source regenerate dead power source automatically Disconnected meter cable Reconnect cable Improper control valve programming Reset program settings Defective power supply Replace power supply Defective circuit board or meter... - Page 25 Signature 2 Series SYMPTOMS PROBABLE CAUSE CORRECTION High salt usage High salt setting Adjust brine tank refill time Excessive water in brine tank See symptom # 7. Constant flow through the unit Indicates plumbing leak (i.e. toilet tank) Improperly set hardness Reset programming Loss of water Scaling / fouling of inlet pipe...
