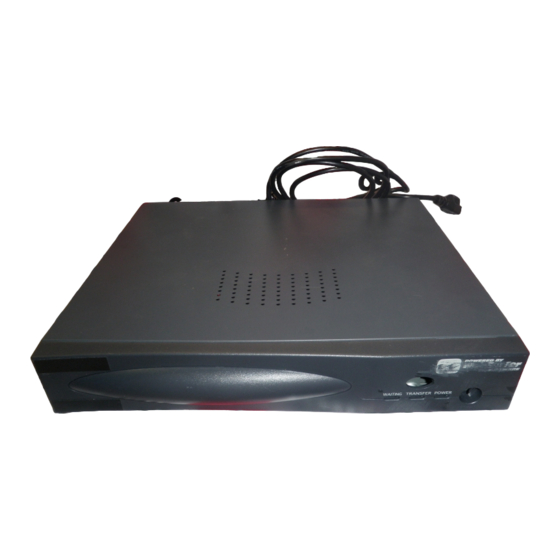

Your BR2 Router
must be configured before use !
(NOTE: An Ethernet HUB or crossover cable is required)
Step 1: If you have the BR2 - MS/TP version, connect the U+4 device to the
USB port of the BR2 router.
Step 2: Access the BR2 configuration screen using your browser. Here is an
explanation of how to do this.
Connect the BR2 Ethernet connector (eth0 is either on the motherboard or it is labeled) to an
Ethernet hub, and run another Ethernet cable from that hub to your laptop or PC. Make sure that the
laptop or PC is the only other unit in this small LAN. NOTE: If you do not have a hub, you can use a
"crossover cable" to connect between the BR2 and your laptop.
There are two ways to set your computer so that it can connect to the BR2.
1) Setup the PC as a DHCP client (the BR2 contains a web server with DHCP) or
2) Set your PC's IP address to 192.168.88.90 with a subnet mask of 255.255.255.252.
Open your browser and enter the following URL:
http://192.168.88.89
You will be prompted to login:
user=admin password=admin
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cimetrics BR Series
Summary of Contents for Cimetrics BR Series
- Page 1 Your BR2 Router must be configured before use ! (NOTE: An Ethernet HUB or crossover cable is required) Step 1: If you have the BR2 - MS/TP version, connect the U+4 device to the USB port of the BR2 router. Step 2: Access the BR2 configuration screen using your browser.
- Page 2 The Cimetrics default password is a secure mixture of letters and numbers but also can be remembered because of the relationships of these keys on your computer keyboard. From within the browser interface you can access all quick help and the advanced technical help manual.
