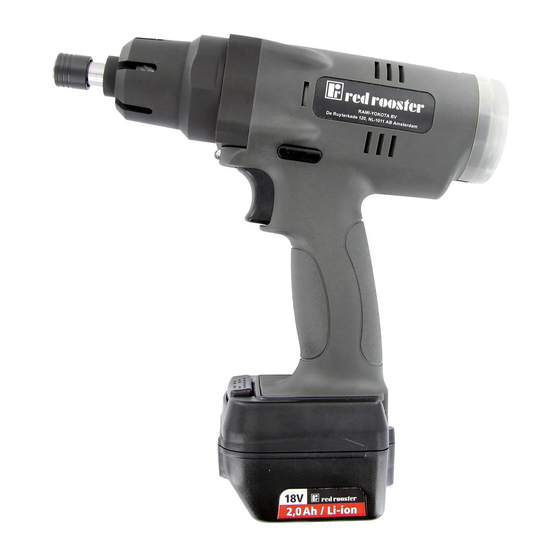

Summary of Contents for RED ROOSTER RRI-BIM15AT
- Page 1 RRI-BIM15AT MANUAL EN www.rami-yokota.com...
- Page 2 Brand : RED ROOSTER Industrial Safety standard : EN ISO 11148-6 Drive : 1/4" Hex Bolt capacity (mm) : 4500 Torque (Nm) : 7 - 15 Weight w/o battery (kg) : 1,16 mm A : 29 mm B : 227 Vibration level (m/s²)
- Page 4 B attery charger Lamp Indication: O verheating of the motor. D uring intensive use the motor may get overheated, maximum number of cycles per minute is depending on the torque and number of impulses. At maximum torque and shut-off set at 9 the maximum number of cycles is 6 per minute. Do not ignore safety precautions! Safety Do not modify this tool in any way, this can cause danger for the operator.
-
Page 5: Electrical Safety
explosion or ignite a fire. Make sure that during operation of the tool no projectiles can be generated, this can be dangerous and may cause injuries. Make sure that the work piece is securely fixed. Make sure that the inserted tool or accessory is mounted correctly, if not it may cause high speed projectiles. Make sure that no dangerous circumstances can occur for other persons in the work area. -
Page 6: Using The Tool
Do not use worn or bad fitting impact sockets or extensions, as this is likely to increase noise and vibration. Make sure that the inserted/mounted tool/accessory is properly held by the retainer and make sure that the retainer is in good condition. - Page 7 T est method 2: dynamic measurement with a rotary torque transducer on a test joint. Test method 3: dynamic measurement with a rotary torque transducer on the actual application....
-
Page 8: Maintenance
Adjustment of the shut-off. S tep 1 – 9. Step 1 = very quick shut-off, step 9 = longer impulsing before shut-off, please adjust according the hardness of the actual joint (a too quick shut-off will have a negative influence on the accuracy) Hard joint: 2 –... -
Page 9: Intended Use
Warranty covers material or construction mistakes of the manufacturer, which are clearly definable. Replacement of parts or repair by an official Yokota/Red Rooster service workshop is free of charge, when the tool is covered by warranty. Freight or postage is for the account of the buyer. - Page 10 N. Nauta Managing Director RAMI YOKOTA BV...
