WIRELESS CAMERA USER'S MANUAL
FCC Information
This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: (1)This device may
not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: Changes or modifications not expressly approved by Summer infant may void the users authority to operate this
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
l
Reorient or relocate the receiving antenna
l
Increase the separation between the equipment and the receiver
l
Consult the dealer or an experienced radio / TV technician for help.
REVISIONS
ZHONGWANG TECHNOLOGY CO., LTD
PAGES
FILE
TOTAL
NUMBER
4
PRODUCT
INSTRUCTION
ZT-822TN
DESCRIPTION
ISSUE DATE
MODEL：
ZT-822TN
DESCRIPTION
Wireless Camera
DATE
APPROVAL
CHECK
DESIGN
PAGE:
1 OF 4
DESIGN
Advertisement
Table of Contents
Related Manuals for ZTV Electron ZT-822TN
Summary of Contents for ZTV Electron ZT-822TN

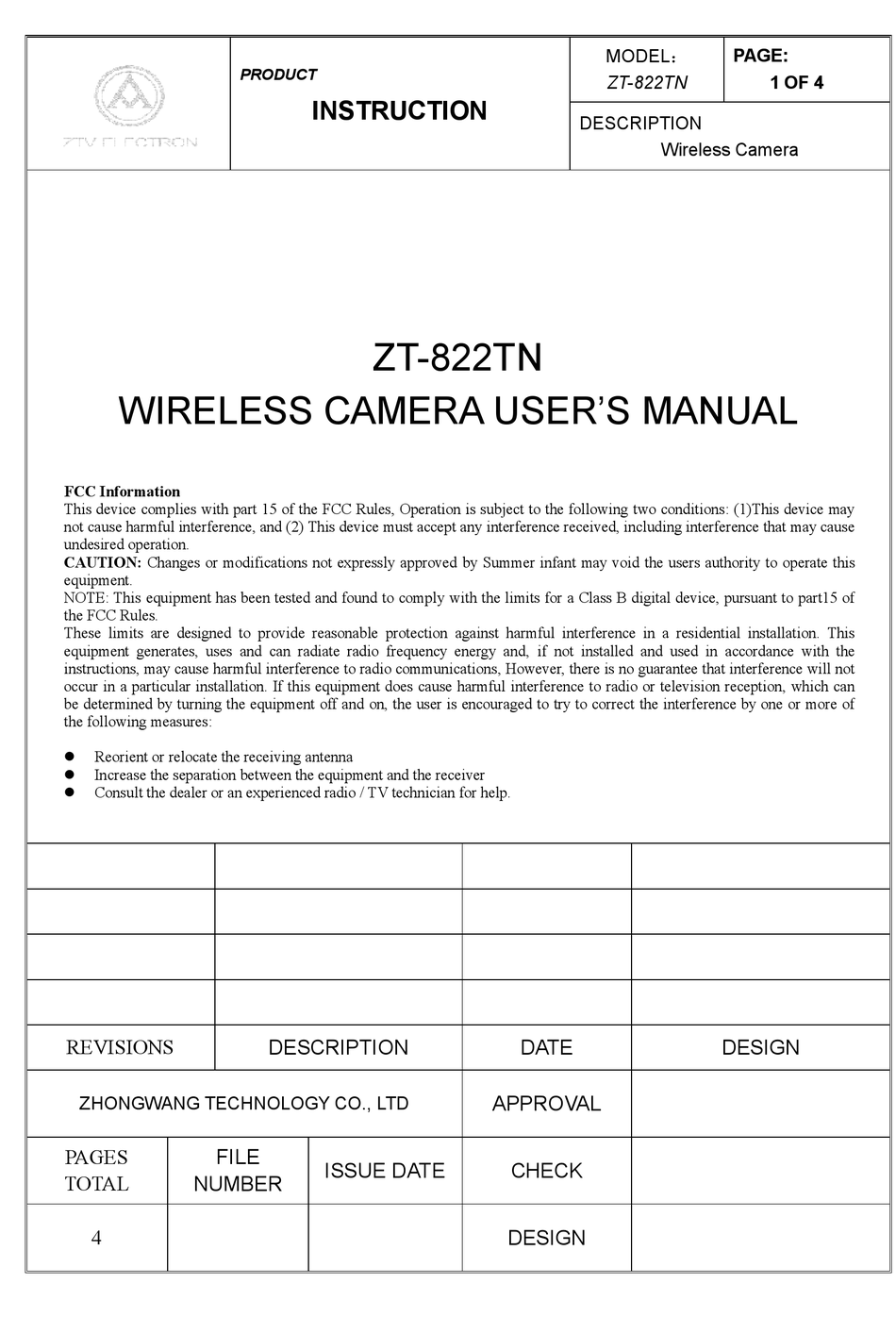

- Page 1 MODEL： PAGE: PRODUCT 1 OF 4 ZT-822TN INSTRUCTION DESCRIPTION Wireless Camera ZT-822TN WIRELESS CAMERA USER’S MANUAL FCC Information This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 2 MODEL：ZT-822TN FILE NUMBER： PAGES: 2 OF 4 Operation instruction 1. Connecting the receiver antenna. (Figure 1) 2. Connecting the 9V/12V direct current stabilizer (Figure 2), pilot lamp lighting (Figure 3). 3. Connecting the audio and video (figure 4) output with the input to the monitor, the television should be set on A/V model.
- Page 3 MODEL：ZT-822TN FILE NUMBER： PAGES: 3 OF 4 Technical Data ITEM TYPE Transmission Frequency 2.414~2.468GHz Electric power: DC 8V Output power 0±3dBm Video input: 1.0V (MAX) Power consumption current 80mA Audio input: (Max.) Effective range (no obstacles) CMOS IMAGE SENSOR 1/3-inch CMOS Image Sensor...
- Page 4 MODEL：ZT-822TN FILE NUMBER： PAGES: 4 OF 4 ① Receiver Antenna ② Receiver Power Socket ③ Receiver Indicator udio & Video Jack ④ ⑤ Monitor ⑥ Camera Power Jack ⑦ Flip-type Channel Controller ⑧: Adjustable Lens TEL： ZHONGWANG TECHNOLOGY CO.,LTD FAX：...
