EW6S426W
EN
Washing Machine
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EW6S426W

Summary of Contents for Electrolux EW6S426W

  • Page 1 EW6S426W Washing Machine User Manual...

  • Page 2: Table Of Contents

    1369/2017......................35 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

  • Page 3: Safety Information

    ENGLISH Subject to change without notice. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

  • Page 4: Safety Instructions

    This appliance is intended to be used in household • and similar applications such as: staff kitchen areas in shops, offices and other – working environments; by clients in hotels, motels, bed & breakfast and – other residential type environments;...
  • Page 5 ENGLISH the drum to prevent an internal be replaced, this must be carried out damage. by our Authorised Service Centre. • Always take care when moving the • Connect the mains plug to the mains appliance as it is heavy. Always use socket only at the end of the safety gloves and enclosed footwear.

  • Page 6: Installation

    2.6 Disposal • Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber WARNING! parts of the washing machine. Risk of injury or suffocation. Prewash such fabrics by hand before •...
  • Page 7 ENGLISH 6. Remove the bottom cover from the 9. Put the plastic caps, that you find in worktop. Using clips fix, that you find the user manual bag, in the holes. in the user manual bag, attach the cover to the bottom of the appliance. We recommend that you keep the packaging and 7.
  • Page 8 1. Make a U shape with the drain hose CAUTION! and put it around the plastic hose guide. Make sure there is no damage to hoses and there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short.

  • Page 9: Accessories

    If you install the appliance on a plinth, secure the appliance in the fixing plates. 4.2 Available in www.electrolux.com/shop or from authorised dealer Only appropriate accessories approved by ELECTROLUX ensure the safety standards of the appliance. If unapproved parts are used, any claims will be invalidated.

  • Page 10: Product Description

    5. PRODUCT DESCRIPTION 5.1 Appliance overview Worktop Drain hose Detergent dispenser Inlet hose connection Control panel Mains cable Door handle Transit bolts Rating plate Hose support Drain pump filter Feet for levelling the appliance 6. CONTROL PANEL 6.1 Special features •...
  • Page 11 ENGLISH 6.2 Control panel description Programme dial Spin reduction options touch button Display • No Spin option Delay Start touch button • Rinse Hold option Time Manager touch button • Night option Start/Pause touch button Temperature touch button Soft Plus touch button On/Off push button Extra Rinse touch button Prewash touch button...

  • Page 12: Dial And Buttons

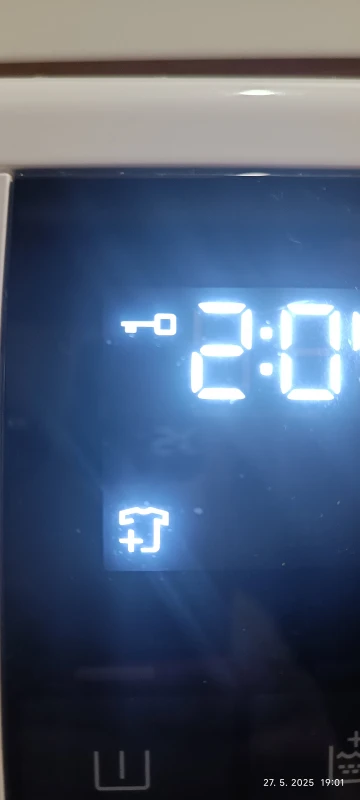

    Delay start indicator. The digital indicator can show: • Programme duration (e. g. • Delay time (e. g. • Cycle end ( • Warning code (e.g. Time Manager bars level indicator. Drum clean indicator. Child safety lock indicator. Add garments indicator. Illuminates at the beginning of the Wash phase, while the user can still pause the appli‐...
  • Page 13 ENGLISH creasing. The washing programme Use this option for people with allergies ends with water in the drum. to detergent residues and with sensitive The door stays locked and the drum skin. turns regularly to reduce creasing. This option increases the You must drain the water to unlock programme duration.

  • Page 14: Programmes

    (max. half load ■...
  • Page 15 ENGLISH Programme Reference Maxi‐ Programme description Default tem‐ spin (Type of load and soil level) perature speed load Temperature Spin range speed range [rpm ] 1200 rpm 3 kg Synthetic items or mixed fabric items. Nor‐ Synthetics (1200 - mal soil. 40 °C 400) 60 °C - Cold...
  • Page 16 Programme Reference Maxi‐ Programme description Default tem‐ spin (Type of load and soil level) perature speed load Temperature Spin range speed range [rpm ] 1200 rpm 1 kg Machine washable wool, hand washable Wool (1200- wool and other fabrics with «hand washing»...
  • Page 17 ENGLISH Programme Reference Maxi‐ Programme description Default tem‐ spin (Type of load and soil level) perature speed load Temperature Spin range speed range [rpm ] 800 rpm 1,5 kg Special programme for Denim clothing Denim (1200 - with delicate washing phase to minimize 30 °C 400) colour fading and marks.

  • Page 18: Settings

    Programme ■ ■ ■ ■ Wool ■ ■ ■ ■ ■ ■ Sport ■ ■ ■ ■ ■ Outdoor ■ ■ ■ ■ ■ ■ ■ Denim 8.2 Woolmark Apparel Care - Blue The wool wash cycle of this machine has been approved by The Woolmark Compa‐...

  • Page 19: Before First Use

    ENGLISH 10. BEFORE FIRST USE 1. Make sure that the electrical power is 4. Set and start a programme for cotton available and the water tap is open. at the highest temperature without 2. Pour 2 litres of water into the any laundry in the drum.
  • Page 20 Always obey the instructions that you find on the packaging of the detergent products. Detergent compartment for prewash phase or soak pro‐ gramme (if available). Add the detergent for prewash and soak before the start of the programme. The position B of the detergent...
  • Page 21 ENGLISH Make sure that the detergent divider is Cancelling the delay start after inserted properly and does not cause a the countdown has started blockage when you close the drawer. To cancel the delay start: 11.5 Setting a programme 1. Touch the Delay Start button 1.
  • Page 22 11.11 Opening the door - Manager bars placed below the Adding garments time digits play a simple animation. 2. After about 15-20 minutes the Time If the temperature and level Manager bars disappear and new of the water in the drum are cycle duration is displayed.

  • Page 23: Hints And Tips

    ENGLISH • You must drain the water to open the • You do not use the appliance for 5 door: minutes . Press the button On/Off to activate 1. If necessary, touch the Spin button to the appliance again. decrease the spin speed proposed •...

  • Page 24: Care And Cleaning

    • Follow the instructions that you find on packaging of the detergents or other treatments without exceeding the indicated maximum level ( • Use the recommended detergents for the type and colour of the fabric, the programme temperature and the level of soil.
  • Page 25 ENGLISH 13.2 Descaling Regularly examine the seal and remove all objects from the inner part. Coins, If the water hardness in your buttons, other small items forgotten in area is high or moderate, we the pockets of your clothes are deposited recommend that you use a during the washing cycle in the special water descaling product for...
  • Page 26 1. Open the drawer. Press the catch 3. Make sure that all detergent residue downwards as indicated in the is removed from the upper and lower picture and pull it out. part of the recess. Use a small brush to clean the recess.
  • Page 27 ENGLISH Always keep a rag nearby to dry up any water spillages when removing the filter. Proceed as follows to clean the pump:...
  • Page 28 WARNING! Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages. When you drain the water with the emergency drain procedure, you must activate the drain system again: 1.

  • Page 29: Troubleshooting

    ENGLISH 13.9 Emergency drain remaining water from the inlet hose and the drain pump. If the appliance cannot drain the water, 1. Disconnect the mains plug from the carry out the same procedure, described mains socket. in 'Cleaning the drain pump' paragraph. If 2.
  • Page 30 14.2 Possible failures Problem Possible solution • Make sure that the mains plug is connected to the mains socket. • Make sure that the appliance door is closed. • Make sure that there is no damaged fuse in the fuse box.
  • Page 31 ENGLISH Problem Possible solution • Make sure that the sink spigot is not clogged. • Make sure that the drain hose has no kinks or bends. • Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning". The appliance does not •...

  • Page 32: Consumption Values

    Problem Possible solution Too much foam in the • Reduce the quantity of detergent. drum during the wash‐ ing cycle. After the washing cycle, • Make sure that the detergent insert is in the correct po‐ there are some deter‐...

  • Page 33: Technical Data

    ENGLISH Programmes Load Energy Water Approxi‐ Remain‐ (kg) con‐ con‐ mate pro‐ ing mois‐ sumption sumption gramme ture (%) (kWh) (litre) duration (minutes) 0.61 Standard 60°C cotton 0.52 Standard 40°C cotton 1) At the end of spin phase. Off Mode (W) Left On Mode (W) 0.48 0.48...

  • Page 34: Quick Guide

    17. QUICK GUIDE 17.1 Daily use Connect the mains plug to the mains 2. Set the desired options by means of socket. the corresponding touch buttons (1). To start the programme, touch the Open the water tap. Start/Pause button (2).

  • Page 35: Product Information Sheet In Reference To E.u. Regulation 1369/2017

    1,5 kg Denim clothing. 1) Washing programme. 2) Washing programme and waterproofing phase. 18. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017 Product Information Sheet Trade Mark ELECTROLUX Model EW6S426W, PNC914340426 Rated capacity in kg Energy efficiency class A+++...
  • Page 36 Energy consumption in kWh per year, based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load, and the con‐ sumption of the low-power modes. Actual energy con‐ sumption will depend on how the appliance is used.
  • Page 37 ENGLISH 19. ENVIRONMENTAL CONCERNS appliances marked with the symbol Recycle materials with the symbol with the household waste. Return the Put the packaging in relevant containers product to your local recycling facility or to recycle it. Help protect the contact your municipal office. environment and human health by recycling waste of electrical and electronic appliances.
  • Page 38 www.electrolux.com...
  • Page 39 ENGLISH...
  • Page 40 www.electrolux.com/shop...
