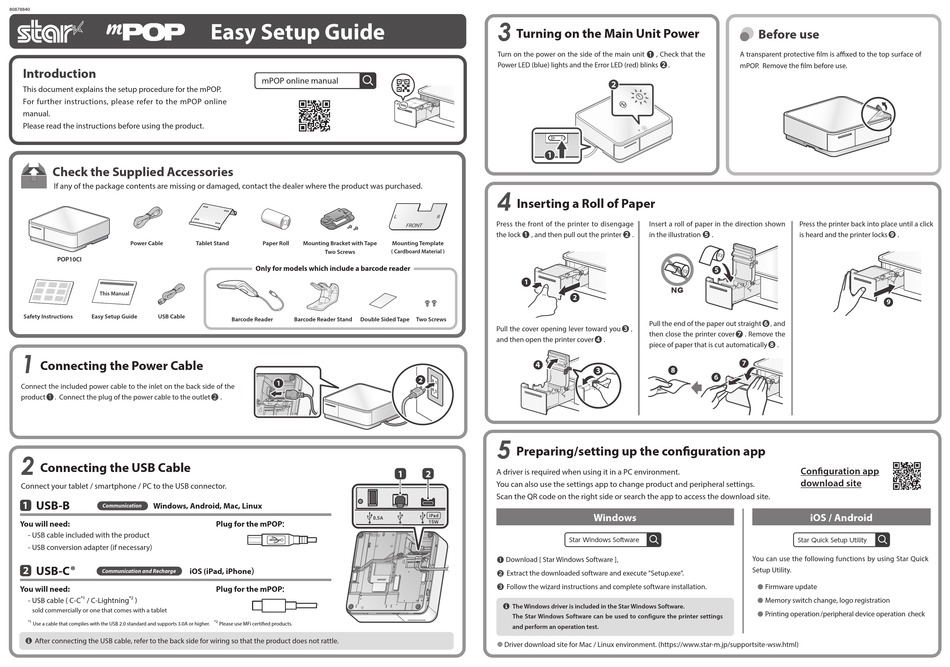

Star mPOP Easy Setup Manual

80878840
Introduction
This document explains the setup procedure for the mPOP.
For further instructions, please refer to the mPOP online
manual.
Please read the instructions before using the product.

Check the Supplied Accessories

If any of the package contents are missing or damaged, contact the dealer where the product was purchased.
Power Cable
POP10CI
This Manual
Safety Instructions Easy Setup Guide USB Cable
1

Connecting the Power Cable

Connect the included power cable to the inlet on the back side of the
❶
product . Connect the plug of the power cable to the outlet
2

Connecting the USB Cable

Connect your tablet / smartphone / PC to the USB connector.
1 USB-B
Windows, Android, Mac, Linux
Communication
You will need:
- USB cable included with the product
- USB conversion adapter (if necessary)
2 USB-C ®
Communication and Recharge
You will need:
*1 *2
- USB cable ( C-C / C-Lightning )
sold commercially or one that comes with a tablet
*1
Use a cable that complies with the USB 2.0 standard and supports 3.0A or higher.
After connecting the USB cable, refer to the back side for wiring so that the product does not rattle.

Easy Setup Guide
mPOP online manual
Tablet Stand Paper Roll Mounting Bracket with Tape
Two Screws
Only for models which include a barcode reader
Barcode Reader Barcode Reader Stand Double Sided Tape
1
❷
.
Plug for the mPOP:
iOS (iPad, iPhone）
Plug for the mPOP:
*2
Please use MFi certified products.
3

Turning on the Main Unit Power

Turn on the power on the side of the main unit
Power LED (blue) lights and the Error LED (red) blinks
1
4

Inserting a Roll of Paper

Press the front of the printer to disengage
❶
the lock , and then pull out the printer
Mounting Template
( Cardboard Material )
1
Two Screws
Pull the cover opening lever toward you
and then open the printer cover
4
2
5

Preparing/setting up the configuration app

1 2 A driver is required when using it in a PC environment.
You can also use the settings app to change product and peripheral settings.
Scan the QR code on the right side or search the app to access the download site.
Star Windows Software
 Download [ Star Windows Software ].

Extract the downloaded software and execute "Setup.exe".
 Follow the wizard instructions and complete software installation.
The Windows driver is included in the Star Windows Software.

The Star Windows Software can be used to configure the printer settings
and perform an operation test.
Driver download site for Mac / Linux environment. (https://www.star-m.jp/supportsite-wsw.html)
❶
, Check that the A transparent protective film is affixed to the top surface of
❷
.
mPOP. Remove the film before use.
2
Insert a roll of paper in the direction shown
❷ ❺
. in the illustration .
5 5
NG
2
Pull the end of the paper out straight
❸ ,
❼
then close the printer cover . Remove the
❹
.
piece of paper that is cut automatically
7
7
3 8
8
6
6
Windows
You can use the following functions by using Star Quick
Setup Utility.
Before use
Press the printer back into place until a click
❾
is heard and the printer locks .
9
9
❻ ,
and
❽
.
Configuration app
download site
iOS / Android
Star Quick Setup Utility
 Firmware update
 Memory switch change, logo registration
 Printing operation / peripheral device operation check
