Sealey EDA150 Instructions

Declaration of Conformity
We, the sole importer into the UK, declare that the product listed here
with the following EEC standards and directives. The construction file for
is held by the Manufacturer and may be inspected on request by contacting Jack
Sealey Ltd

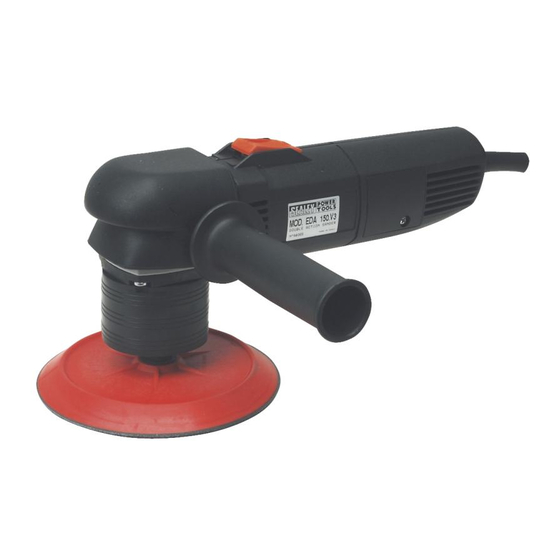

150MM DUAL ACTION RANDOM ORBITAL
SANDER Model: EDA150
73/23/EEC
Low Voltage Directive (S.I. 1994/3260)
89/336/EEC
EMC Directive (S.I. 1992/2372 & Amendments)
For Jack Sealey Ltd. Sole importer into the UK of Sealey
NOTE:
It is our policy to continually improve products and as such we reserve the right to alter data,
specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date, proof of which will be required for any claim. INFORMATION: Call us for a
copy of our latest catalogue on 01284 757525 and leave your full name, address including your postcode.
Sole UK Distributor, Sealey Group,
Bury St. Edmunds, Suffolk.
01284 757500 01284 703534
is in conformity
this product
Signed by John Sealey
1st February 1999
Power Tools.
E-mail: sales@sealey.co.uk
EDA150 - 0050 - 050199
Thank you for purchasing a Sealey Product. Manufactured to a high
standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1. ELECTRICAL SAFETY. p WARNING! It is the user’s responsibility to read, understand and comply as
follows. You must check all electrical equipment and appliances to ensure they are safe before using. You
must inspect power supply leads, plugs and all electrical connections for wear and damage. You must
ensure the risk of electric shock is minimised by the installation of appropriate safety devices. An RCCB
(Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend
that an RCD (Residual Current Device) is used with all electrical products. It is particularly important to use
an RCD together with portable products that are plugged into an electrical supply not protected by an RCCB.
If in doubt consult a professional electrician. You may obtain a Residual Current Device by contacting your
Sealey dealer. You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on a business premises,
to be tested by a qualified Electrician at least once a year by using a Portable Appliance Tester (PAT).
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the
appliance, and the safety of the appliance operator. If in doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power
supply. See 1.1.1. & 1.1.2. above and use a Portable Appliance Tester (PAT).
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply, leads, plugs and all electrical connections for wear and damage,
especially power connections, to ensure that none are loose.
1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power supply to be
used, and check that plugs are fitted with the correct capacity fuse. A 13Amp plug may require a fuse
smaller than 13Amps for certain products (subject to 1.1.10. below) see fuse rating below.
1.1.7. DO NOT pull or carry the powered appliance by its power supply lead. Products such as welders must not
be pulled or carried by their output cables.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damaged leads, plugs or connections.
Immediately replace or have repaired by a qualified Electrician.
A U.K. 3 pin plug with ASTA/BS approval is fitted. In case
of damage, cut off and fit a new plug according to the following
instructions (discard old plug safely). (UK only - see diagram at right).
Ensure the unit is correctly earthed via a three-pin plug.
a) Connect the green/yellow earth wire to the earth terminal ‘E’.
b) Connect the brown live wire to live terminal ‘L’.
c) Connect the blue neutral wire to the neutral terminal ‘N’.
After wiring, check there are no bare wires, that all wires
have been correctly connected and that the wire restraint is tight.
Double insulated products are often fitted with live (BROWN)
and neutral (BLUE) wires only. Double insulated products are always marked
with this symbol . Check you model carefully to see which type of product
your have. To re-wire, a double insulated item, connect the brown and blue
wires as indicated above. DO NOT connect brown or blue to the earth terminal.
1.1.10. Cable extension reels. When a cable extension reel is used it should be fully
unwound before connection. A cable reel with an RCD fitted is recommended
since any product which is plugged into the cable reel will be protected.
The section of the cable on the cable reel is important. We recommend that at least 1.5mm
but to be absolutely sure that the capacity of the cable reel is suitable for this product and for others that
may be used in the other output sockets, we recommend the use of 2.5mm
INSTRUCTIONS FOR
150MM DUAL ACTION
RANDOM ORBITAL SANDER
EDA150
Model:
Yellow & Green
Earth wire
Blue
Neutral
wire
Brown
Live
wire
wire
restraint
FUSE RATING
THIS PRODUCT MUST BE
FITTED WITH A:
5 Amp FUSE
section cable
2
section cable.
2
