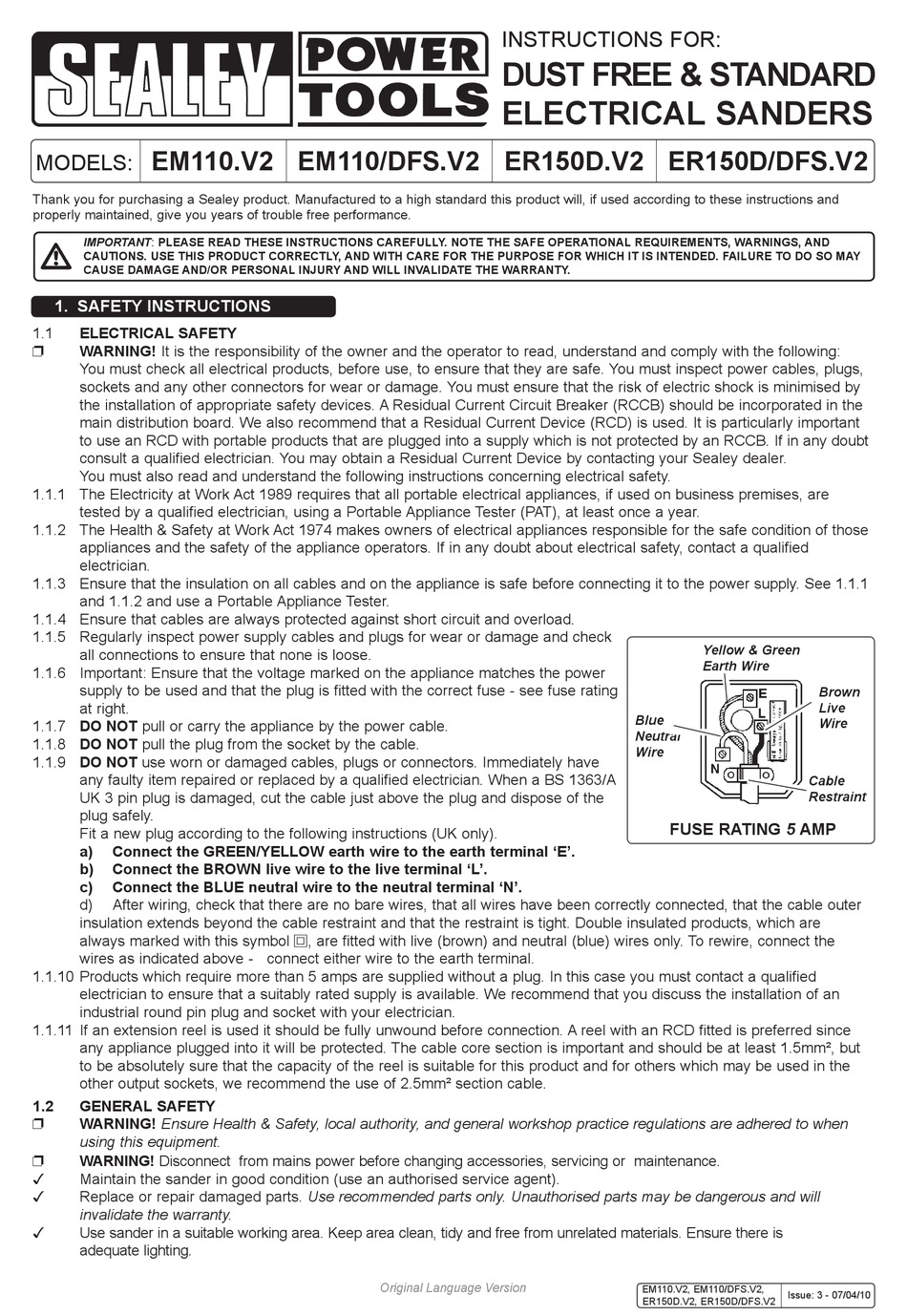

Sealey EM110.V2 Instructions

EM110.V2 EM110/DFS.V2 ER150D.V2 ER150D/DFS.V2
models:
thank you for purchasing a sealey product. manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PlEaSE REaD tHESE inStRuctiOnS caREFullY. nOtE tHE SaFE OPERatiOnal REQuiREMEntS, WaRninGS, anD
cautiOnS. uSE tHiS PRODuct cORREctlY, anD WitH caRE FOR tHE PuRPOSE FOR WHicH it iS intEnDED. FailuRE tO DO SO MaY
cauSE DaMaGE anD/OR PERSOnal inJuRY anD Will inValiDatE tHE WaRRantY.
1. SaFEtY inStRuctiOnS
1.1 ElEctRical SaFEtY
WaRninG! it is the responsibility of the owner and the operator to read, understand and comply with the following:

You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs,
sockets and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by
the installation of appropriate safety devices. A residual current circuit Breaker (rccB) should be incorporated in the
main distribution board. We also recommend that a residual current device (rcd) is used. it is particularly important
to use an rcd with portable products that are plugged into a supply which is not protected by an rccB. if in any doubt
consult a qualified electrician. You may obtain a residual current device by contacting your sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1 the electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are
tested by a qualified electrician, using a Portable Appliance tester (PAt), at least once a year.
1.1.2 the Health & safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those
appliances and the safety of the appliance operators. if in any doubt about electrical safety, contact a qualified
electrician.
1.1.3 ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. see 1.1.1
and 1.1.2 and use a Portable Appliance tester.
1.1.4 ensure that cables are always protected against short circuit and overload.
1.1.5 regularly inspect power supply cables and plugs for wear or damage and check
all connections to ensure that none is loose.
1.1.6 important: ensure that the voltage marked on the appliance matches the power
supply to be used and that the plug is fitted with the correct fuse - see fuse rating
at right.
1.1.7 DO nOt pull or carry the appliance by the power cable.
1.1.8 DO nOt pull the plug from the socket by the cable.
1.1.9 DO nOt use worn or damaged cables, plugs or connectors. immediately have
any faulty item repaired or replaced by a qualified electrician. When a Bs 1363/A
uK 3 pin plug is damaged, cut the cable just above the plug and dispose of the
plug safely.
fit a new plug according to the following instructions (uK only).
a) connect the GREEn/YEllOW earth wire to the earth terminal 'E'.
b) connect the BROWn live wire to the live terminal 'l'.
c) connect the BluE neutral wire to the neutral terminal 'n'.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer
insulation extends beyond the cable restraint and that the restraint is tight. double insulated products, which are
always marked with this symbol
wires as indicated above - connect either wire to the earth terminal.
1.1.10 Products which require more than 5 amps are supplied without a plug. in this case you must contact a qualified
electrician to ensure that a suitably rated supply is available. We recommend that you discuss the installation of an
industrial round pin plug and socket with your electrician.
1.1.11 if an extension reel is used it should be fully unwound before connection. A reel with an rcd fitted is preferred since
any appliance plugged into it will be protected. the cable core section is important and should be at least 1.5mm², but
to be absolutely sure that the capacity of the reel is suitable for this product and for others which may be used in the
other output sockets, we recommend the use of 2.5mm² section cable.
1.2 GEnERal SaFEtY
WaRninG! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when

using this equipment.
WaRninG! disconnect from mains power before changing accessories, servicing or maintenance.

maintain the sander in good condition (use an authorised service agent).

replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will

invalidate the warranty.
use sander in a suitable working area. Keep area clean, tidy and free from unrelated materials. ensure there is

adequate lighting.
, are fitted with live (brown) and neutral (blue) wires only. to rewire, connect the
Original Language Version
instructions for:
DuSt FREE & StanDaRD
ElEctRical SanDERS
Blue
Neutral
Wire
FuSE RatinG 5 aMP
em110.V2, em110/dfs.V2,
er150d.V2, er150d/dfs.V2
Yellow & Green
Earth Wire
Brown
Live
Wire
Cable
Restraint
issue: 3 - 07/04/10
