Thank you
for choosing another quality product from Amperes Electronics.
Introducing another product for the convenience of installation when it is required to send audio / data from a distance

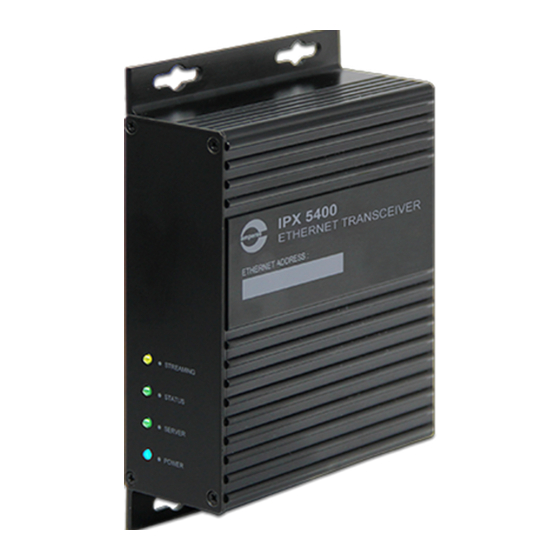

away. iPX5400 is a transceiver unit, which is able to operate in duplex mode ( paging ), works in pair in LAN environment
or connected directly via UTP cable or Fiber through a converter. It is a simple device allowing peer to peer communication
without the need to employ full IP solutions in your system.
Among applications includes :
- Sending audio from Guard House's paging mic to main system at a distance away through fiber link thus reducing the
risks of lightning surge
- Rack to rack audio / data transmission through existing LAN, thus avoiding the need to lay new cables
- Apply it with wireless AP for areas where laying of new cables are not feasible.
Get more information and
latest updates
INSTRUCTION MANUAL
R
iPX5400
Ethernet Transceiver
VER 2 / 2022
Advertisement
Table of Contents
Related Manuals for Amperes iPX5400
Summary of Contents for Amperes iPX5400
- Page 1 Introducing another product for the convenience of installation when it is required to send audio / data from a distance away. iPX5400 is a transceiver unit, which is able to operate in duplex mode ( paging ), works in pair in LAN environment or connected directly via UTP cable or Fiber through a converter.
- Page 2 Ethernet Port for connection to network switch. 4. RESET BUTTON Press to enable iPX5400 to enter bootloader mode or reset the unit to factory settings. Bootloader mode : Press and hold until Power, Server and Status LEDs lit. This mode enables firmware updating if normal updating not possible.
- Page 3 Audio ( line level output ) and RS485 output shall be connected to iPX5400 as per diagram below, and at the receiving end, audio shall be fed to mixer and the RS485 data shall go to TD decoder for zone activation. In this mode, duplex operation is allowed.
- Page 4 Device Setup Via Browser iPX5400 shall require some simple setups, kindly follow the step by step instructions as listed below. The unit shall be connected to LAN network to form a complete system. The default IP address is 192.168.0.100. Login page shall appear and the default User ID and Password are both “admin”.
- Page 5 Device Configurations IPX BRIDGE CONFIGURATION : iPX5400 works in pair. Enter the other unit’s IP address for pairing. AUDIO TRANSMISSION : Several modes of audio transmission is available such as - Always On - allows the transmitter to send audio continuously .
- Page 6 Update firmware in Bootloader Mode: If the iPX5400 “hanged”, it is required to perform system reset by : 1. Press & hold the reset button until “ STREAMING ” LED is turned ON. This will set the IP address to default address 192.168.0.100.
- Page 7 Case : 100 x 147 x 40 mm Dimension (WxHxD) 320 g Weight Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. iPX5400 | ETHERNET TRANSCEIVER PAGE 7...
- Page 8 Information contained in this manual is subject to change without prior notice and does not represent a commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or damages whatsoever arising from the use of information or any error contained in this manual.
