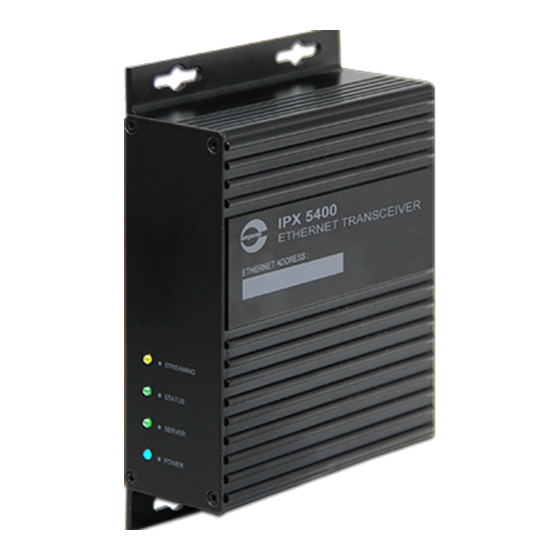

Amperes iPX5400 Instruction Manual

Ethernet transceiver
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

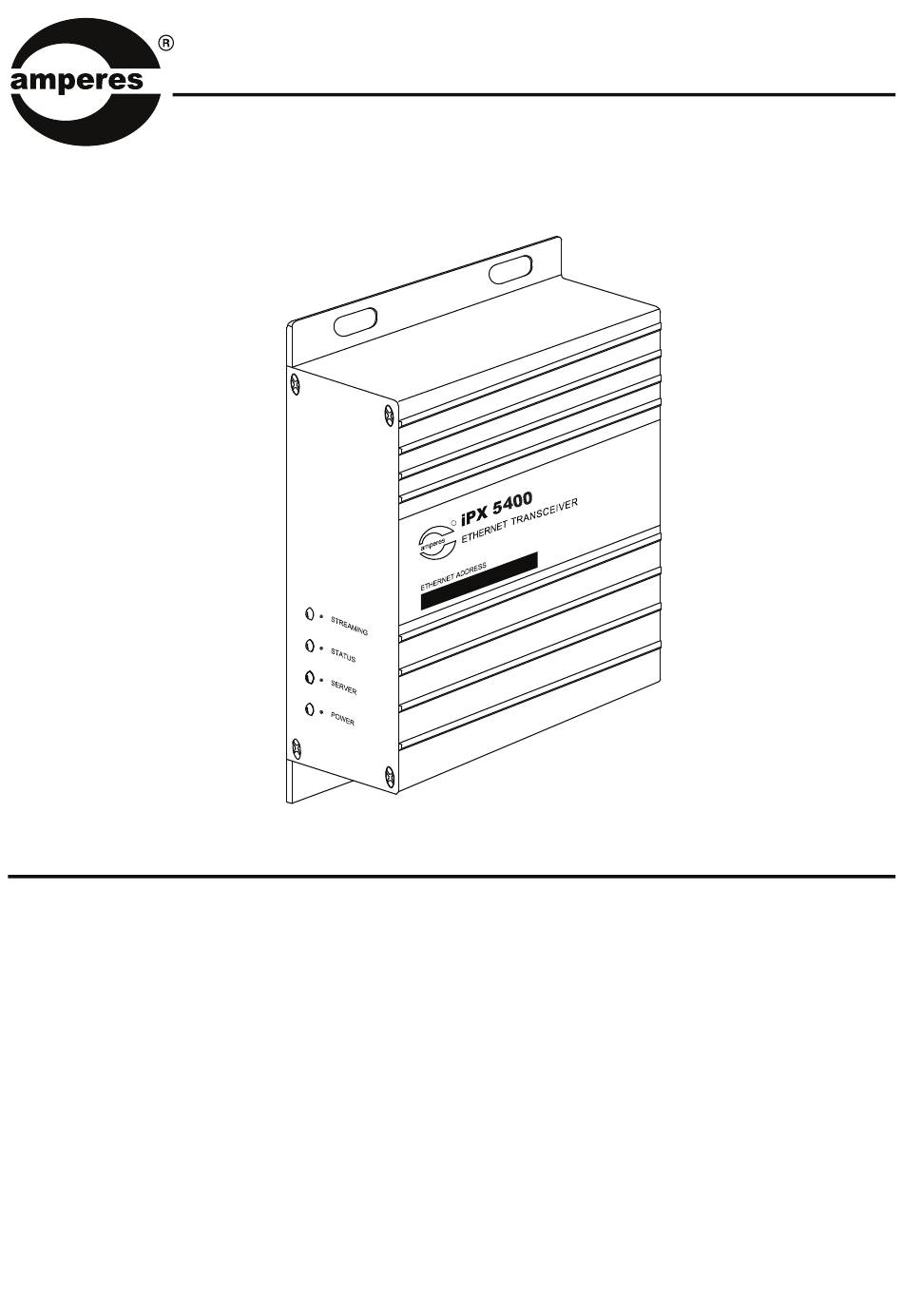

INSTRUCTION MANUAL
iPX5400
Ethernet Transceiver
R
Thank you
for choosing another quality product from Amperes Electronics.
Introducing another product for the convenience of installation when it is required to send audio / data from a distance
away. iPX5400 is a transceiver unit, which is able to operate in duplex mode ( paging ), works in pair in LAN environment
or connected directly via UTP cable or Fiber through a converter. It is a simple device allowing peer to peer communication
without the need to employ full IP solutions in your system.
Among applications includes :
- Sending audio from Guard House's paging mic to main system at a distance away through fiber link thus reducing the
risks of lightning surge
- Rack to rack audio / data transmission through existing LAN, thus avoiding the need to lay new cables
- Apply it with wireless AP for areas where laying of new cables are not feasible.
VER 2 / 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iPX5400 and is the answer not in the manual?

Questions and answers

Related Manuals for Amperes iPX5400

Summary of Contents for Amperes iPX5400

  • Page 1 Introducing another product for the convenience of installation when it is required to send audio / data from a distance away. iPX5400 is a transceiver unit, which is able to operate in duplex mode ( paging ), works in pair in LAN environment or connected directly via UTP cable or Fiber through a converter.

  • Page 2: Parts Identification

    LED to indicate audio signal’s presence. 9. MIC AUDIO INPUT Audio input signal from paging mic with balanced line level. 10. AUDIO OUTPUT PORT Audio output from client for connection to mixer, etc with balanced line level. PAGE 2 iPX5400 | ETHERNET TRANSCEIVER...
  • Page 3 Audio ( line level output ) and RS485 output shall be connected to iPX5400 as per diagram below, and at the receiving end, audio shall be fed to mixer and the RS485 data shall go to TD decoder for zone activation. In this mode, duplex operation is allowed.
  • Page 4 Device Setup Via Browser iPX5400 shall require some simple setups, kindly follow the step by step instructions as listed below. The unit shall be con- nected to LAN network to form a complete system. The default IP address is 192.168.0.100. Login page shall appear and the default User ID and Password are both “admin”.
  • Page 5 NOTE: Treble Remote IP: At transmitting end this field is key in with receiv- ing end iPX5400 IP address. At receiving end, leave this box blank. Web Page Theme Volume / Bass / Treble: Adjust the paging / music volume / bass / level.

  • Page 6: Firmware Update

    1. Press & hold the reset button until “ STREAMING ” LED is turned ON. This will set the IP address to default address 192.168.0.100. 2. Press & hold the reset button untill “STATUS” LED is turned ON. This will make iPX5400 enter bootloader mode. 3. Open a browser and enter the IP address 192.168.0.100. A web page as shown below shall appear.

  • Page 7: Summary Of Features

    Case : 100 x 147 x 40 mm Dimension (WxHxD) 320 g Weight Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. iPX5400 | ETHERNET TRANSCEIVER PAGE 7...

  • Page 8: Warranty Conditions

    Information contained in this manual is subject to change without prior notice and does not represent a commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or damages whatsoever arising from the use of information or any error contained in this manual.
