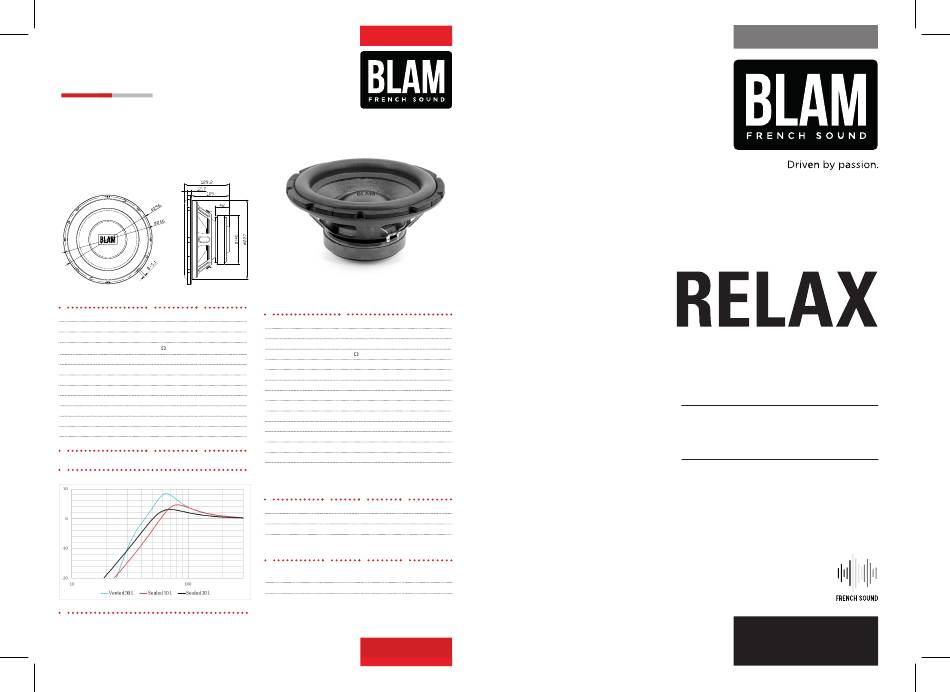

BLAM RELAX R10 DB User Manual

RELAX
R10 DB
Subwoofer
• 250 mm (10'') subwoofer
• Max. power 500 W / Nominal Power 250 W
TECHNICAL SPECIFICATIONS
Component Subwoofer
500 W
Max power
Nominal power 250 W
Impedance 2 x 2
Freq. Response 45 Hz - 500 Hz
Sensitivity (2,83V/1m) 90.6 dB
Magnet Ferrite
Magnet size Ø x h 140 x 20 mm 5.512''x 0.787''
Total driver displacement 1.1 l 0.039 cf
3.13 kg 6.89 lb
Weight of one component
Voice coil Ø 50 mm 1.968"
Voice coil height 30 mm 1.181"
Paper
Cone
FREQUENCY RESPONSE / IMPEDANCE
50
THIELE-SMALL PARAMETERS
effective Ø (d) 205 mm
Sd 330.06 cm²
13 mm
Xmax
Re 1.56
Fs
39.28 Hz
Le 204.98 µH @ 1 kHz
L2 500.55 µH @10 kHz
Vas
24.18 L
Mms 103.9 g
Cms 0.000158 m/N
BL 6.29 Tm
Qts 0.89
Qes 1.01
Qms 7.41
SEALED
Internal volume Vb Qtc F-3dB Boost
10 L
1.643 50 Hz 4.7 dB at 76 Hz
20 L 1.321 42 Hz 3.1 dB at 66 Hz
VENTED
Internal
Internal Lenght
F-3dB Boost
volume Vb
ø port port
30 L 10 cm 39 Hz 8.5 dB at 63 Hz
30 cm
