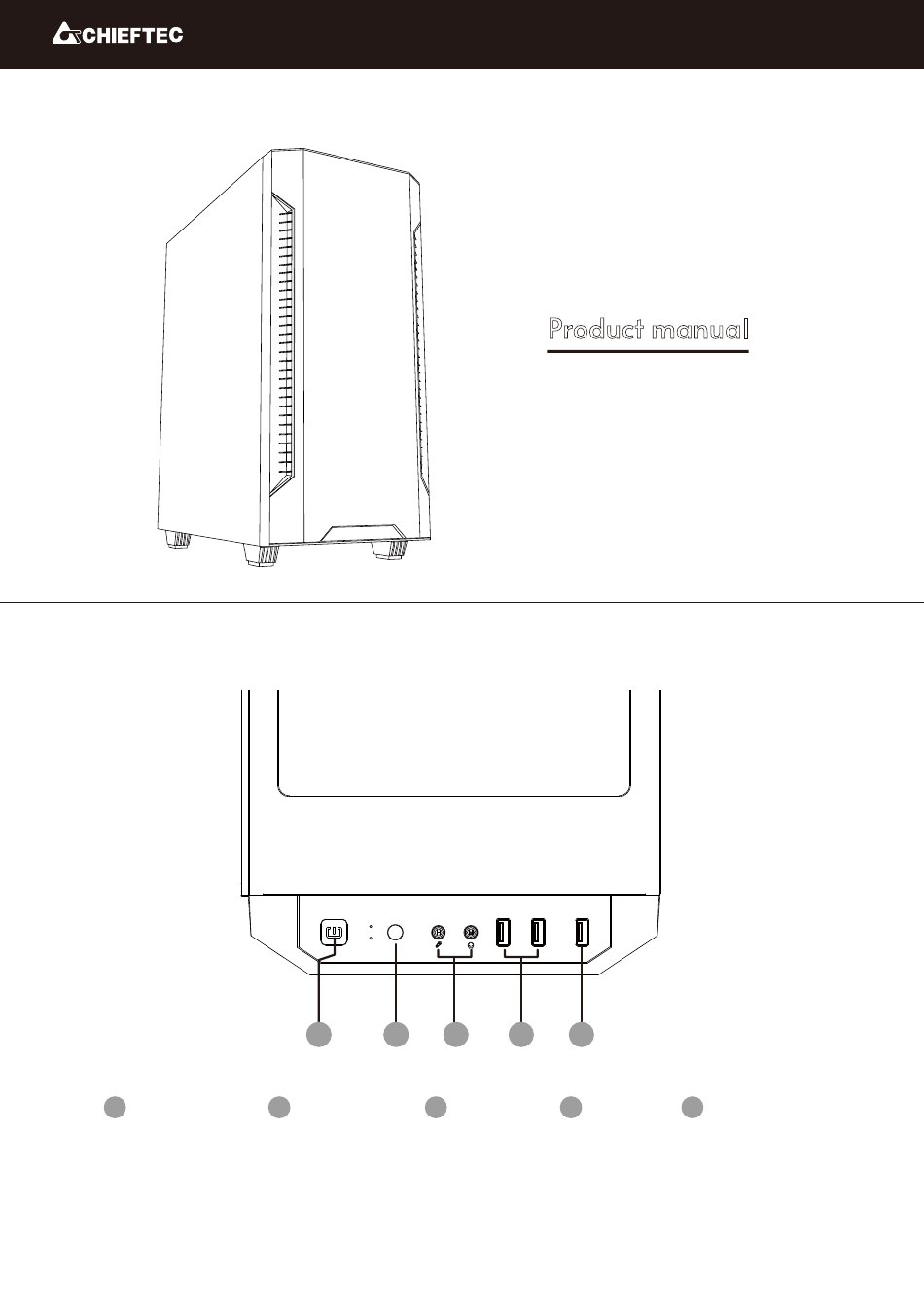

- Page 1 IN THIS YOU CAN TRUST Product manual Elox Series / AS-01B-OP I/O PORTS Power Switch Reset button HD Audio USB 2.0 USB 3.0 - 01 -...
- Page 2 SPECIFICATION Model No. AS-01B-OP Materials SPCC 0.5mm mixed thickness black inner chassis Motherboard support ATX/M-ATX/ITX PSU type ATX PSU (Bottom located) TOP panel I/O ports USB3.0*1+USB2.0*2, HD Audio Drive Bays 3.5'' HDD*1 + 2.5'' SSD*3 or 3.5'' HDD*2 + 2.5'' SSD*2 Expansion Slots 7 slots , Support up to 340mm (Max.) VGA card CPU Cooler Height...
- Page 3 EXPLOSIVE VIEW Chassis Left side panel Right side panel Front panel PSU cover HDD bracket SSD bracket Magnetic dust filter on the top Dust filter on the bottom 1*120mm fan on the rear(included) 2*120mm fans on the top(optional) 3*120mm fans on the front(optional) 2*120mm fans on the PSU cover(optional) POWER SUPPLY INSTALLATION Insert PSU from left side...
- Page 4 VGA CARD INSTALLATION Remove the PCI slot protection cover. Install the graphics card Secure it with a screw. HDD AND SSD INSTALLATION HDD installation Loosen 2pcs screws for HDD bracket, pull out HDD bracket Secure with screws LIQUID COOLING INSTALLATION Put the 120mm radiator in the rear panel Secure with screws Put the radiator in the front panel...
- Page 5 Fix SSD on bracket up side and secure with screws first, then Put bracket on chassis after HDD installation, and secure fix HDD with 2pcs screws SSD installation Take off SSD bracket, then fix SSD on bracket and lock bracket to previous place Put the radiator in the top panel Secure with screws Front: 120/140/240/280mm liquid cooling...
- Page 6 FAN INSTALLATION Front: 120mm x3 or 140mm x2(optional) Top: 120mm x2 or 140mm x2(optional) Rear: 120mm x1 (included) PSU Cover: 120mm x2 (optional) IN THIS YOU CAN TRUST - 06 -...
