HeiSolar Angel Eye Series User Manual

Installation Guide

15W-80W

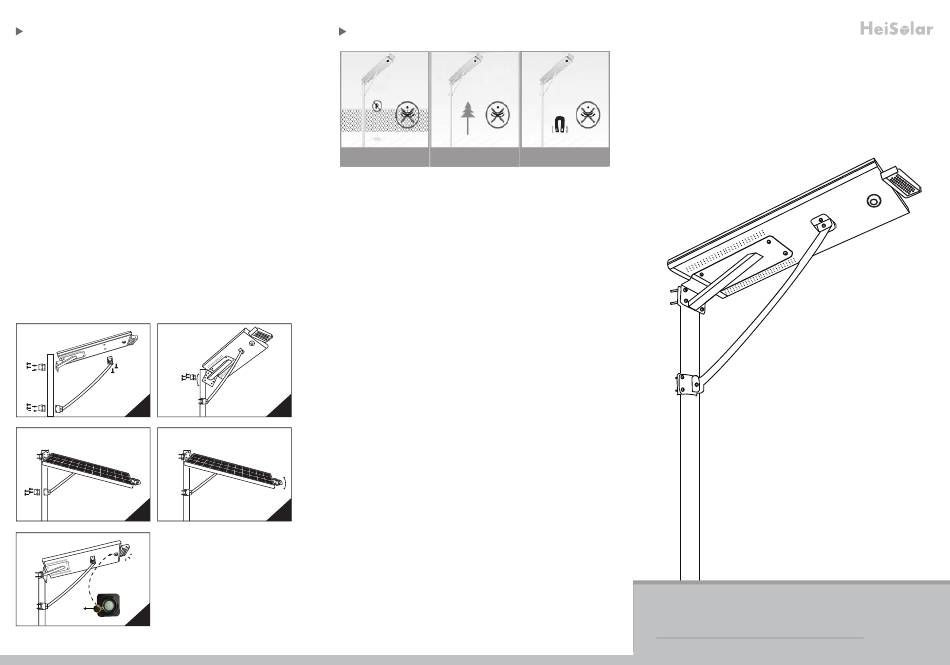

1. Connect the end of the bent pipe to unit main body with 1pc M8x50
screw, and another end to the anchor ear B with 1pc M8x50 screws.
2. Fix the anchor ear B to base by fastening 4pcs M8x100 screws.
3. Fix the anchor ear B to anchor ear A by fastening 4pcs M8x100 screws.
adjust the led source to be vertical with pole and setting a proper
direction.
4. Place the lamp onto the pole, then tighten the screws, tearing off the
protective PVC sheeting, adjust the led source to be vertical with pole
and setting a proper direction.
5. Finished the installation, press the switch button on the microwave
sensor, the lamp will light for 1 min then turn off automatically.
1
3
Switch
5

Microwave Sensor

NO METAL NO TREES

What is microwave sensor?

Microwave sensor works by emitting high frequency electric
wave to detect objects'movement, such cases above may
result in not working well.

Why choose microwave for outdoor lighting?

1. It can get through glass, wood, plastic and other non-
metallic object, so it can beinstalled inside and there is no
influence on lamp`s appearance.
2. It won`t be influenced by airflow, dust, temperature,
humidity like PIR.

What should be noticed when using microwave sensor?

Microwave has been improved a lot compared to PIR, but it
2
is still not perfect. It may be influenced by metallic things
and it`s very sensitive to some extension, may detect other
objects' movement such as leaves' movement.
The wrong working situations as below:
1. Light flickers un-regularly.
4
2. The lamp is too sensitive, so it is always at 100% light, then
battery can`t last long.
3. Sensor does not work, not light when people come close.
