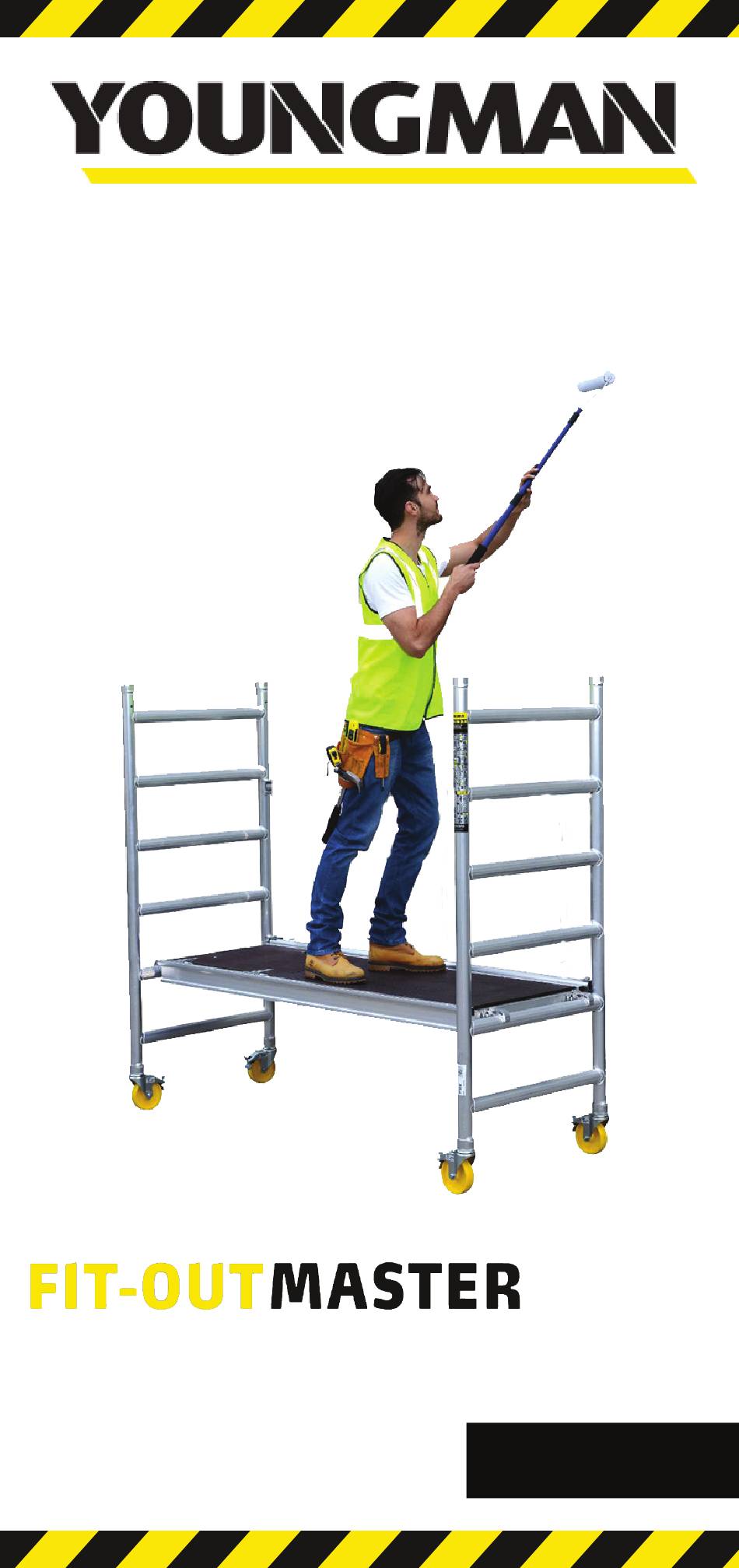

- Page 1 Mobile Aluminium Trade Quality Access Tower System 3T - Through the Trapdoor Method USER GUIDE...
- Page 2 Contents Safety First 2 - 7 Component Diagram Component Quantity & Safety Data Schedule 9 - 10 Build Method 11-31 Pre-use Safety Inspection Checklist YOUNGMAN FIT-OUT MASTER User Guide...
-
Page 3: Safety First
We recommend that personnel erecting, dismantling or altering towers must be competent. Any person using or erecting a FIT-OUT MASTER mobile tower must have a copy of this guide. For further information on the use of mobile access and working towers follow the PASMA operator’s code of practice. -
Page 4: Preparation And Inspection
(e.g. strong rope) employing a reliable knot (e.g. clove hitch) to ensure safe fastening and always lift within the footprint of the tower. ● Assembled mobile towers should not be lifted with a crane or other lifting device. YOUNGMAN FIT-OUT MASTER User Guide... - Page 5 The maximum safe platform load that can be placed on any one platform in a tower is 220kg which must be evenly distributed over the platform. ● Where there is only one platform in a tower, the maximum safe tower load is limited to 220kgs. YOUNGMAN.CO.IN...
- Page 6 After every movement of the tower use a spirit level to check that it is vertical and level and set the adjustable legs as required. ● Do not move the tower in wind speeds over 7.7 metres per second (27kmph). YOUNGMAN FIT-OUT MASTER User Guide...
-
Page 7: During Use
Maximum horizontal force 20kg. ● Mobile towers are not designed to be suspended - please refer to your supplier for advice. ● Do not use boxes or stepladders or other objects on the platform to gain extra height. YOUNGMAN.CO.IN... -
Page 8: Maintenance - Storage - Transport
Brace claws, frame interlock clips, trapdoor latches and platform wind-locks should be regularly checked to ensure they lock correctly. ● Components should be stored with due care to prevent damage. ● Ensure components are not damaged by excessive strapping forces when transported. YOUNGMAN FIT-OUT MASTER User Guide... - Page 10 Quantity Schedule Quantity schedule in packs FIT-OUT MASTER tower to EN1004: 1.83M platform length YOUNGMAN FIT-OUT MASTER User Guide...
- Page 11 Quantity Schedule Quantity schedule in components FIT-OUT MASTER tower to EN1004: 1.83M platform length Toe boards required if risk assessment shows necessary. YOUNGMAN.CO.IN...
- Page 12 Use a spirit level to check the base unit is level. Adjust the legs as necessary, to level the base unit. Important: Only use the adjustable legs to level the base and not Locked to gain extra height. YOUNGMAN FIT-OUT MASTER User Guide...
-
Page 13: Assembly Procedure
Lock the brakes on all four castors wheels. Ensure the castors are facing outwards from the base unit. contact with the ground. Use a spirit level to check the base adjustable legs. See Fitting Adjustable Legs section on page 11 for guidance. YOUNGMAN.CO.IN... - Page 14 Refer to the Fitting Adjustable Legs section on page 11 for guidance. Fit a horizontal brace between the bottom rungs on the front face of the base unit. Important: Always ensure braces are fully locked in position. YOUNGMAN FIT-OUT MASTER User Guide...
- Page 15 Important: Always ensure braces are fully locked in position. Fit a trapdoor platform on the 6th rungs of the base unit. Engage the wind-locks, underneath the rungs, at both ends of the platform. YOUNGMAN.CO.IN...
- Page 16 If your risk assessment shows it platform checking that there are no gaps and that the trapdoor opens and closes correctly. The tower structure is now complete at 1.7m platform height Refer to the Fitting Toe Boards section on page 31 for guidance. YOUNGMAN.CO.IN...
-
Page 17: Dismantling Procedure
There are two slots depending on which side you position the diagonal brace. Clip into correct slots, as shown, ensuring that no large objects can fall through and that the trap door can open with ease. YOUNGMAN FIT-OUT MASTER User Guide... -
Page 18: Safety Checklist
Inspect tower prior to use Tower upright and level Castors locked and legs correctly adjusted Platforms located and wind-locks on Toe boards located Ensure horizontal braces and Refer to this checklist before using each time. YOUNGMAN.CO.IN... - Page 19 Notes YOUNGMAN FIT-OUT MASTER User Guide...
- Page 20 Notes YOUNGMAN.CO.IN...
- Page 21 UNIT - 1: PLOT NO. 237 UDYOG KENDRA-1 ECOTECH-1, GREATER NOIDA 201308 {U.P.) +91 9015964626 sales@youngman.co.in YOUNGMAN.CO.IN ©2018 YOUNGMAN INDIA...
