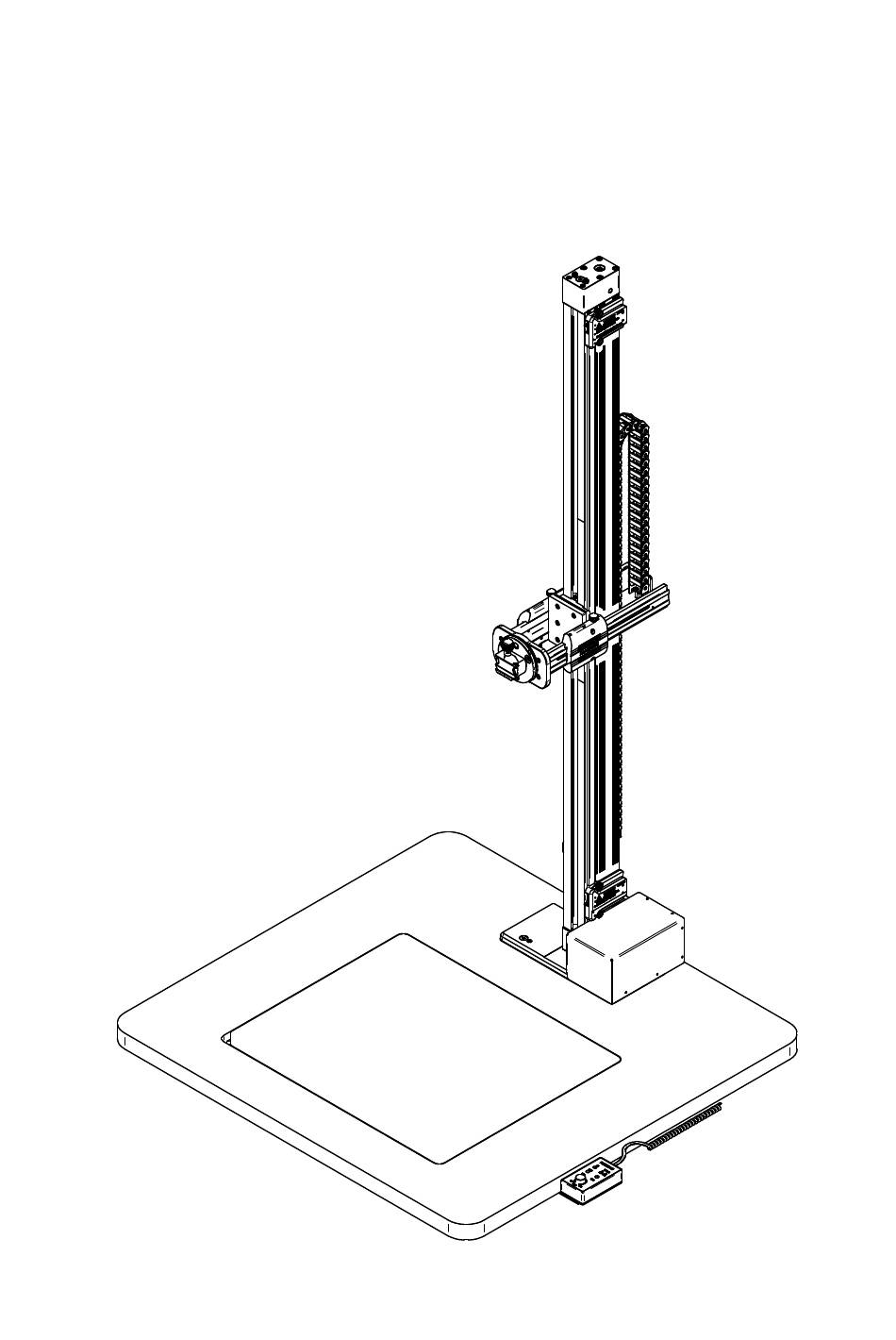

  • Page 1 PHASEONE TABLE TOP COLUMN INSTALLATION MANUAL READ CAREFULLY BEFORE UNPACKING!
  • Page 2 UNPACK THE TABLE NECESSARY BOLTS AND KEYS ARE SUPPLIED INSIDE THE BROWN ACCESSORY BOX INSIDE THE COLUMN PACKAGING Instal the remote holder: The remote holder (1.) is located underneath the table. Loosen knobs (2.) to slide out the remote holder. Place the remote holder facing out and retighten the knobs.
  • Page 3 UNPACK THE COLUMN Unpack the column by lifting it vertically from the packaging. Remove the plastic and start by fixing the column to the table. FIX THE COLUMN TO THE TABLE DETAIL D Place the footplate of the column on top of the metal insert plat of the table carefully. Fix the column to the table using the four supplied M8x30 countersunk bolts using Allen Key 5mm Tighten firmly! IMPORTANT NOTE! DO NOT TOUCH THE SET SCREWS.
  • Page 4 FIX THE QUICK RELEASE place 3/8 bolt from the rear Fix with knob pointing up! Fix the quick release with the knob pointing up! Push the pins of the quick release in the designated holes of the leveling plate. Fix the quick release using the supplied 3/8 bolt using key 5/16 Tighten firmly.
  • Page 5 FIX THE MOTOR CASE Fix the motor control box to the back of the column by using the designated velcro strips. Fix the motor case to the footplate by using the supplied m3x6 socket head cap screws using the 2mm Allen Key.
  • Page 6 CABLE GUIDANCE DETAIL E Open the links in the corner from the inside. Feed both ends of the downwards through the calbe chain. Use the supplied re-useable cable straps to fix the cable to the chain for strain relief. To remove the chain from the column, open two or three links above the mounting link. Depending on the end of the cable, you can now squeeze or push open the links to remove them from the mounting link.
