Summary of Contents for Fysic B26

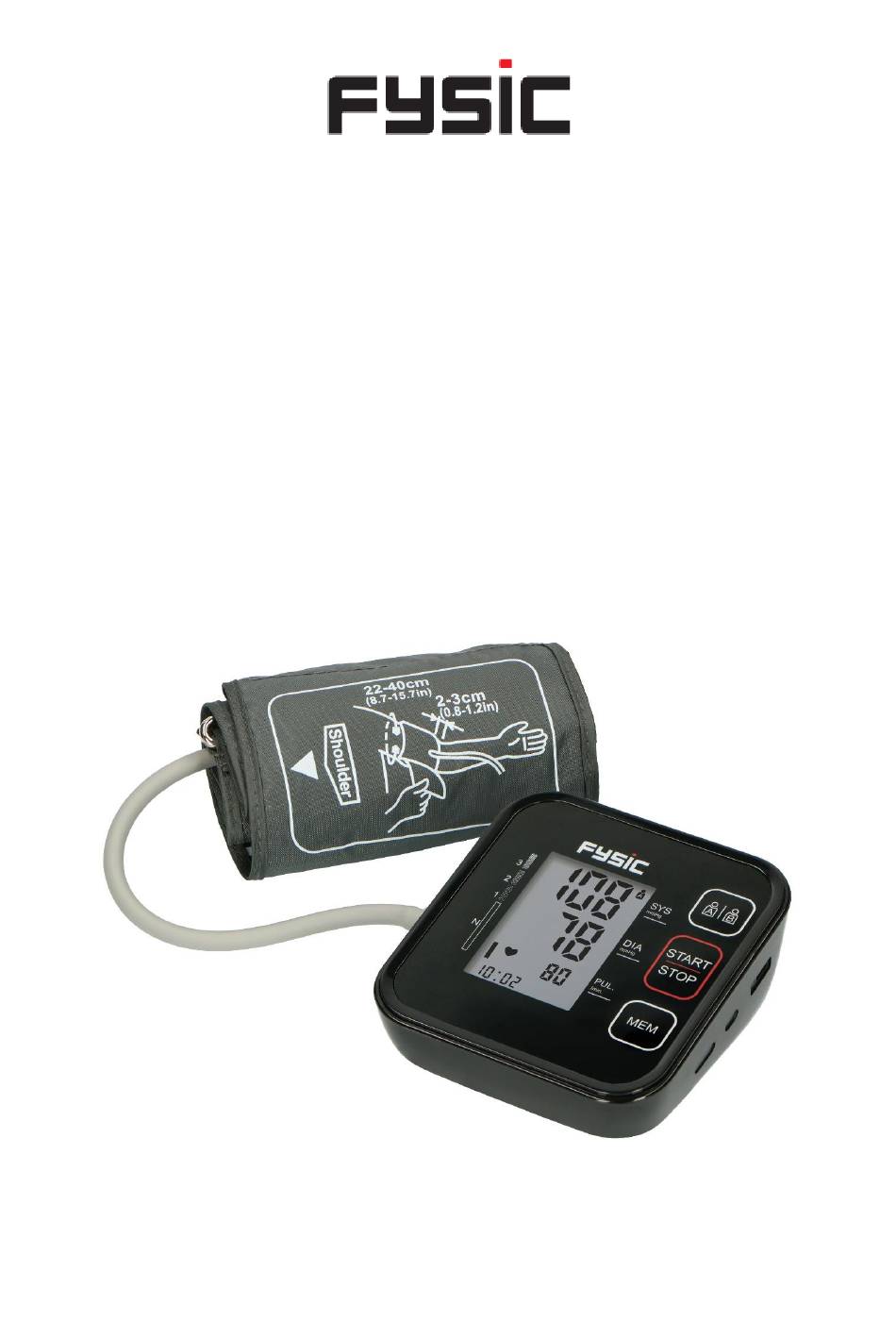

- Page 1 Fully Automatic Upper Arm Blood Pressure Monitor Model Number: B26 / FB150 USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Introduction and Intended Use ......................2 Important Information on Blood Pressure and its Measurement ............3 Components of your blood pressure monitor ..................5 Using your Monitor for the First Time ....................6 Measurement Procedure ........................8 Care and Maintenance ........................14 Warranty/Service.......................... -
Page 3: Introduction And Intended Use
1 Introduction and Intended Use It enables reliable measurement of systolic and diastolic blood pressure as well as pulse through the oscillometric method. Before using, please read this instruction manual carefully and then keep it in a safe place. 1.1 Remember… ⚫... -
Page 4: Important Information On Blood Pressure And Its Measurement
Warning: Don’t place the cuff over wound part. Warning: Pressurization of the CUFF can temporarily cause loss of function of simultaneously used monitoring EQUIPMENT on the same limb. Caution: To avoid any possibility of accidental strangulation, keep this unit away from children and do not drape tubing around your neck. - Page 5 2.2 Which values are normal? Please refer to the diagram below (Picture-01) Picture-01 There are six grids in the display of device. Please refer to the picture-01-01. Different grids represent different interval scales of WHO. Blood pressure value WHO grids in device WHO Classification DIA<80 &...
-
Page 6: Components Of Your Blood Pressure Monitor
3 Components of your blood pressure monitor 3.1 Measuring unit Picture-02 Picture-03... -
Page 7: Using Your Monitor For The First Time
11. Movement error symbol 12. USER B 13. USER A 14. Cuff self-checking function 15. Memory symbol 3.3 Features B26 / FB150 1. Date/time display 2. Double users: 2 x 120 sets memory 3. Average value function 4. Irregular heartbeat checking 5. - Page 8 batteries. Replace with 4 new batteries at the same time. Long-life alkaline batteries are recommended. 2. To prevent the damage of monitor from leaked battery fluid, please take out of battery if the monitor unused in a long time (generally more than 3 months). If battery fluid should get in your eyes, immediately rinse with plenty of clean water.
-
Page 9: Measurement Procedure
5 Measurement Procedure 5.1 Before measurement: ⚫ Avoid eating and smoking as well as all forms of exertion directly before measurement. These factors influence the measurement result. Find time to relax by sitting in an armchair in a quiet atmosphere for about ten minutes before taking a measurement. - Page 10 5.3 Measure Procedure Refer to picture-06 1. Sit comfortably in a chair with your feet flat on the floor. 2. Select your User ID (A or B). 3. Stretch your arm forward on the desk and keep relaxing, make sure the palm of hand is upturned. Make sure arm is in correct position, to avoid body movement.
- Page 11 Picture-06 5.4 Irregular Heartbeat Detector This symbol - indicates that certain pulse irregularities were detected during the measurement. In this case, the result may deviate from your normal basal blood pressure – repeat the measurement. Information for the physician on frequent appearance of the Irregular Heartbeat Symbol. This instrument is an oscillometric blood pressure monitor device that also analyzes pulse frequency during measurement.
- Page 12 SYMBOL CAUSE CORRECTION Check if the air releasing is too slow or not. If it is too slow, please check if there is Monitor could not detect pulse any dust in the tube plug of the cuff and Er 2 wave or cannot calculate the blood the cuff port in the device.
- Page 13 SYMBOL DESCRIPTIONS The following symbols may appear in this manual, on the Digital Blood Pressure Monitor B26 / FB150, or on its accessories. Some of the symbols represent standards and compliances associated with the Digital Blood Pressure Monitor B26 / FB150 and its use.
- Page 14 Handle gently Temperature range No Sterilize requirement Not category AP / APG equipment Mode of operation: continuous 5.6 Memory Each unit stores 120 sets measurements for 2 users, totally 240 sets (User A and B). Viewing the stored values With the unit off, press the Memory button. The display first shows "A", then shows an average of all measurements stored in the unit.
-
Page 15: Care And Maintenance
6 Care and Maintenance Wash hands after each time measurement. If one device is used by different patients, wash hands before and after each use. a) Do not expose the device either to extreme temperatures, humidity, dust or direct sunlight. b) The cuff contains a sensitive air-tight bubble. -
Page 16: Technical Specifications
9 Technical Specifications Model: B26 / FB150 Weight: 261.3g (Batteries included) Display: 48*65mm【2.56"x1.89"】LCD Digital Display Size: 118 (W) x 110 (L) x 52 (H) mm【4.65"(W)x4.33"(L)x2.05"(H)】 Accessories: 1×Main Device, 1×Cuff, 1×Users manual Operating Conditions: Temperature: 5°C to 40°C; Humidity: 15% to 93% RH;... - Page 17 Electrical fast ±2 kV for power Not applicable Mains power quality should be transient/burst IEC supply lines ±1 kV that of a typical commercial or 61000-4-4 for input/output lines hospital environment. Surge IEC ± 1 kV line(s) to Not applicable Mains power quality should be 61000-4-5 line(s)
- Page 18 Radiated RF 10 V/m 10 V/m 80MHz to 800MHz： d=1.2√p IEC 61000-4-3 80 MHz to 2.7 GHz 80 MHz to 2.7 GHz 80% AM at 1kHz 80% AM at 1kHz 800MHzto 2.7GHz： d=2.3√p Where, P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the...
- Page 19 Guidance and manufacture’s declaration – electromagnetic emission The device is intended for use in the electromagnetic environment specified below. The customer of the user of the device should assure that it is used in such an environment. Electromagnetic environment – guidance Emission test Compliance The device use RF energy only for its internal function.
- Page 20 Guidance and manufacturer’s declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IMMUNITY Test Band Maximum Distance TEST...
- Page 21 The MANUFACTURER should consider reducing the minimum separation distance, based on RISK MANAGEMENT, and using higher IMMUNITY TEST LEVELS that are appropriate for the reduced minimum separation distance. Minimum separation distances for higher IMMUNITY TEST LEVELS shall be calculated using the following equation: Where P is the maximum power in W, d is the minimum separation distance in m, and E is the IMMUNITY TEST LEVEL in V/m.
- Page 22 Shenzhen Jamr Technology Co., Ltd. 2nd Floor, A-building, No.2 Guiyuan Road, Guihua community, Guanlan town, Longhua new district, 518100 Shenzhen, PEOPLE‟S REPUBLIC OF CHINA Shanghai International Holding Corp. GmbH (Europe) Eiffestrasse 80, 20537 Hamburg, Germany. shholding@hotmail.com Imported by: Hesdo bv. Aziëlaan 12, 5232 BA, „S-Hertogenbosch The Netherlands...
