Summary of Contents for Aram ASM 100

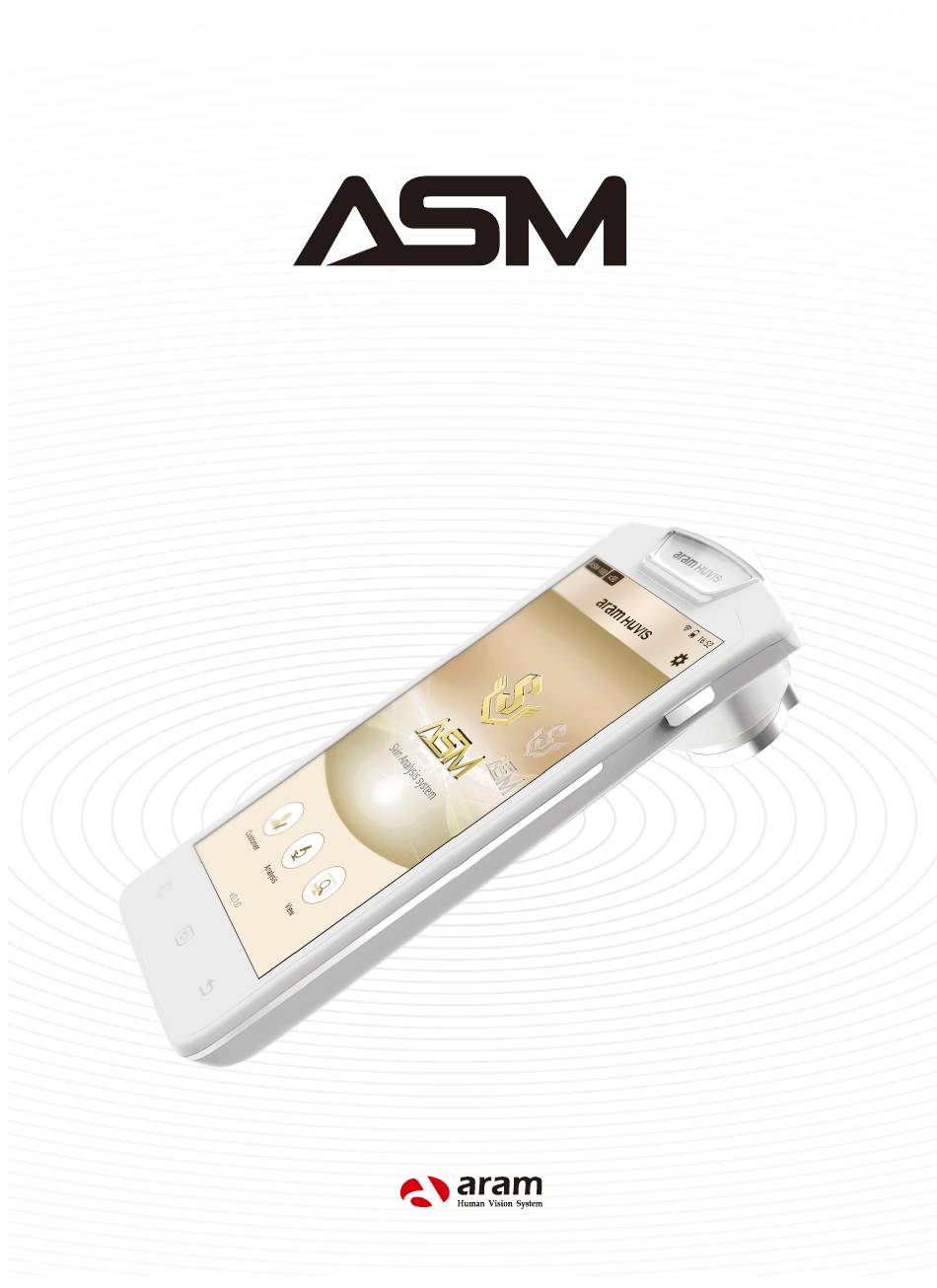

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Contents Components H/W Parts ⅰ . Both Sides ⅱ. Device Settings System Settings ⅰ . Date & Time ⅱ . Wi-Fi ⅲ.Sleep ⅳ .Language Application ⅰ . Settings ⅱ. Full Analysis Moisture Sebum Pore Melanin Acne Wrinkle Sensitivity Summary ⅰ . Email ⅱ.

  • Page 3: Components

    Components Components Skin lens (ASM-100) Main unit with skin lens Sebum paper Cradle Charger (100ea) USB cable Cleaning cloth Manual Air blower...

  • Page 4: H/W Parts

    H/W Parts Both Sides ASM lens Indicate LED Volume up & down button On/off button Lens change button X1 lens Flash USB slot...
  • Page 5 Components Settings How to turn on the power Press and hold “Power” button. Take your finger off from the button after "Indicate LED" turned on blue. How to turn off on the power Press and hold “Power” button. Touch "Power off".

  • Page 6: Ⅱ. Device Settings

    H/W Parts Device Settings Charger can be used for American type & European type. The default is European type. Then 220V European type is disassembled Push the plug up. and you can see the 110V-220V American type inside of the charger. Choose the one you want to use and connect USB cable in adaptor.

  • Page 7: System Settings

    System Settings Date & Time Touch button. Go to "Date & time" Touch button. Go to "Set date". Select the date and touch Check if the setting is “OK” button. correctly applied.
  • Page 8 System Settings Date & Time Touch “Select time zone” Select proper time zone. Check if the setting is correctly applied. Change into the current time Touch “Set time”. Check if the setting is and touch “OK” button. correctly applied.

  • Page 9: Ⅱ . Wi-Fi

    System Settings Wi - Fi Touch “Wi-Fi”. Turn on Wi-Fi using Choose proper Wi-Fi signal. On/Off button Wait until the device is Put Wi-Fi password. connected to Wi-Fi.

  • Page 10: Ⅲ.sleep

    System Settings Wi - Fi Once the device is connected to Wi-Fi, you could see the Wi-Fi mark on upper side of the screen. Wi-Fi Usage ☞ Email Wi-Fi connection is needed to send analysis data by email. *Reference : page 7 (Wi-Fi), page 20(Email). ☞...

  • Page 11: Ⅳ .Language

    System Settings Language Touch “Language & input”. Go to "Language". Select preferred language.

  • Page 12: Application

    Application Settings Touch button. Go to "General Settings". Available to change Language, Version and Email setting.

  • Page 13: Crm

    Application Touch "Customer". Touch to register Input the information. new customer. After putting all information, User's profile is created on the list. Touch button to start touch Then touch user's profile to start analyzing. analyzing.

  • Page 14: Moisture

    Application Moisture After checking the message "Touch to Touch the button. skin please", push the sensor completely Please wait until vibration and sound. * Never put the sensor on the skin before to marked area of the face. the message "Touch to skin please". * All surface of the sensor should be pushed completely.

  • Page 15: Sebum

    Application Sebum U-zone T-zone Take a picture of pink area of Put the sebum paper on Put the sebum paper on T-zone the sebum paper. U-zone of the cheek, then of forehead, then press it for press it for 2~3 seconds. 2~3 seconds.

  • Page 16: Pore

    Application Pore zoom out zoom in Touch to activate camera Touch screen to bring Touch button to analyze. and put the camera onto the a camera into focus and then marked area of the face. touch to take a picture. Touch button to compare Touch...

  • Page 17: Melanin

    Application Melanin zoom out zoom in Touch to activate camera Touch screen to bring Touch button to analyze. and put the camera onto the a camera into focus and then marked area of the face. touch to take a picture. Touch button to compare Result will appear.

  • Page 18: Acne

    Application Acne zoom out zoom in Touch to activate camera Touch screen to bring Touch button to analyze. and put the camera onto the a camera into focus and then marked area of the face. touch to take a picture. Touch button to compare Result will appear.

  • Page 19: Wrinkle

    Application Wrinkle zoom out zoom in Touch to activate camera Touch screen to bring Touch button to analyze. and put the camera onto the a camera into focus and then marked area of the face. touch to take a picture. * For wrinkle photo, take picture of outer eye area in widthways to check crow's feet.

  • Page 20: Sensitivity

    Application Sensitivity zoom out zoom in Touch to activate camera Touch screen to bring Touch button to analyze. and put the camera onto the a camera into focus and then marked area of the face. touch to take a picture. Touch button to compare Result will appear.

  • Page 21: Summary

    Application Summary Touch button or "Show All Result" to see overall result. Available to check the result. The worst results will be marked in red.

  • Page 22: Ⅰ . Email

    Application Email Before sending Email, Touch Go to "Send Email". the device shall be connected to Wi-Fi. * Reference : page 7. After selecting sender's mail Select the mail account to Select “Gmail” address, put receiver's mail address. register on the list. Then touch "Send"...

  • Page 23: Ⅱ. Mirroring

    Application Mirroring Touch button. Go to "General Settings". Set the mirroring option "On". Capture QR code using QR code reader app. Automatically moved to App store.
  • Page 24 Application Mirroring Install “Aram VIEWER”. Then, go to “Wi-Fi Setting”. In your mobile device go to Wi-Fi Mirroring will be started. setting. Then find SSID and connect it.

  • Page 25: Ⅲ. View Mode

    Application View Mode Touch “View”. In view mode, it is able to take pictures with capture button. The user can select analysis The user can mark the defect or parameter to take pictures concern according to the image in proper mode. with note function.

  • Page 26: Warranty

    Within warranty : Sending delivery(Buyer), repair cost and returning delivery(Aram) - If the product is broken by user's fault, repair cost could be charged. - After warranty : Sending delivery and repair cost(Buyer), returning delivery(Aram) How to send : - Please mail to support@aramhuvis.com...
  • Page 27 Memo...
  • Page 28 HEAD OFFICE #401~402 Bundang Seoul National University Hospital Health Care Innovation Park, 172, Dolma-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13605 Rep. Korea PRODUCTION DIVISION & FACTORY #909 Byucksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230 Rep. Korea Tel: 070-4687-1712 / Fax: 031-732-6330 / Email: info@aramhuvis.com http://www.aramhuvis.com...
