Summary of Contents for AREBOS AR-HE-BRT52ET

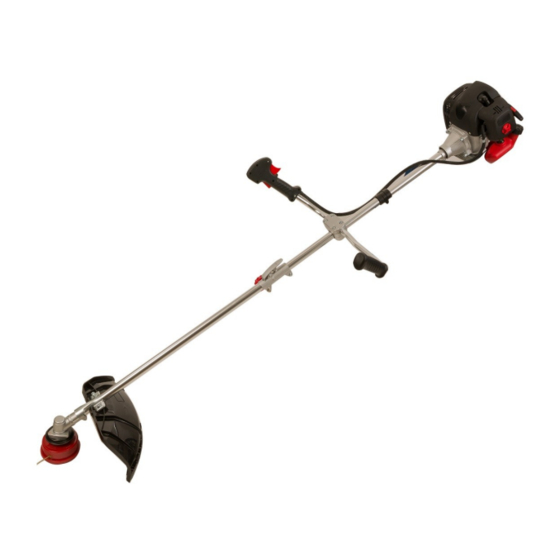

- Page 1 User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO Brush cutter multifunction tool 2in1 (Eco) AR-HE-BRT52ET Please follow all security measures in this user’s manual to ensure a secure use. Thank you for trusting AREBOS.
-
Page 2: Table Of Contents
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO List of contents 1. Safety instructions ..........3 1.1 Explanation of the symbols ..........3 1.2 Safety rules ..............5 2. Intended Use ............6 3. Commissioning ............6 3.1 Before use .............. -
Page 3: Safety Instructions
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO Please read and safe these instructions. Read through this user’s manual carefully before using this product. Protect yourself and others by observing all safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. - Page 4 User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO Warning! Hot surface Warning! Flammable material! Warning! Wear protective gloves! Warning! Wear protective gloves! Warning! Wear protective clothing! Pay attention to flying stones! Pay attention to pedestrians!
-
Page 5: Safety Rules
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO Please note the sound power level. 1.2 Safety rules • Read the instruction manual carefully before using the unit. This applies in particular to the safety instructions. Otherwise you may injure yourself or damage the device. •... -
Page 6: Intended Use
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO • Perform continuous checks to ensure safe and efficient operation of the machine. For a complete check, please contact a specialist workshop. • Keep the machine away from fire or sparks. •... - Page 7 User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO • Keep the fuel tank dust-free and avoid water getting into the tank. • Sometimes overloading will cause misfiring which is normal. If the misfire is audible under normal load, we recommend replacing the fuel.
-
Page 8: Assembly
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO away from the fuel station. Draining gasoline: • Make sure that no fuel or chain oil gets into the ground. Use a suitable surface. • Empty the tank only outdoors or in well-ventilated rooms. •... - Page 9 User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO • Place the cutting disc (golden) on the rotor blade as shown. Place the bell on the rotor blade. • Attention: Left-hand thread! Turn the nut to the left to tighten. Tighten the left-hand thread as shown using the supplied Allen key.
- Page 10 User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO • Then screw the bobbin attachment to the left onto the thread, hexagon wrench can then be removed. In the next step, pull the fixing bolt to make the joint flexible. •...
- Page 11 User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO • Insert the spring in the middle again and place the nut washer on it. Adjust the threads as desired and allow them to protrude laterally through the openings provided. Assembly of the handle: •...
-
Page 12: Use Of Included Attachments & Cutting Tools
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO 5. Use of included attachments & cutting tools • When the machine is switched off, first familiarize yourself with operation and guidance when working with a petrol engine scythe for the first time. •... -
Page 13: Replace And Clean Spark Plug
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO due to excessive friction. • Please note that the following information refers to normal use. Under certain circumstances (prolonged daily work, heavy dust exposure, etc.) the specified intervals may be shortened accordingly. -
Page 14: Cleaning/Replacing The Fuel Filter
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO risk of eye injury! • Let the air filter dry well and reinsert it. • Damaged air filters must be replaced immediately. 6.4 Cleaning/replacing the fuel filter • Check the fuel filter if necessary. -
Page 15: Technical Data
- Cut grass gradually. overload). Cutting thread is not guided - Thread bobbin empty. - Replace thread bobbin. 8. Technical data Model AR-HE-BRT52ET Tank capacity 1200 ml Weight 16 lbs (7,2 kg) Fuel Petrol/Oil mixture 40:1 with 2-stroke oil Drive shaft... -
Page 16: Disposal Instruction
User’s manual – A S Brush cutter multifunction tool 2in1 (Eco) REBO 9. Disposal instruction 9.1 Disposal of the packaging • Please make reference to the guidelines and standards for appropriate disposal of the packaging valid in your region. In part, the package may consist of plastic bags - watch this respect, with special care to ensure that this is not out of the reach of children. - Page 17 Hereby declare that the product named below, seen its design and construction as well as according to our sales, has been complied with the relevant and basic health and safety EU-requirements. Name of the product: AREBOS Brush cutter multifunction tool 2in1 (Eco) Art. Nr.: AR-HE-BRT52ET Model Nr.: 4260627421060...
