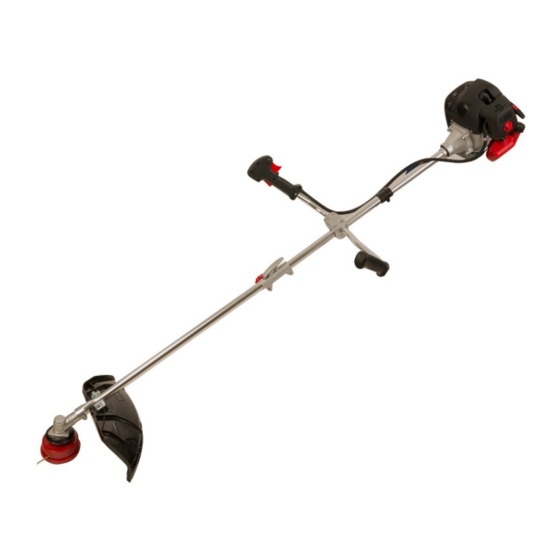

- Page 1 Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO Petrol Brush Cutter String Trimmer 52cc AR-HE-BRT52PT Please follow all security measures in this user’s manual to ensure a secure use. Thank you for trusting AREBOS.
-
Page 2: Table Of Contents
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO Table of Contents 1. Safety instructions ........3 1.1 Explanation of the symbols ..........3 1.2 Safety rules ..............5 2. Intended Use ..........6 3. Commissioning ......... 6 3.1 Before use .............. -
Page 3: Safety Instructions
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO Thank you for purchasing our product. Please read the operating instructions carefully before using the product for the first time. If you give the product to a third party, this manual must be handed over with it. - Page 4 Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO Warning! Wear protective gloves! Warning! Wear protective gloves! Warning! Wear protective clothing! Warning! Flammable material! Pay attention to flying stones! Pay attention to pedestrians! Please note the sound power level.
-
Page 5: Safety Rules
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO 1.2 Safety rules • Read the instruction manual carefully before using the unit. This applies in particular to the safety instructions. Otherwise you may injure yourself or damage the device. •... -
Page 6: Intended Use
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO 2. Intended Use • Motor brush (use the cutting knife): Cutting of light wood, strong weeds and undergrowth. • Lawn trimmer (use the thread bobbin with cutting thread): Cutting lawns, grass areas and light weeds. - Page 7 Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO • Sometimes overloading will cause misfiring which is normal. If the misfire is audible under normal load, we recommend replacing the fuel. • Do not overfill the tank (see figure max. level). •...
-
Page 8: Assembly
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO Draining petrol: • Make sure that no fuel or chain oil gets into the ground. Use a suitable surface. • Empty the tank only outdoors or in well-ventilated rooms. •... - Page 9 Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO • Place the cut-off wheel with the serrations pointing downwards into the attachment and hold it in place with a hexagon key by simultaneously passing it through the hole on the attachment wheel (silver) and through the hole on the cut-off wheel (gold).
- Page 10 Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO • Fix the protective shield facing downwards with screws and a hexagon key. Attach serrated cut-off wheel (golden) to the rod head and fix with hexagon key. This can then be removed. •...
- Page 11 Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO • Changing the thread bobbin: Open the bobbin case by pressing in at the marked point and unscrewing the cover. Then remove the cover of the bobbin case. •...
- Page 12 Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO Assembly of the handle: • First attach the connecting piece between the motor brush and the handle. Be sure to screw them tightly, as well as the elements for manual control. The riser has a quick release mechanism for safety reasons.
-
Page 13: Use Of Included Attachments & Cutting Tools
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO 5. Use of included attachments & cutting tools • When the machine is switched off, first familiarize yourself with operation and guidance when working with a petrol engine scythe for the first time. •... -
Page 14: Replace And Clean Spark Plug
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO • For technical reasons, wet grass and weeds wrap themselves around the drive axle under the cutting guard during the course of work. Remove this as otherwise the motor will overheat due to excessive friction. -
Page 15: Cleaning The Air Filter
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO 6.3 Cleaning the air filter • Dirty air filters reduce engine performance due to insufficient air supply to the carburettor. Dust and pollen block the pores of the foam filter. Regular checks are therefore essential. •... -
Page 16: Troubleshooting
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO 7. Troubleshooting - Air filter dirty. - Clean/replace air filter. - Fuel filter blocked. - Clean or replace fuel filter. - Lack of fuel supply. - Fill it up. - Fuel line fault. -
Page 17: Technical Data
Original User Manual – A S Petrol Brush Cutter String Trimmer 52cc REBO 8. Technical Data Model AR-HE-BRT52PT Starting device Pull-starter Tank capacity 1200 ml Weight 16.5 lbs (7.5 kg) Fuel Petrol / oil mixture 40:1 with 2-stroke oil Drive shaft... -
Page 18: Environmentally Friendly Disposal
You can obtain the addresses from your city or local government. You can find out about other return options created by us on our website www.arebos.de. The separate collection of Waste electrical or electronic equipment is intended... -
Page 19: Eu Declaration Of Conformity
EU directives. Name of the product: AREBOS Petrol Brush Cutter String Trimmer 52cc Model Nr.: AR-HE-BRT52PT Art. Nr.: 4260627421077 Should the appliance be modified without our consent, this declaration of conformity will lose its validity.
