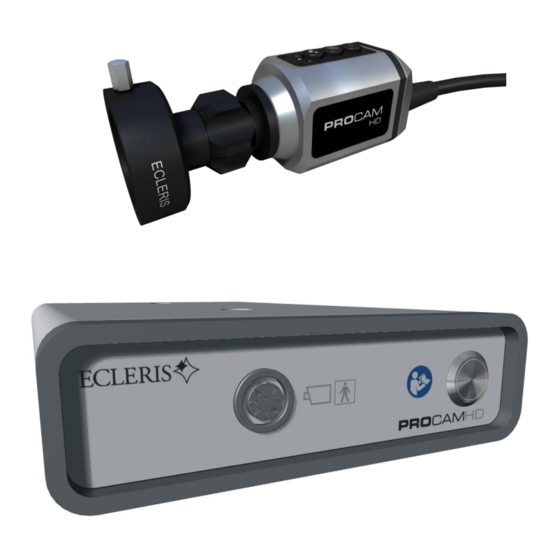

Ecleris PROCAM HD Manual
Ccd camera and console
Hide thumbs
Also See for PROCAM HD:
- User manual (16 pages) ,
- User manual (30 pages) ,
- User manual (44 pages)
Subscribe to Our Youtube Channel
Related Manuals for Ecleris PROCAM HD
Summary of Contents for Ecleris PROCAM HD

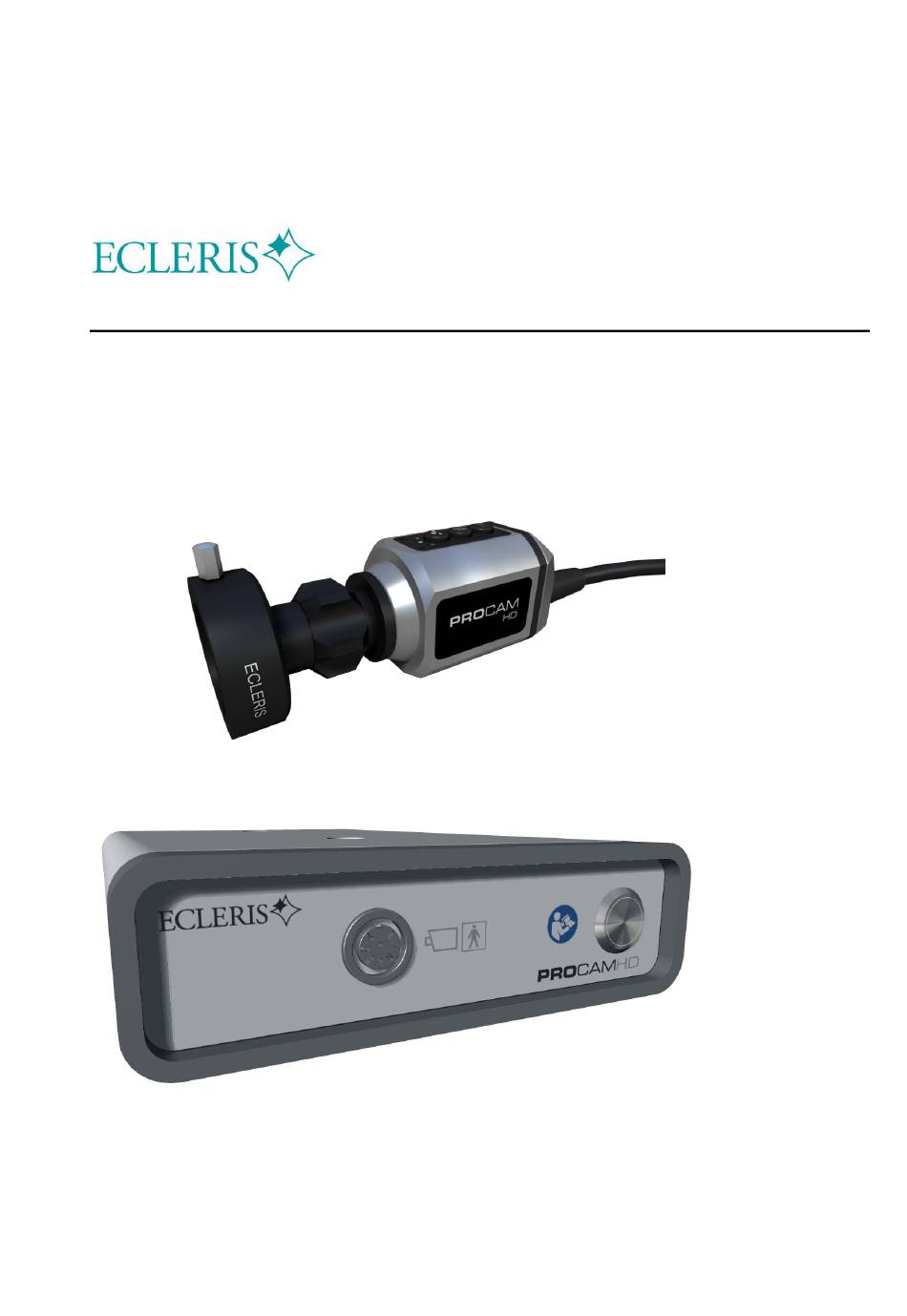

- Page 1 PROCAM CCDCAMERA AND CONSOLE VI340 HC118 INMANUUIN121 M. USO VI340-HC118G2 ING USA V.2016.10.06.DOCX...
- Page 2 5 Beaumont Gate, Shenley Hill, Radlett, Herts WD7 7AR, England Tel: +423-663-169205 Tel/Fax: +44 1923 859 810 e-mail: medes@arazygroup.com Ecleris PROCAM cameras are CE approved, complying with European Council Directive 93/42/CEE related to medical equipment. The MDD equipment classification is I.
-
Page 3: Table Of Contents
3.2 I ........................................3 NTENDED USER 3.3 C ........................................4 OMPONENTS 3.3.1 PROCAM HD Console ....................................4 3.3.1.1 Front Panel ..................................4 3.3.1.2 Rear Panel ..................................4 3.3.2. PROCAM HD Camera ....................................5 4. INSTALLATION ............................................5 4.1 C ECLERIS E ................................ -
Page 4: Symbols
1.SYMBOLS CE Mark Read the related documentation Manufacturer Information (Name, Address) Serial number Type BF Warning Do not discard with the household waste Alternate current Protective Earth (Ground) Protect from water. Equipotential bonding This side up Date Manufacture (MM/AAAA) Enviroment transport conditions Product code Pressure Limits... -
Page 5: Warnings
2. WARNINGS It is important to read this manual carefully before using the device ECLERIS will not be held responsible for damage that can occur to the equipment due to not following the instructions or not observing the following criteria: ... -
Page 6: Description
PROCAM HD power supply can be fixed to Everlux light source manufactured by Ecleris. It can be placed hanging together with the light source down the colposcope or microscope forearm from ECLERIS. Also it can be attached under an Everlux light source on a desk, cart or any flat surface. It can be used also as a standalone unit as it includes rubber slip supports 3.1 Intended use... -
Page 7: Components
3.3 Components 3.3.1 PROCAM HD Console 3.3.1.1 Front Panel 1. ON/OFF button 2. PROCAM HD Connector 3.3.1.2 Rear Panel Power connector Equal-potential Ground connection. Video output in high definition (HDMI output connectors) Fuse holders. INMANUUIN121 M. USO VI340-HC118G2 ING USA V.2016.10.06.DOCX... -
Page 8: Procam Hd Camera
Connect the connector of the video camera ECLERIS to the connector in the front panel. Plug the video output connector on the rear panel of the PROCAM HD console to the video input of the video monitor. Check if the image device (videomonitor / video printer / LCD TV etc…) supports the camera resolutions Connect the optical device to the camera head with the C-Mount screw (Endoscope, Microscope, Colposcope, etc) INMANUUIN121 M. -
Page 9: Coupling To Ecleris Everlux Light Source
PROCAM HD console as it is shown in the picture Doing so, two heads of screws will emerge from the top of the PROCAM HD console. These head of screws shall be anchored to the bottom side of the ECLERIS Everlux light source. - Page 10 Once the head of the anchor screws are in place into the holes of the ECLERIS Everlux light source base, you need to slightly push back the PROCAM HD console in order to attach it completely to the ECLERIS Everlux light source Finally, to ensure a strong and stable coupling, tighten the screws of the PROCAM HD console from the base of it.
- Page 11 Once the coupling is finished, the combined set ECLERIS Everlux light source and PROCAM HD console is ready to use as itself or it can be attached to an ECLERIS microscope forearm or to an ECLERIS colposcope forearm through the ECLERIS Everlux light source (after removing the Everlux handle on top of the unit).
-
Page 12: Revision And Operation
Only medical, paramedical or health personnel should work this equipment Press the power button in front of the PROCAM HD console. The LEDs of the PROCAM HD camera will blink for few seconds and then they INMANUUIN121 M. USO VI340-HC118G2 ING USA V.2016.10.06.DOCX... -
Page 13: White Balance
It indicates that the PROCAM HD camera head is being powered. Verify that the video monitor is ON and in Video mode through its HDMI/DVI input. Adjust the picture on the monitor according to your preferences of Brightness, Contrast, Saturation, Color, HUE, Gamma etc. - Page 14 The PROCAM HD camera has 2 levels of Anti-Moiré digital filters to optimize the images obtained, minimizing the grid affect originated in the visualization of images taken from flexible endoscopes considerably. Anti-Moiré function indicator: Turn off Anti-Moiré Deactivated Blinking Anti-Moiré level 1 Turn on Anti-Moiré...
-
Page 15: Maintenance
6. MAINTENANCE The following procedures are recommended to conserve PROCAM HD, in optimum working conditions: Before the maintenance of the PROCAM HD, disconnect the power cable from the electric power supply • Periodic cleaning of all external components. • Check connections. - Page 16 Only use fuses as shown at the rear side of the PROCAM HD console and certified by IEC60127 Screw again the knobs. Connect the power cord. INMANUUIN121 M. USO VI340-HC118G2 ING USA V.2016.10.06.DOCX...
-
Page 17: Technical Specifications
7. TECHNICAL SPECIFICATIONS POWER SUPPLY 100 - 240 V Nº OF PHASES 1 (single phase) FRECUENCY 50 - 60 Hz CLASS TYPE USE MODE Continuous GRADE OF WATER PROTECTION IPX0 POWER CONSUMPTION 25VA FUSES 2 x T2AL250V VIDEO OUTPUT 2 x HDMI (DVI 1.0) RESOLUTION 1920 (H) x 1080 (V) @ 60 fps. -
Page 18: Troubleshooting
The following table indicates the most common problems and their solutions. Please consult this table if you have any inconvenience. As PROCAM HD console is always used in combination with a video monitor and a videocamera, faults will be analyzed considering the whole system. -
Page 19: Technical Service
ECLERIS shall not be responsible for damage caused by/to the PROCAM HD and its power supplies for inadequate use, neglect, incorrect cleaning or storage. Any repairs carried out by anyone other than ECLERIS authorized personal will annul this warranty. This warranty is only valid for the original buyer.
