  • Page 1 SC-R50 Screen display receiver...

  • Page 2: Product Introduction

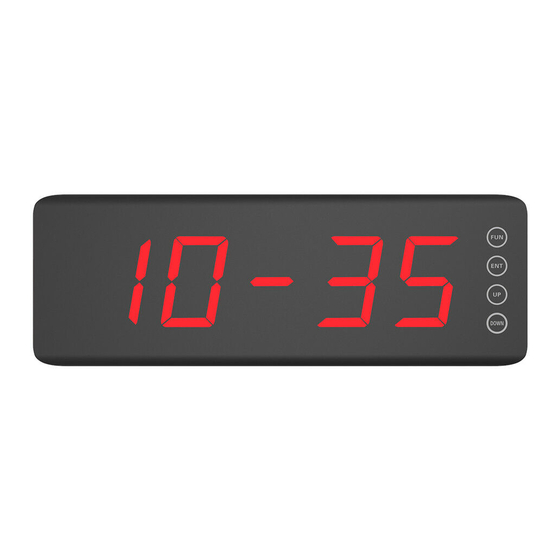

    Product introduction This product is a new generation of screen receiver , compatible with our whole line call buttons , receive call information independently. The receiver has touch keys, containing 3-bit, 4-bit number optional, and supporting serial port data download function, kinds of key mode selection. Product Exterior Touched key Display screen...
  • Page 3 Prompt mode Installation mode Table/Wall-hung/Hanging 7 kinds of music, 3 kinds of scene voice reporting Shell material Call button capability Special function: with power amplifier socket, with data download function.
  • Page 4 Operation instruction 1. Deleting number and initialization 1) Standby mode (time display mode) ,keep pressing [FUN] till F01 appears. 2) Press [UP] /[DOWN] repeatedly till F06 appears. 3) Keep pressing [FUN] for 3 seconds, the minimum registered number appears on screen. 4) Press [FUN] to move the cursor position, press [UP] /[DOWN] to change the blinked number and choose the number to be deleted.
  • Page 5 1) Standby mode, press [FUN] key for 3 seconds until [F01] appears on screens. 2) Press key [UP] /[DOWN] repeatedly till [F02] appears. 3) Keep pressing key [FUN] till a number [00] appears. 4) Press [UP] /[DOWN] to choose the prompt mode, [00～02] means voice report, [03～09] means ring bells.

  • Page 6: Time Setting

    5) After setting the prompt mode, keep pressing [FUN] until [F02] shows on screen. 6) Keep pressing [ENT] back to standby mode, prompt mode setting finished. 4. Display time setting 1) Standby mode, keep pressing key [FUN] till [F01] appears. 2) Press key [UP]/[DOWN] repeatedly till [F03] appears.

  • Page 7: Display Mode

    3) Keep pressing key [FUN] till a number [03/04]appears, use [UP]/[DOWN]to change between [03]and[04]. 4) Keep pressing [FUN] for 3 seconds, the screen shows [F07] 5) Keep pressing [ENT] back to standby mode, digit number display setting finished. 8. Display mode 1) Standby mode, keep pressing key [FUN] till [F01] appears.
  • Page 8 common call button digits display [000] display mode [000.0] display mode 3 digit XXX.XX 4 digit XXXX XXXX.X 9.Key register mode setting 1) Standby mode, keep pressing key [FUN] till [F01] appears. 2) Press key [UP]/[DOWN] repeatedly till [F09] appears. 3) Keep pressing key [FUN] till a number [00/ 01]appears, use [UP]/[DOWN]to change between [00]and[01].

  • Page 9: Factory Setting

    12.Factory setting 1) Standby mode, keep pressing key [FUN] till [F01] appears. 2) Press key [UP]/[DOWN] repeatedly till [F12] appears. 3) Keep pressing key [FUN] till [OFF/ON]appears, use [UP]/[DOWN]to change between [OFF] (not reset the factory data)and[on](factory data reset). Remarks: factory setting means restoring the function to its factory settings. 4) Keep pressing [FUN] for 3 seconds, the screen shows [F12] 5) Keep pressing [ENT] back to standby mode, factory setting finished.

  • Page 10: Data Download

    13.Data download ( used to copy registered numbers by serial port between two receivers) 1) Standby mode, keep pressing key [FUN] till [F01] appears. 2) Press key [UP]/[DOWN] repeatedly till [F13] appears. 3) Keep pressing key [FUN] till [tr] appears. 4) Keep pressing [ENT] for 3 seconds, the screen shows [tr-on]with flash, data download begins.

  • Page 12: Installation Notes

    1) Electrify the adapter first (no wet hands) and connect with the receiver after power light on. Then, turn on the receiver. 2) Any abnormal founded, please contact with SINGCALL customer service engineers. Do not disassemble the products by yourself to avoid unnecessary troubles.
