Optimec Document No D20146-00
User Manual & Operating Instructions
Fully Electronic
Compact Dimensions
Wide Operational Range
User Selectable from 15-40ºC
Optimec TC20i
Soft contact lens metrology
Full Saline Filtration
Compatible with JCF, JCM
SAG, JCFD and is830
总代理：上海朗善光学仪器有限公司 www.lenser17.com
R
c
Optimec Limited 2016
Advertisement
Table of Contents
Related Manuals for Optimec TC20i
Summary of Contents for Optimec TC20i
- Page 1 Optimec TC20i Soft contact lens metrology Optimec Limited 2016 Optimec Document No D20146-00 User Manual & Operating Instructions Fully Electronic Full Saline Filtration Compact Dimensions Compatible with JCF, JCM Wide Operational Range SAG, JCFD and is830 User Selectable from 15-40ºC...
- Page 2 User Manual & Operating Instructions CONTENTS Contents Front Cover - Photograph of TC20i Instrument Page 1 - Contents Page 2 - Instrument Overview and Control Panel Page 3 - Instrument Set-Up Details Page 4 - Instrument Operating Instructions Page 5 -...
-
Page 3: Control Panel

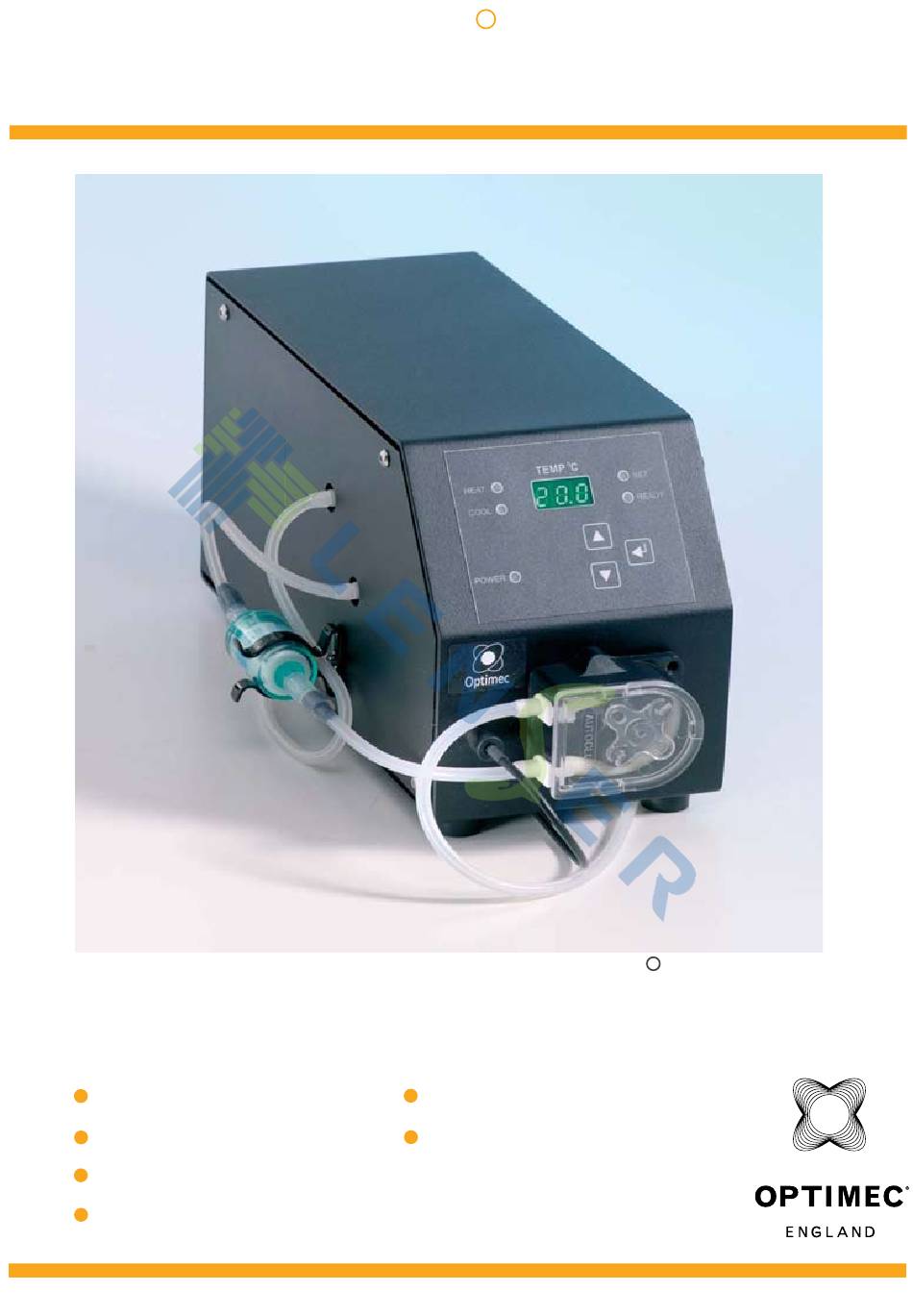

TC20i Temperature Control Instrument Overview Designed to work with Optimec JCF, JCM, JCFD, SAG and is830 instruments, the TC20i provides a neat and efficient solution, to enable the measuring and inspection of soft contact lenses at a constant temperature. With full electronic control the TC20i can maintain cell measuring temperature within the range 15 - 40 Degrees Celsius (+/- 0.5deg). -
Page 4: Set-Up Detail
1. Position the TC20i to the right of the Optimec JCF, JCM, SAG, JCFD or is830 instrument. 2. On the left hand side of the TC20i is a cooling fan and it is EXTREMELY IMPORTANT that it is not obstructed, and that a minimum 10cm space is maintained beteween it and any other object. -
Page 5: Temperature Adjustment
TC20i Operating Instructions Temperature Adjustment When the TC20i leaves Optimec, it will be set to a working temperature of 20 Degrees Celsius. Should this be the temperature you wish to to work at, you will not need to make any adjustments to the instrument. -
Page 6: Maintenance
PERISTALTIC PUMP TUBE: The peristaltic pump tube will wear over time and the pump efficiency will fall as a result. Any reduction in the quantity of saline flowing through the TC20i can have a dramatic effect on the capabilities of the unit and may lead to the failure of the internal heat exchanger. - Page 7 TC20i Users Information Peristaltic Tube Replacement First remove the external tubes from the peristaltic pump. Then use a flat bladed screwdriver to prise the pump rotor cover from the rotor casing. Slide the peristaltic tube from under the the pumphead rotor by hand.
- Page 8 Please ensure when replacing the tubing that the tubes are pushed fully over the connectors and that there are no kinks present. On start up check that there are no leaks. If leaks are found turn off the TC20i immediately and recheck all tube connections.
- Page 9 15 - 40 Important IMPORTANT The TC20i is an electrical driven instrument and as such, if not used correctly, can be a source of electric shock and therefore could be hazardous to life if the following precautions are not observed.
-
Page 10: Guarantee Conditions
SETTING UP Guarantee Conditions The conditions and performance of Optimec instruments are guaranteed for a period of one year. The guarantee period commences from the date of sale. We guarantee the elimination of all faults arising from materials or manufacture. The guarantee will be fulfilled either by repair or replacement of faulty parts at our option. - Page 11 EC Declaration of Conformity 总代理：上海朗善光学仪器有限公司 www.lenser17.com Page 10...
- Page 12 Telephone +44 (0)1684 892859 Fax +44 (0)1684 893037 E-mail: enquiries@optimec.com www.optimec.com Optimec is accredited to BS EN ISO 9001:2008 For the provision of lens measuring and lens inspection instruments Certificate No. GB2002543 OPTIMEC is a Registered Trade Mark Internationally No. 2646632, 1159230, 102007762 总代理：上海朗善光学仪器有限公司 www.lenser17.com...
