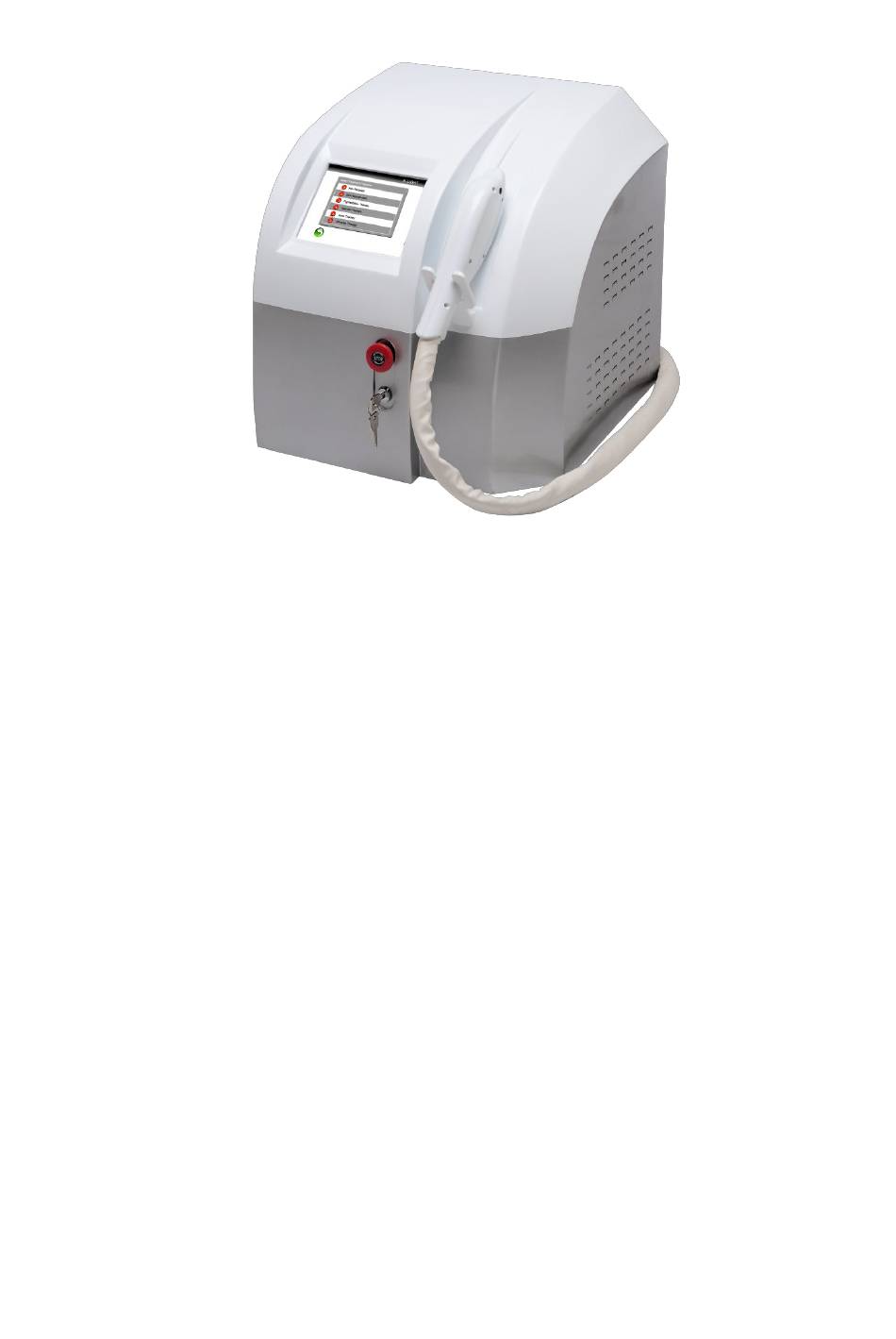

- Page 1 Model: SR-200 Operation Guide...
-
Page 2: Table Of Contents
Table of Contents 一、Introduction………………………………………………………………1 二、Treatment principle………………………………………………………1 三、Scope…………………………………………………………………………1 四、Technical Parameters………………………………………………………2 五 、Random accessories…………………………………………………………2 六、Installation and commissioning………………………………………….3 七、Operating Instructions…………………………………………………….4 八、Operating common sense…………………………………………………….7 九、Precautions…………………………………………………………………….8 十、Maintenance and service…………………………………………………….8... -
Page 3: 一、Introduction
一、Introduction SR-200 is an enhanced version of E-light upgrade, increasing the current latest technology, namely SHR technology, slide hair removal technology, the E-ray equipment to a higher level of the hierarchy. Its control system uses an embedded Linux technology, core board with a more powerful computing faster, more stable operation of Micro2440 core board, so upgrading equipment, the operation reached a truly intelligent. -
Page 4: 五、Random Accessories
Spectral range 430-1200nm 1-50 J/cm² E light amount of E light pulse 0.1-30ms E light pulse interval 1-99ms E light pulse number E light emitting interval 1-5s RF energy 1-25 J/cm² SHR energy 1-50 J/cm² SHR pulse 0.1-7ms SHR pulse 1-6HZ Power 1000W... -
Page 5: 七、Operating Instructions
Inspection consistent instrument accessories 1, the hand to hand with a connection on the interface card snaps into 二.Hand with place tight installation 2, the hand tool into the rack 1, the water holes on the rear panel hosts, unscrew the overflow hole sealing cap 三.Instruments 2, the water filling funnel screwed into the hole, to the instrument water (pure water injection... - Page 6 八、1, turn on the power switch. 2, clockwise from the emergency stop switch. 3, the key switch clockwise 90 degrees, open the instrument. 4, enter the interface, interface operation. After the system automatically detects finished, click on the standby interface, the following interface.
- Page 7 （C. 选取相应的治疗模式，进入操作界） Treatment records: Displays the current treatment records, you can record different treatment parameters in order to facilitate the treatment of different customers, click to change the treatment records, there are three kinds of choices. Treatment mode: Display the current selected operation item. Pulsenumber: referstoeachtimethetriggerdischarge,thenumberofintensepul sdsystems issued, the number of pulses increases the depth of the light effect...
- Page 8 Return key: to return to the treatment mode selection interface. IPL energy regulation: regulation of the energy output of the size of the hand with IPL, the adjustment process in the IPL display window shows the current energy output energy value. RF energy regulation: adjustable hand with RF energy output size, adjust the display window during RF energy output will show the current energy value.
-
Page 9: 八、Operating Common Sense
status. Energy regulation: regulation of the energy output of the hand with the size of the display window shows the energy output of the energy value of the former. Cooling adjustment: hand tools used to adjust therapy treatment temperature, divided into 10 stalls adjustable, blue snowflake more refrigeration stronger, blue snowflakes disappear cooling off. -
Page 10: 九、Precautions
⑤, redness customers, you need to redness at the site between energy 15-18J / cm² operating again, five minutes later, 25 J / cm² so and then operate again, repairable horny fade redness. After the operation slightly bloodshot than previously become clear, will slowly fade after ten days. -
Page 11: 十、Maintenance And Service
chassis danger of electric shock! 3、Operational safety ①, must be filled before starting the water, otherwise it will burn treatment of hand tools! And the use of pure water or medical distilled water. ②, check the instrument immediately after power circuit and waterways, and in the whole operation should always observe the safety circuit and waterways.
