Assembly Instructions - Benchmark HCM400 Manual

4 CU FT ELECTRIC CEMENT MIXER

ASSEMBLY INSTRUCTIONS

It is recommended that two people assist in the assembly.

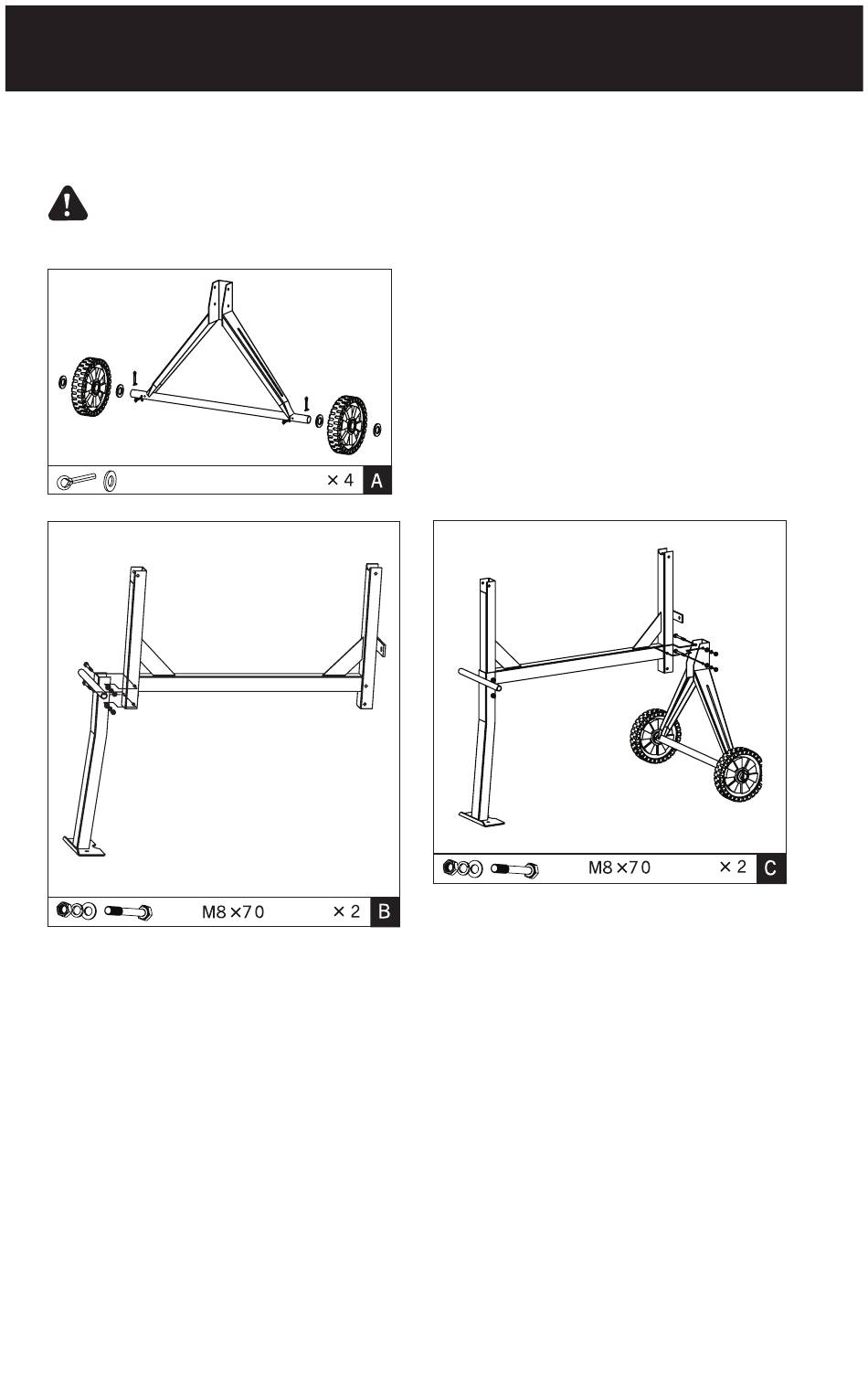

THE STAND
2. With the frame lying on its side,
attach the support leg as shown.
Insert two M8X70 hex bolts through
the holes from one side, then flat
washers, lock washers and nuts
from the other side.
1. With a split pin inserted into the
inner holes in each stub axle, place
a flat washer, then a wheel followed
by another flat washer. Insert another
split pin into the axle holes outside
each flat washer. Bend each side
of the pins outward so they do not
fall out.
3. Turn the frame over and attach the
axle bracket with wheels in the
same manner.
4. Make sure all bolts and nuts
are tightened.
2620-176
