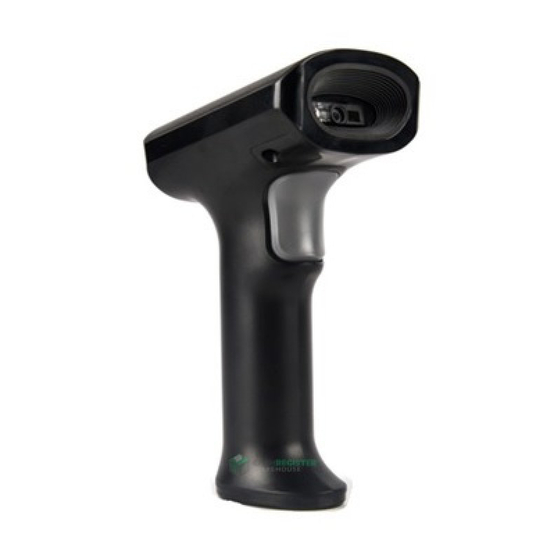

P130BT Barcode Scanner
User Manual
Rev.1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P130BT and is the answer not in the manual?

Questions and answers

Related Manuals for Element P130BT

Summary of Contents for Element P130BT

  • Page 1 P130BT Barcode Scanner User Manual Rev.1.3...
  • Page 2 The products described in this manual may include the copyrighted software of Element or a third party. Unless authorized by the relevant rights holder, no unit or individual can copy, distribute, modify, extract, decompile, disassemble, decrypt, reverse engineer, rent, convert, Sub-license and other infringement of software copyright.
  • Page 3 Change Record Rev. Date Description 2021.06.16 1. Add Vietnamese. 2. Add HID-P0S interface setting. 2021.08.27 3. Add Bluetooth base self sensing setting. 4. Add screen scanning mode. 5. Add Brazil special barcode encryption rule setting. 2021.12.9 The barcode length setting parameter is updated. 1.

  • Page 4: Table Of Contents

    CONTENT Chapter 1 Introduction ......................... 1 About Manual ..........................1 Barcode Read ..........................1 Use the Setting Barcode ......................... 2 Restore Factory Defaults ........................ 2 Chapter 2 Communication Interface ..................... 4 Serial Interface ..........................4 RS232 General Serial Interface ....................5 Baud Rate ..........................
  • Page 5 Command Programming ......................23 Scan Screen Mode（Optimize settings for screen barcodes only） ........... 23 Offline Storage Mode (Only Available for Bluetooth Mode) ............23 Chapter 4 Illumination and Aiming ..................... 25 Aiming ............................25 Illumination ..........................25 Power on and Read Successfully Prompt Tone ................27 Power on Prompt Sound Settings ..................
  • Page 6 UPC-E1 ..........................36 Enable/Disable 2/5 Add-On code ................36 UPC-A ........................... 37 Enable/Disable UPC-A ....................37 Transmit check character ..................... 38 Enable/Disable 2/5-bit Add-On code ................38 Transfer system character .................... 38 Code 39 ..........................39 Enable/Disable Code 39 ....................39 Check character verification and transmit ..............
  • Page 7 Interleaved 2 of 5 ......................... 47 Enable/Disable Interleaved 2 of 5 ................47 Check and transmit character ..................47 Convert I 2 of 5 to EAN-13 ................... 49 Matrix 2 of 5 ......................... 49 Enable/Disable Matrix 2 of 5 ..................49 Check and transmit character ..................
  • Page 8 PDF417 ..........................55 Enable/Disable PDF417 ....................55 Data Matrix .......................... 55 Enable/Disable Data Matrix ..................55 Anti-color........................55 Read Data Matrix ......................55 QR ............................57 Enable/Disable QR ....................... 57 Enable/Disable Micro QR code ..................57 Anti-color........................57 Aztec ............................. 57 Anti-color........................
  • Page 9 Touch key switch settings（Only for models with touch keys） ......... 66 Chapter 7 Scanner Settings ......................67 Barcode Command Format ....................67 Barcode Setting Format ....................... 67 General settings (default HID single scan mode) ................. 69 Host mode (CDC, HID, BT, COM,HID-POS） ................. 69 Trigger mode (Single scanning, scanning continuously, auto sensing) ........
  • Page 10 UDI Barcode rules ........................ 81 Other parameter settings ..................... 81 Set Bluetooth barcode data transmission mode ..............82 Set vibrator enable ....................... 82 Set up sensing hardware ...................... 82 Set HID leading/trailing control character form ..............82 Obtain barcode data in the specified range ................. 86 Appendix Ⅰ...

  • Page 11: Chapter 1 Introduction

    User Manual Chapter 1 Introduction The scanner uses the class leading chip with intelligent image reading technology, and it mainly uses for image-based 2D scanner. The scanner can read all kinds of 1D barcodes and standard 2D barcodes (various versions of PDF417, QR code, and Data matrix) can easily scan paper, plastic cards, LCD and other barcode printed media.

  • Page 12: Use The Setting Barcode

    User Manual (3) Align the aiming line to the center of the barcode, move the scanner and adjust the distance between it and the barcode to find the optimal scanning distance. (4) When hear the prompt sound, the infrared light goes out and the barcode reading successfully, then the scanner will decode the data to the host.
  • Page 13 User Manual Read the Firmware Version...

  • Page 14: Chapter 2 Communication Interface

    User Manual Chapter 2 Communication Interface The Handheld Barcode Scanner provides USB and interface (optional) to connect to the host. RS-232 Through communication interfaces, it can receive and read the data, control the scanner by sending the commands, and modify the parameter of scanner, etc. Serial Interface Serial interface is a common way to connect the scanner to the host (e.g.

  • Page 15: Rs232 General Serial Interface

    User Manual Stop Bits Hardware Flow Control None RS232 General Serial Interface None* Odd parity Even parity...

  • Page 16: Baud Rate

    User Manual Baud Rate The unit of Baud Rate is bps is bits/s (bps: bits per second), the optional configuration parameter is as below shown: 115200 38400 19200 9600 4800 2400 1200 USB Interface HID Virtual Keyboard When using USB interface, the scanner can be simulated as a HID-KBW device. In this mode, the scanner would be a virtual keyboard that output the data to the host.
  • Page 17 User Manual HID Virtual Keyboard Setting...

  • Page 18: Usb International Keyboard Setting

    User Manual USB International Keyboard Setting USA* Belgian Finnish (Swedish) French German Italian Swiss (German) British Danish Norwegian Spanish Dutch...
  • Page 19 User Manual Hebrew Portuguese Latin(America) Czech_DEC Brazilian Greek_DEC Canadian (French) Hungarian Polish Slovakian_DEC Swedish Turkish_Q Romanian...
  • Page 20 User Manual Russian Turkis_F Japanese(ASCII) Swiss(French) USA(International) Slovenian Croatian Bosnian Macedonian Albanian Serbian(Latin) Serbian(Cyrillic) Czech_QWERTZ Czech_QWERTY...
  • Page 21 User Manual Czech(Programmers) Estonian Latvian Latvian_QWERT Lithuania Lithuanian (IBM) Slovakian_QWERTZ Slovakian_QWERTY Hungarian_101_Key Spanish(Variation) Bulgarian(Cyrillic) Bulgarian(Latin) Canadian(French_Legacy) Canadian(Multilingual)
  • Page 22 User Manual Italian_142 Polish_214 Polish_Programmers Brazilian_MS Greek_Polytonic Greek_220 Greek_319 Greek_Latin Greek_220_Latin Greek_319_Latin Greek_MS Russia_MS Russian(Typewriter) Thai(Pattachote)
  • Page 23 User Manual Thai(Kedmanee) Irish Maltese Icelandic Ukrainian Uzbek(Cyrillic) Kazakh Kyrgyz(Cyrillic) Azeri(Latin) Azeri(Cyrillic) Belarusian Faeroese Gaelic Tatar...

  • Page 24: Character Output Setting (China, Japan, Korea And Thailand)

    User Manual Mongolian(Cyrillic) Vietnam Character Output Setting (China, Japan, Korea and Thailand) Chinese Simplified (Word) Chinese Simplified (Notepad) Chinese Traditional (Word) Chinese Traditional (Notepad) Japan (Word) Japan (Notepad) Korea (Word) Korea (Notepad) Thailand (Word) Thailand (Notepad)
  • Page 25 User Manual...

  • Page 26: Usb Virtual Serial Port

    User Manual USB Virtual Serial Port When the scanner uses a USB communication interface, but the host application uses serial communication to receive data, you can set the scanner to the USB virtual serial port. This function requires that be installed the appropriate driver on the host. USB Virtual Serial Port Setting HID-POS Interface As an auxiliary interface, HID POS can send commands to the scanner through the USB HID POS...

  • Page 27: Set Scanner Switch Time (Bluetooth Mode Only)

    User Manual Set scanner switch time (Bluetooth mode only) No Shutdown 5 min 10 min 15 min 30 min 60 min Bluetooth pop-up iPhone keyboard settings (Bluetooth mode only) Pop-up after Bluetooth connection: Bluetooth base self sensing setting (Bluetooth model only)

  • Page 28: Vid & Pid Table

    User Manual VID & PID Table USB uses 2 numbers to identify the device and find the correct device. The first number is VID (Supplier ID), designated by USB Implementers Forum. The second number is PID (Device ID), and each interface type assigns a PID number. Device Name Interface Type PID（Hex）...

  • Page 29: Chapter 3 Scanning Mode

    User Manual Chapter 3 Scanning Mode Manual Mode In manual mode, when the trigger control interface of the scanner changes into trigger electrical level, the scanner will start to shoot and read. In the limited time of “single reading time”, the scanner will continuously shoot and read until it is successful.
  • Page 30 User Manual...

  • Page 31: Continuous Mode

    User Manual Moving Performance： PS：Ultra fast mode in the automatic sensing mode, the sensing distance of scanning paper barcode will decrease significantly. Normal * Fast Ultra-fast  Single Reading Time In sensing reading mode, the parameter indicates the maximum time of allowing reading engine to continuously collect and identify barcode before reading successfully.
  • Page 32 User Manual  Single Reading Time Limit In continuous mode, it indicates the maximum time of scanner continuously collect and identify barcode before reading successfully. If it times out, it will enter the interval of not collecting and reading according to the setting. The code reading time is 100ms in units, which can be set to 0.1~9.9s. When it be set to 0 that indicates no waiting.

  • Page 33: Command Programming

    User Manual Command Programming In this mode, scanner needs the host to trigger and decode the barcode. The scanner can set the length of the reading time. The reading code time can be set to 0.1~9.9s. When it be set to 0 that indicates no wait.
  • Page 34 User Manual ⚫ Display the offline storage data...

  • Page 35: Chapter 4 Illumination And Aiming

    User Manual Chapter 4 Illumination and Aiming Aiming There is a projecting device on the scanner that is used to project a special image when reading, which characterizes the center of the scene image taken by the scanner. When the scanner is used for shooting, the image is projected on the reading target, and the scanner aims at the reading target, which makes it easier to read the target.
  • Page 36 User Manual...

  • Page 37: Power On And Read Successfully Prompt Tone

    User Manual Power on and Read Successfully Prompt Tone The scanner can output PWM signal to drive the external buzzer circuit to make sound. The sound signal can be turned off or allowed to be output by setting. The corresponding settings can be made through the following setting codes.
  • Page 38 User Manual Low volume...
  • Page 39 User Manual Buzzer Tone ⚫ High tone Medium tone * Low tone...

  • Page 40: Chapter 5 Symbologies

    User Manual Chapter 5 Symbologies Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner. Barcode General Settings 1D Barcode Switch Enable All 1D Barcode...
  • Page 41 User Manual Enable All Barcode Disable All Barcode...

  • Page 42: 1D Barcode Setting

    User Manual 1D Barcode Setting EAN-8 Enable/Disable EAN-8 Enable* Disable Enable/Disable 2/5-bit Add-On code The 2/5-digit Add-On code refers to the 2/5-digit digital barcode added after the ordinary barcode. Disable* Enable Convert EAN-8 to EAN-13 The result is converted to EAN-13, i.e. the barcode data of EAN-8 is filled with 5 bits of 0 before transmission.

  • Page 43: Enable/Disable Ean-13

    User Manual EAN-13 Enable/Disable EAN-13 Enable* Disable...

  • Page 44: Enable/Disable 2/5-Bit Add-On Code

    User Manual Enable/Disable 2/5-bit Add-On code The 2/5-digit Add-On code refers to the 2/5-digit digital barcode added after the ordinary barcode. Disable* Enable UPC-E Enable/Disable UPC-E Enable* Disable Transmit check character UPC-E barcode data is fixed to 8 characters, and the eighth character is the check bit, which is used to check the correctness of all 8 characters.

  • Page 45: Convert Upc-E To Upc-A

    User Manual Disable* Enable Convert UPC-E to UPC-A The chip can convert the decoding results of UPC-E type barcodes to UPC-A type barcodes according to standard algorithms. Enable Disable*...

  • Page 46: System Character Transmit

    User Manual System character transmit Enable* Disable Transmit system character and country code ("0" only for USA) UPC-E1 Enable* Not transmit preamble Transmit system character and country code (“0” only for USA) Enable/Disable 2/5 Add-On code The 2/5-digit Add-On code refers to the 2/5-digit digital barcode added after the ordinary barcode. Disable* Enable...

  • Page 47: Upc-A

    User Manual UPC-A Enable/Disable UPC-A Enable* Disable...

  • Page 48: Transmit Check Character

    User Manual Transmit check character UPC-A bar code data is fixed to 13 characters, and the 13th character is check bit, which is used to check the correctness of all 13 characters. Enable * Disable Enable/Disable 2/5-bit Add-On code The 2/5-digit Add-On code refers to the 2/5-digit digital barcode added after the ordinary barcode. Disable* Enable Transfer system character...

  • Page 49: Code 39

    User Manual Code 39 Enable/Disable Code 39 Enable* Disable Check character verification and transmit Code 39 barcode data does not contain a check character. If there is a check character, it is the last character of the data. A check character is a value calculated from all data to verify that the data is correct.
  • Page 50 User Manual Enable* Disable...

  • Page 51: Convert Code 39 To Code32

    User Manual Convert Code 39 to Code32 Enable Disable* Code 32 prefix Enable add prefix character "a" Disable* Code 93 Enable/Disable code 93 Enable* Disable Code 11 Enable/Disable code 11 Enable Disable*...
  • Page 52 User Manual Check Setting Code 11 barcode data does not contain the check digit. If there is a check digit, it can be the last one or two characters of the data. The check bit is the value calculated from all data to check whether the data is correct.

  • Page 53: Transmit Check Character

    User Manual Not check* 1-bit check 2-bit check Transmit check character Enable Disable* Code 128 Enable/Disable code 128 Enable* Disable Note: if this barcode is set to disable, the scanner will not be able to scan and switch the corresponding function settings. Code 128 <FNC4>...
  • Page 54 User Manual Disable* Enable...

  • Page 55: Codabar

    User Manual Codabar Enable/Disable Codabar Enable* Disable Start and stop characters Enable CLSI Disable CLSI* Enable this setting to remove the start and stop characters, and insert spaces after the first, fifth and tenth characters of the 14-character Codabar barcode. Enable NOTIS Disable NOTIS* Enable this parameter to remove the start and stop characters.
  • Page 56 User Manual Check Setting MSI barcode data does not contain the check digit. If there is a check digit, it can be the last one or two characters of the data. The check bit is the value calculated from all data to check whether the data is correct.

  • Page 57: Check Bit Algorithm

    User Manual Check bit algorithm 1 MSI MOD10/MOD10* 2 MSI MOD10/MOD11 Transmit check character Transmit check character Disable* Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable* Disable Check and transmit character Interleaved 2 of 5 barcode data does not contain the check digit. If there is a check digit, it can be the last one or two characters of the data.
  • Page 58 User Manual Not check* USS check OPCC check...

  • Page 59: Convert I 2 Of 5 To Ean-13

    User Manual Transmit check character: Transmit check character Disable* Convert I 2 of 5 to EAN-13 Convert I 2 of 5 to EAN-13 Disable* Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Disable* Check and transmit character Matrix 2 of 5 barcode data does not contain the check digit. If there is a check digit, it can be the last one or two characters of the data.
  • Page 60 User Manual Not check* Check Transmit check character Transmit check character Disable*...

  • Page 61: Industrial 2 Of 5

    User Manual Industrial 2 of 5 Enable/Disable Industrial 2 of 5 Enable Disable* Standard 25 Enable/Disable Standard 25 Enable Disable* ISSN Enable* Disable ISBN Enable Disable...

  • Page 62: Data Bit Setting

    User Manual Data bit setting Use 13 bits* Use 10 bits ISBT 128 Enable/Disable ISBT 128 Enable* Disable GS1 128 Enable/Disable GS1 128 Enable* Disable Gs1-128 emulation mode for UCC/EAN composite code Disable* Enable...

  • Page 63: Gs1 Databar

    User Manual GS1 DataBar Enable/Disable GS1 DataBar Enable* Disable Convert GS1 DataBar to UPC/EAN Convert DataBar to UPC/EAN Disable*...

  • Page 64: Gs1 Databar Limited

    User Manual GS1 DataBar Limited Enable/Disable GS1 DataBar Limited Enable Disable* GS1 DataBar Expanded Enable/Disable GS1 DataBar Expanded Enable Disable* 1D Barcode Anti-color Enable* Disable...

  • Page 65: 2D Barcode Setting

    User Manual 2D Barcode Setting PDF417 Enable/Disable PDF417 Enable* Disable Data Matrix Enable/Disable Data Matrix Enable* Disable Anti-color Enable* Disable Read Data Matrix Enable* Disable...
  • Page 66 User Manual...

  • Page 67: Enable/Disable Qr

    User Manual Enable/Disable QR Enable* Disable Enable/Disable Micro QR code (this setting is only valid when enable QR) Enable* Disable Anti-color Enable* Disable Aztec Enable* Disable...

  • Page 68: Anti-Color

    User Manual Anti-color Enable Disable*...

  • Page 69: Han Xin

    User Manual Han Xin Enable* Disable Anti-color Enable Disable*...

  • Page 70: Chapter 6 Barcode Input / Output Settings

    User Manual Chapter 6 Barcode Input / Output Settings Common suffix Add suffix LF Add suffix CR Add suffix LF+CR Add suffix TAB Barcode data case conversion *Disable case conversion Convert barcode data into upper case Convert barcode data into lower case Convert grouping character to space Disable* Enable...

  • Page 71: Replace The (-) To Tab In Dm Barcode

    User Manual Replace the (-) to TAB in DM barcode Disable* Enable...

  • Page 72: Read Udi Barcode

    User Manual Read UDI barcode Disable* Enable Read digital barcode only Enable Disable* Remove zero data at the beginning of barcode Disable* Enable Remove or reduce space Disable * Remove the spaces in barcode...
  • Page 73 User Manual Reduce multiple consecutive spaces to one space...

  • Page 74: Set The Barcode Length

    User Manual Set the barcode length Operand: 0x50 Data: 3 BYTE data param: Data0 Data1—These two data is the parameter of data. Note: The setting range must be that the minimum length is less than or equal to the maximum length, and the two parameters need to be sent at the same time.

  • Page 75: Skip The Number Of Characters Before Barcode Data

    User Manual Skip the number of characters before barcode data operand：0x59 data: *0: Do not skip barcode data / 1~31: skip the number of characters before barcode data *Not skip barcode data Skip 1 character before barcode data Skip 5 character before barcode data Skip the number of characters after barcode data Operand: 0x5A data: *0: Do not skip barcode data / 1~31: skip the number of characters after barcode data...

  • Page 76: Brazil Special Barcode Encryption Rule Settings

    User Manual 0x32 indicates cutting 49 data from the front. Disable Cut the first data Cut the top 5 data Brazil special barcode encryption rule settings OFF* Touch key switch settings（Only for models with touch keys） OFF*...

  • Page 77: Chapter 7 Scanner Settings

    User Manual Chapter 7 Scanner Settings Barcode Command Format Permanent Length Operand Host/Slave Data Checksum Command Length Operand Status Data 1 BYTE 1 BYTE 1 BYTE 1 BYTE 1 BYTE~250BYTE 1 BYTE Length operands + H/D + permanent command + data Operand The operand is the following command data Host/Slave...
  • Page 78 User Manual Set barcode Code 128 type Barcode Prefix Fixed prefix: +N+S- Operand The operand is the following command data Data Indicates parameter data carried by this command...

  • Page 79: General Settings (Default Hid Single Scan Mode)

    User Manual General settings (default HID single scan mode) Host mode (CDC, HID, BT, COM,HID-POS） Operand: 0x41 USB Virtual Virtual General Serial HID-POS Serial Port Keyboard Port Data 0x02 0x01 0x03 0x04 0x05 Set scanner interface mode Trigger mode (Single scanning, scanning continuously, auto sensing) Operand: 0x42 Button Trigger Light continuously...

  • Page 80: Decoding Timeout（0.1S~9S

    User Manual Decoding timeout（0.1s~9s） Operand: 0x44 0.1s 0.2s ..9.7s 9.8s 9.9s Data 0x01 0x02 ..0x61 0x62 0x63* When setting barcode reading, if the barcode is not read, it will stop reading the code time.

  • Page 81: Data Prefix

    User Manual Data prefix Operand: 0x52 Disable Custom Define Data0 0x00* 0x01~0xfd Data1 0x00 0x01~0xfd Note: 1. If the character set to be 0x20, you need to set the data = 0xFE. 2. If only one character is set, you need to set another to 0x00 Disable. Data suffix Operand: 0x45 Disable...

  • Page 82: Aiming Device (On/Off)

    User Manual Aiming device (ON/OFF) Operand: 0x46 Data 0x01* 0x00 Illumination light (ON/OFF) Operand: 0x47 Level 1 Level 2 ..Level 9 Level 10 Data 0x00 0x01 0x02 ..0x09 0x0A Data: When the level is 0, it is closed.

  • Page 83: Multi Code Quantity

    User Manual Multi code quantity Operand: 0x4B ..Data 0x00 0x02 0x03 ..0x06 0x07 Set whether to start scanning multiple barcode modes at the same time and set the number of scanning barcodes simultaneously. Baud rate of virtual serial port Operand: 0x48 115200 38400...
  • Page 84 User Manual Data 0x00 0x02 0x03 ..0x06 0x07 Set whether to start scanning multiple barcode modes at the same time and set the number of scanning barcodes simultaneously.

  • Page 85: Multi Code Sensitivity

    User Manual Multi code sensitivity Operand: 0x4C Level 1 ..Data 0x00 0x01 0x03 ..0x09 0x0A Note: the higher the level, the stronger the ability to decode the double code, but the corresponding time to decode the single code will be longer. Buzzer enables Operand: 0x4D Data...

  • Page 86: Sensitivity

    User Manual Variable Data 0x00~0x63 Data: 0x00 indicates that there is no Timeout Invalid. If there is a barcode, it can still output. 0x01 indicates the timeout of 100ms. 0x63 indicates the timeout 9.9s. Sensitivity Operand: 0x51 Normal Fast Ultra-Fast Data 0x00* 0x01...

  • Page 87: Center Aiming Decode Setting

    User Manual Center aiming decode setting Operand: 0x53 Enable Disable Data 0x01* 0x00 Insert characters into barcode data (up to 8 characters) Operand: 0x5C Data: Data0 ~ data1: the position of the inserted data in the barcode data Data2: data inserted in corresponding position (range: 0x01 ~ 0x7F) Note: Data0 ~ data1 Calculation method: data0 = (x/64) +0x20 data1 = (x%64) +0x20, where x is the position of the character to be inserted (range: 1 ~ 6143).
  • Page 88 User Manual Specific command format: Data0: specific command length, including command and command data Data1: specific command Data2 or data2 ~ data3: there are multiple command data setting commands in the specific command. Each specific command needs to be written according to the specific command format.
  • Page 89 User Manual ◼ Commands that support only barcodes Set F1~F12 (only analog key output is supported) Set the barcode content as follows: Name F1 Value 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x1 0x10 0x15 Users can directly write the appropriate data to generate the appropriate barcode, then scan the barcode can achieve the function of virtual key output.

  • Page 90: Set Control Character Output Mode

    User Manual Set control character output mode Operand： 0x6c data： 0： control character 0x01~0x1F send in characters（default） 2： control character 0x01~0x1F send with function key mode 0： mode 2： Screen scanning settings operand：0x6d data: 0: normal mode（default） 1：screen scanning mode Multiple key switch settings(some models) operand：0x6e data：0：shield multiple key functions(default)

  • Page 91: Udi Barcode Rules

    User Manual 1：enable multiple key functions UDI Barcode rules operand：0x6f data：0：disable(default) 1：enable Other parameter settings operand：0x70 data： data0： user specific parameters data1：user specific parameter variables For example： Set the crossbar(-) in DM code to be replaced with carriage return Data0 0x01 Data1 0x00(disable)

  • Page 92: Set Bluetooth Barcode Data Transmission Mode

    User Manual default) 6.Set the automatic storage after Bluetooth is disconnected, and set the automatic upload enable switch after connecting. Data0 0X06 Data1 0X00(disable-default) 0X01（enable） Set Bluetooth barcode data transmission mode operand：0x71 data：0：HID mode(default) 1：GATT mode Set vibrator enable operand：0x72 data：0：disable 1：enable Set up sensing hardware...
  • Page 93 User Manual 0x05 Keyboard b and B 0x06 Keyboard c and C 0x07 Keyboard d and D 0x08 Keyboard e and E 0x09 Keyboard f and F 0x0A Keyboard g and G 0x0B Keyboard h and H 0x0C Keyboard i and I 0x0D Keyboard j and J 0x0E...
  • Page 94 User Manual 0x31 Keyboard \ and | 0x32 Keyboard Non-US # and ~ 0x33 Keyboard ; and : 0x34 Keyboard ' and " 0x35 Keyboard Grave Accent and Tilde 0x36 Keyboard, and < 0x37 Keyboard . and > 0x38 Keyboard / and ? 0x39 Keyboard Caps Lock 0x3A...
  • Page 95 User Manual 0x5D Keypad 5 0x5E Keypad 6 and Right Arrow 0x5F Keypad 7 and Home 0x60 Keypad 8 and Up Arrow 0x61 Keypad 9 and PageUp 0x62 Keypad 0 and Insert 0x63 Keypad . and Delete 0x64 Keyboard Non-US \ and | 0x65 Keyboard Application 0x66...

  • Page 96: Obtain Barcode Data In The Specified Range

    User Manual 0x89 Keyboard International3 0x8A Keyboard International4 0x8B Keyboard International5 0x8C Keyboard International6 0x8D Keyboard International7 0x8E Keyboard International8 0x8F Keyboard International9 0x90 Keyboard LANG1 0x91 Keyboard LANG2 0x92 Keyboard LANG3 0x93 Keyboard LANG4 0x94 Keyboard LANG5 0x95 Keyboard LANG6 0x96 Keyboard LANG7 0x97...
  • Page 97 User Manual...

  • Page 98: Appendix Ⅰ Barcode Enabling Settings

    User Manual Appendix Ⅰ Barcode Enabling Settings Operand: 0x40 Data: 2BYTE data Set the barcode enabling parameter, DATA 0 is the barcode parameter, DATA 1 is the barcode parameter variable. The following is the parameter default value. 0 is OFF, 1 is ON Barcode Parameter Parameter Barcode Type...
  • Page 99 User Manual Discrete 2 of 5 0x10 Disable Chinese 2 of 5 0x11 Disable Korean 3 of 5 0x12 Disable Matrix 2 of 5 0x13 Disable Codabar 0x14 Enable 0x15 Disable US Postnet 0x16 Enable US Planet 0x17 Enable UK Postal 0x18 Enable Japan Postal...
  • Page 100 User Manual 0x27 Maxicode Enable 0x28 QR Code Enable 0x29 MicroQR Enable 0x2A Aztec Enable Han Xin 0x2B Enable Convert UPC-E to A 0x2C Disable Convert UPC-E1 to A 0x2D Enable EAN-8/JAN-8 Extend 0x2E Enable UCC Coupon Extended 0x2F Disable Code ISBT Concatenation 0x30...

  • Page 101: Appendix Ⅱ Data Code Prefix And Suffix

    User Manual Appendix Ⅱ Data code prefix and suffix E.g. Adding prefixes “@!”, steps: Scan the setting barcode【open prefix 1】--> Scan the setting barcode【@】 Scan the setting barcode【open prefix 2】--> Scan the setting barcode【!】 The detailed barcode is set as follows: Open prefix Clear prefix 1 Open prefix...
  • Page 102 User Manual ■ Prefix and Suffix " &...
  • Page 103 User Manual...
  • Page 104 User Manual...
  • Page 105 User Manual < >...
  • Page 106 User Manual...
  • Page 107 User Manual...
  • Page 108 User Manual...
  • Page 109 User Manual...
  • Page 110 User Manual...
  • Page 111 User Manual...
  • Page 112 User Manual...
  • Page 113 User Manual...

  • Page 114: Appendix Ⅲ Ascii Code Table

    User Manual Appendix Ⅲ ASCII Code Table Hexadecimal Decimal Character NUL （Null char.） SOH （Start of Header） STX （Start of Text） ETX （End of Text） EOT （End of Transmission) ENQ （Enquiry） ACK （Acknowledgment） BEL （Bell） BS （Backspace） HT （Horizontal Tab） LF （Line Feed）...
  • Page 115 User Manual ETB （End of Trans. Block） CAN （Cancel） EM （End of Medium） SUB （Substitute） ESC （Escape） FS （File Separator） GS （Group Separator） RS （Request to Send） US （Unit Separator） SP （Space）...
  • Page 116 User Manual ! （Exclamation Mark） " （Double Quote） # （Number Sign） $ （Dollar Sign） % （Percent） & （Ampersand） ` （Single Quote） ( （Right / Closing Parenthesis） ) （Right / Closing Parenthesis） * （Asterisk） + （Plus） , （Comma） - （Minus / Dash） .
  • Page 117 User Manual ：（Colon） ；（Semi-colon） < （Less Than） = （Equal Sign） > （Greater Than） ? （Question Mark） @ （AT Symbol）...
  • Page 118 User Manual [ （Left / Opening Bracket） \ （Back Slash） ] （Right / Closing Bracket）...
  • Page 119 User Manual ^ （Caret / Circumflex） _ （Underscore） ' （Grave Accent）...
  • Page 120 User Manual { （Left/ Opening Brace） | （Vertical Bar） } （Right/Closing Brace） ~ （Tilde） DEL （Delete）...
